Tektronix 2216 User Manual

Tektronix 2216 User Manual

Four channel digital storage & analog oscilloscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

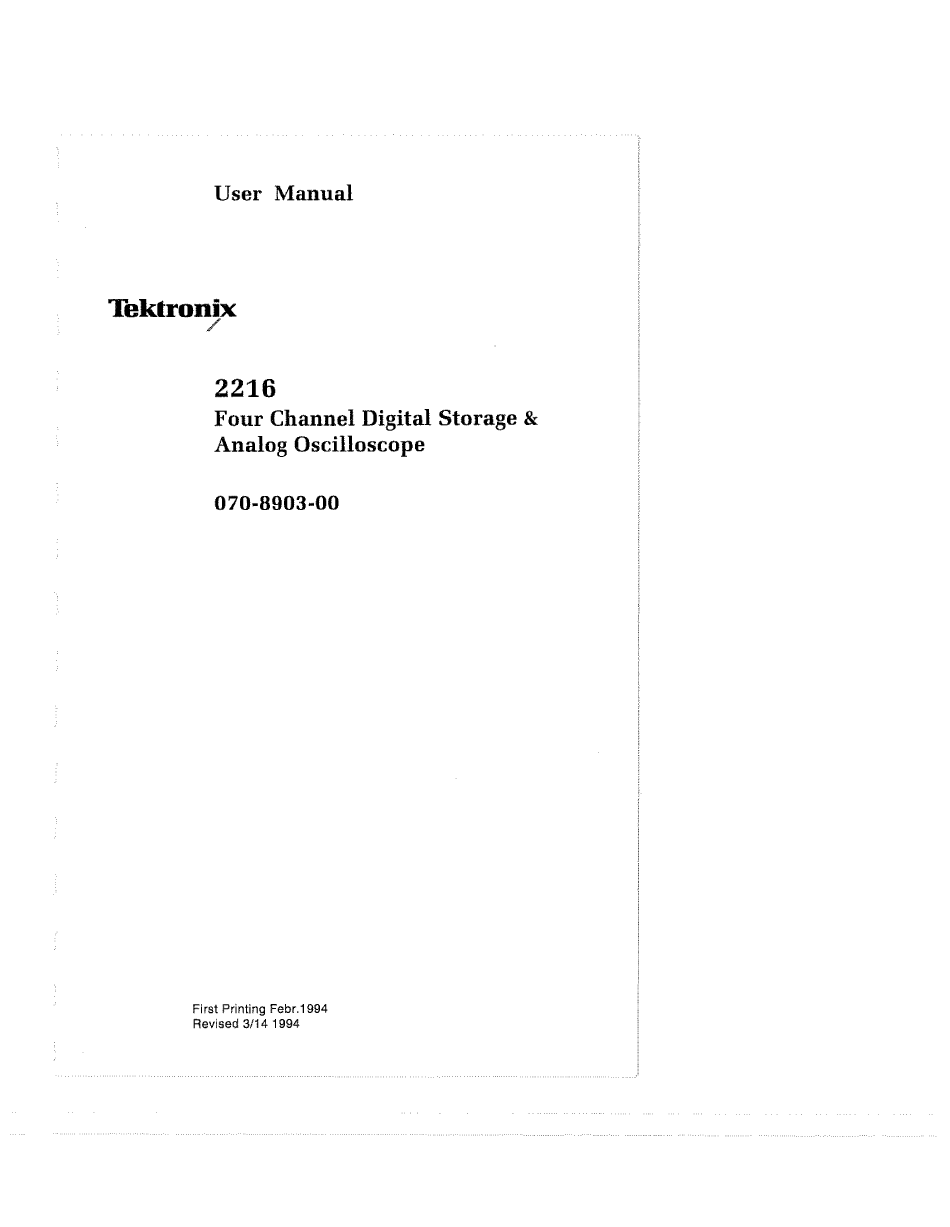

User Manual
T e k tro n ix
2216
Four Channel Digital Storage &
Analog Oscilloscope
0 7 0
8903-00
-
First Printing Febr.1994
Revised 3/14 1994

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2216 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix 2216

Summary of Contents for Tektronix 2216

  • Page 1 User Manual T e k tro n ix 2216 Four Channel Digital Storage & Analog Oscilloscope 0 7 0 8903-00 First Printing Febr.1994 Revised 3/14 1994...
  • Page 2 United States are assigned a two digit alpha code to identify the country of manufacture (e.g., J3 for Japan, HK for Hong Kong, IL for Israel, etc.). Tektronix, Inc. , P.O. Box 500, Beaverton, OR 97077. Printed and produced in The Netherlands. prod­...
  • Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if shipment is to a location within the country in which the Tektronix service center is located.
  • Page 4 8444 AB Heerenveen The Netherlands declare under sole responsibility that the 2216 Four Channel Digitizing Oscilloscope meets the intent of Directive 89/336/EEC for Electromagnetic Compatibility. Compliance was demonstrated to the following specifications as listed in the official Journal of the European Communities:...
  • Page 5 The next three chapters provide information and instructions to get you started making non-storage and storage measurements. In the last five chapters of this section, the special features of the 2216 w ill be discussed, like using Automated M easurements, References, Cursors, Custom Units, and Making Hardcopies. □...
  • Page 6 □ The In D etail section provides further detailed informa­ tion about the functions and locations of the 2216 con­ trols, connectors, indicators and menus on the front and rear panel. Also included in this section are chapters about the CRT Readout system, Probes, and Maintenance.

  • Page 7: Table Of Contents

    Setup Utility Menu ... 1-18 Cursor Feature..........1-20 Cursor Position........1-20 SELECT Sw itch............1-21 Cursors Menu ........1-21 CRT Readout......1-22 Flardcopy Interface........1-23 Options ..........1-23 Standard Accessories........1-23 Certification........... 1-23 Initial Setup..........1-24 Probe Compensation ........1-25 2216 User Manual...
  • Page 8 Making Measurements....... 1-27 Using X-Y Display Mode........1-33 Using Single Sweep Operation,......1-35 Observing Aliases........1-41 Using Automated Measurements ....1-43 Using References......1-51 Using Cursors ....1-57 Using Custom Units......1-61 Making Hardcopies ..1-67 At A Glance Overview........
  • Page 9 Setup Functions and Menus ... 3-73 UTILITY Menu Switch......3-74 SAVE/RECALL Menu Switch........3-84 Cursors and Cursor Menus..... 3-87 CURSORS/MENU Switch......3-88 General Purpose Knob .... 3-96 SELECT Switch........3-96 SHIFT Sw itch..... 3-96 Rear P an el............3-97 2216 User Manual...
  • Page 10 Appendices Appendix A: Options & Accessories ....Standard Accessories ....Options Options Al. - A5 International Power Cords ..A-3 Warranty -Hus Service O ptions....Option 3R Rackmounted Instrument .......A-3 Option 0 2 ..... Option 1 M ....... Option 10 (GPIB)........Option 12 (RS-232-C)........

  • Page 11: List Of Illustrations

    1-59 Figure 1-33: 2216 Define Custom Unit M enu.... 1-61 Figure 1-34: 2216 Define Custom Unit Menu (A and B value line)..1-63 Figure 1-35: 2216 Define Custom Unit Menu (unit name line) ..1-64 Figure 1-37: 2216 Power Measurement Example.......
  • Page 12 Figure 3-12: 2216 Slow Display Mode M en u ......3-41 Figure 3-13: 2216 Limit Test Setup M enu........3-42 Figure 3-14: 2216 Storage Functions and Menu Switches ...... 3-43 Figure 3-15: 2216 Measurements M enu......3-44 Figure 3-16: 2216 Select Measurement M en u ......

  • Page 13: Figure I: 2216

    Figure 3-35: 2216 Hardcopy Layout M enu......... 3-70 Figure 3-36: 2216 Hardcopy Layout Edit Note Menu....3-71 Figure 3-37: 2216 Storage Functions and Menu Switches ..3-73 Figure 3-38: 2216 Setup Utility M enu.... 3-74 Figure 3-39: 2216 Setup Utility Configuration Menu....
  • Page 14 Contents...

  • Page 15: Product Overview

    Product Overview Your Tektronix 2216 oscilloscope is a combination digital storage & analog (non-storage), four-channel oscilloscope with a Parallel Printer Communication Interface (Centronics ® compatible). The 2216 addresses the needs of applications with the following features: □ Digital Storage & Analog Oscilloscope □...

  • Page 16: Safety

    Safety Please take a moment to review these safety precautions. We provide them for your protection and to prevent damage to the 2216 Oscillo­ scope. This safety information applies to all operators and service per­ sonnel. WARNING To avoid personal injury or damage to the 2216, do not apply...
  • Page 17 Specific Precautions Observe all these precautions to ensure your personal safety and to prevent damage to the 2216 or to the equipment connected to it. Power Source This product is intended to operate from a power source that will not apply more than 250 V rms between the supply conductors or be­...
  • Page 18 Use the Proper Power Cord Use only the power cord and connector specified for your product. Use only a power cord that is in good condition. Use the Proper Fuse To avoid fire hazard, use only the fuse of the correct type, voltage rating and current rating specified on the back of your instrument and in the Options and Accessories section.
  • Page 19 Avertissements et precautions a respecter sent annotes au long de ce manuel h cbaque fois que l'utilisation du 2216 l'exige. II est & noter que ceux- qui peuvent n.e pas figurer dans cette rubrique de rappel.
  • Page 20 Source d'alimentation - L'appareil est congu pour fouctionner a partir d'une source d'alimentation maximale de 250 V efficace entre les conducteurs d'alimentation ou entre chaque conductenr et la terre. Pour utiliser l’appareil en toute s^curitd, une connexion & 1 a masse, re a lis t au moyen d’un conducteur prevu dans le cordon d’alimentation, est indispensable.

  • Page 21: Start Up

    Start Up Before you use the 2216 Oscilloscope, refer to the Safety part of this chapter for power source, grounding, and other safety considera­ tions. Installation Procedure Step 1. Be sure you have the appropriate operating environment. Specifications for temperature, relative humidity, altitude, vibrations and emissions are included in the Appendix: Specifications at the rear of this manual.
  • Page 22 Step 4. Connect the proper power cord from the rear-panel power connector to the power system (see Figure ii). Figure iii: Partial 2216 Front Panel Controls Used at Start-up Step 5. Press the POWER button. Observe that the POWER-ON indicator, located above the button, comes on (see Figure iii).

  • Page 23: Tutorial Overview

    This tutorial will try to help you making measurements with the 2216, After a chapter with a description of the 2216, a number of chap­ ters are presented in a sequence to perform all kinds of measure­ ments, both in non-store and in store mode.

  • Page 24: Product Description

    The 2216 is menu operated blended with the traditional horizon­ tal, vertical, and triggering knobs. The 16KB record length in the standard 2216 can be extended to 128KB with Option 1M implemented. The 2216 can be made a programmable oscilloscope with Option 10 (GPIB) and/or Option 12 (RS232) implemented.

  • Page 25: Display System

    — Figure 1-1: 2216 Power and Screen Section Display System The 2216 display shows signals, crt readouts, measurement re- suits, and menus. In the SCREEN section of the front panel the display controls are situated (see Figure 1-1}. The POWER switch turns the power ON or OFF. At power-on, the ’ON’...

  • Page 26: Vertical System

    The five bezel buttons can be used to make selections in a menu or to select a sub-menu. Vertical System The 2216 oscilloscope has four fully featured vertical channels (see Figure 1-2) with calibrated deflection factors (VOLTS/DIV) from. 1 mV to 10 V per division. All vertical channels can be se­...
  • Page 27 CH 3+4 CH 3 CH 4 CHOP Using CH 1+2 and CH 3+4 simultaneously, turns the 2216 into a dual channel differential oscilloscope. X-Y-Mode In non-store mode, CH 1 or CH1+2 can be operated as the X-axis and CH 2, CH 3, CH 4, and CH3+4 as the Y-axis (see also page 1- 33).

  • Page 28: Horizontal System

    Product Description Horizontal System The horizontal system of the 2216 (see Figure 1-3) operates either in the analog way (non-store mode) or as a digital acquisition system (store mode). Horizontal scaling is expressed in seconds per division. Figure 1-3: 2216 Horizontal Systen...

  • Page 29: Figure 1-4: 2216

    Alternate OS OFF Fit To Scr Figure 1-4: 2216 Magnify Menu Pressing successively the SHIFT button and the MAG / MENU button shows the Magnify Menu (see Figure 1-4). Selections from the menu can be made with the bezel buttons, as indicated in the readout: Selecting Alternate ON will alternately display an unmagni­...

  • Page 30: Triggering System

    Product Description Triggering System The triggering system of the 2216 is fully operated by front panel controls in non-store mode (see Figure 1-5), except if the AUX input is selected for TRIGGER in the Setup Configuration Menu. In store mode, the additional pre-trigger selection is defined in the Trigger Position Menu’...
  • Page 31 Product Description In the TRIGGER section of the 2216, the following trigger settings can be established: - Trigger SOURCE, which determines the signal-source the trig­ ger signal is derived from. You can select the following signal- sources: A signal from one of the input channels (CH 1, 2, 3, 4) A signal alternately obtained from GH 1, 2, 3, 4, CH 1+2 or CH 3+4 (VERT) when the vertical mode is set to alter­...
  • Page 32 Product Description DC coupling. The trigger source signal is dc-coupled to the trigger circuit, Low Frequent Rejection coupling [LF REJ), L ow frequency signals (below 30 kHz) from the trigger source are attenu­ ated before being sent to the trigger circuit. High Frequent Rejection coupling (HF REJ), High fre­...

  • Page 33: Storage System Features

    SHIFT button and successively the required menu button. * Digitize Function & Storage Functions Menu The 2216 can be operated as an analog or a digitizing oscillo­ scope. Pressing the DIGITIZE/FUNCTIONS button toggles the 2216 between the analog and storage inode.In store mode the STORE LED lights, and analog data is converted into digital form by the acquisition system.

  • Page 34: Figure 1-7: 2216

    — The Storage Function Slow Display Mode Menu, to select a ROLL or SCAN display mode at slow acquisition rates. — In Average acquisition mode setting, the 2216 calculates an averaged waveform. Waveforms are the result from each new acquisition and the previously averaged waveform.

  • Page 35: • Run/Stop Acquisition & Measurements Menu

    Pressing the RUN/STOP / MEASURE button stops the acquisition. Pressing the button again causes the acquisition to continue. Automated measurements on starage waveforms can be performed by the 2216, as defined in the Measurement Menu and sub-menus {see Figure 1-8). Pressing the SHIFT button and the RUN/STOP/MEASURE button successively shows the Measurement Menu (see also: Using Auto­...

  • Page 36: • References & References Menu

    Product Description • References & References Menu The 2216 can store the active waveforms as a reference in memory and can also display references from that memory to be compared with the currently acquired waveform(s). References can be removed from the screen by pressing the CH/REF OFF button.

  • Page 37: • Hardcopy & Hardcopy Menu

    Menu and sub-menus. Pressing the HARDCOPY/MENU button initiates a printer/plotter, connected to the 2216, to print or plot a hardcopy as defined in the Hardcopy Menu, During hardcopy, a 'PRN' message is shown in the readout. Pressing the HARDCOPY/MENU switch again stops the print action.
  • Page 38 Hardcopy Status Mode Menu. If this mode is selected, pressing the HARDCOPY/MENU button, a hardcopy will be made of all 2216 settings. Pressing the Format button, the Hardcopy Format Menu is selected. In the hardcopy Format Menu, the following for­...

  • Page 39: Setup Controls

    □ Save/Recall Menu Figure 1-11: 2216 Setup and Cursor Section * Setup AUTO Feature The 2216 has a Setup AUTO feature implemented to get a display of an unknown signal by pressing just one front panel button. AUTO Pressing the Setup...

  • Page 40: Setup Save/Recall Menu

    In the Setup Save/Recall Menu, the Factory Default Setup can be selected for recall. Five ‘User Settable Setups’ can be selected for save, recall, and editing of the label. If the 2216 is switched off, the settings of the momentary instrument setup are saved and will be used at start up.

  • Page 41: Figure 1-13: 2216

    More Comp 3 of 3 Figure 1-13: 2216 Setup Utility Menu - Press the 'Status' bezel button to show the Status Display, The display shows the instrument configuration , - Press the 'Progr GPIB’ button on menu page 2 to show the Programmable GPIB Menu.

  • Page 42: Cursor Feature

    Product Description Cursor Feature General The 2216 can make more accurate voltage, time, frequency or 'custom unit' measurements on waveforms by using the cursors. Figure 1-14; 2216 Cursors Section Pressing the CURSORS/ MENU switch will activate the cursor function as selected in the Cursors Menu. Pressing the CUR- SORS/MENU button again will switch off the cursor function.

  • Page 43: Select Switch

    Define Oust OFF ON DELTA VOLT Figure 1-15: 2216 Cursors Menu SELECT Switch Pressing the SELECT button, the other cursor is selected if the ’DELTA* or 'TRACK' cursor function is selected. Cursors Menu Pressing the SHIFT and the CURSORS/MENU switch succes­...

  • Page 44: Crt Readout

    Function, the User Cal in the Setup Utility Menu should be performed. CRT Readout The CRT readout of the 2216 is intended to be of help to the user to provide extra information. The settings reported to the user in the crt readout display are:...

  • Page 45: Options

    Product Description Hardcopy Interface The 2216 oscilloscope has a parallel printer/plotter interface con­ nector (Centronics© compatible) on the rear panel. The interface is provided to make hardcopies via a printer /plotter with a Centronics compatible interface. Options The following options will become available for the 2216: GPIB (IEEE 488.2) communication interface (2216 Option 10).

  • Page 46: Initial Setup

    Initial Setup Initial Setup The following procedure will help you to set up and operate the instrument to obtain the most commonly used oscilloscope dis­ plays. Step 1. Verify that the POWER switch is OFF (switch is in the OUT position). Step 2.

  • Page 47: Probe Compensation

    Step 11, Connect the probe tip of CH 4 to the PROBE ADJUST connector and the probe ground lead to scope ground. Step 12. Repeat step 4 through 6. Step 13. Mark all four probes per vertical channel. 2216 User Manual 1 - 2 5...

  • Page 48: Figure 1-16: Probe Compensation

    Probe Compensation CORRECT (FIAT) tWER- COMPENSATED (OVERSHOOT) UNDER­ COMPENSATED (ROLLOFF) Figure 1-16: Probe Compensation NOTE Refer to instruction manual supplied with the probe for more complete information on the probe accessories and probe compensation. Tutorial 1 ~ 26...

  • Page 49: Making Measurements

    Making Measurements This chapter intends to help yon make measurements with the 2216 oscilloscope in Non-Store mode as well in Store mode. The follow­ ing topics will be discussed: Unmagnified Sweep Displays □ Using (page 1-28) Magnified (Alternate) Sweep Displays □...

  • Page 50: Figure 1-17: Example Of A Waveform Display

    (see Figure 1-17): Figure 1-17: Example of a Waveform Display Step 1. Switch the 2216 on, press CH 1’ button to on, and obtain a display on CH 1, NOTE You may use 'CH 2 \ ’CH 3' or 'CH 4' or a combination of channels as well.
  • Page 51 (With 512 points recordlength record mode changes from 20 ms to 2 ps). - If the 2216 clock source in the Clock Source menu (sub-menu of the Functions Menu) is set to AUX IN RECORD. A full record of the acquired waveform is updated each time a trigger event is recognized.
  • Page 52 With the SEC/DIV is set to slower than 50 ms/div (with 512 points recordlength 20 ms). If the 2216 clock source in the Clock Source menu (sub-menu of the Storage Functions Menu) is set to AUX SLOW. In ROLL and SCAN mode, signals are continuously acquired and displayed.
  • Page 53 You can use the following procedure to display the magnified signal (see Figure 1-18): Step 1. Switch the 2216 on. Step 2. Set the SEC/DIV switch for a sweep speed that permits you to select the area to be magnified.
  • Page 54 Making Measurements may change the SEC/DIV switch setting as required. Step 4. Press the MAG/MENU button to activate the Magnify function. Step 5. Press the SHIFT and the MAG/MENU button succes­ sively to obtain the Magnify Menu on the screen. Select with the bezel buttons the magnification factor: FIT TO SCREEN NOTE...

  • Page 55: Using X-Y Display Mode

    Using X-Y Display Mode The 2216 oscilloscope can be used to produce X-Y displays in Non- Store as well as in. Store mode (see also page 3-15 through 3-16). X-Y Non-Store Mode Use the following procedure to display signals in the X-Y non-store mode: Step 1.
  • Page 56 Using XY Display Mode X-Y Store Mode For X-Y measurement displays in store mode, use the following procedure: Step 1. Press the DIGITIZE button to the on position (STORE LED lights). Step 2. Press the SHIFT and the X-Y button successively to show the Digitize XY Menu.

  • Page 57: Using Single Sweep Operation

    Using Single Sweep Operation The 2216 can. be used in SINGLE sweep display in all display modes: □ Single sweep in Non-Store mode □ Single sweep Store RECORD Store mode □ Single sweep Store ROLL/SCAN mode Single Sweep Non-Store Mode Measurements Use the following procedure to display one single sweep in the SIN­...
  • Page 58 RESET button is pressed again to rearm the sweep circuit. Single Sweep Store Mode The 2216 SINGLE sweep store mode can be operated in RECORD mode or ROLL/SCAN mode. NOTE With the 2216 in ROLL/SCAN mode, triggers are disabled in normal operation, but not in SINGLE Sweep.
  • Page 59 Using Single Sweep Operation Single Sweep in RECORD Mode With the 2216 is in SINGLE Sweep Record mode, the last waveform acquired remains displayed, When you press the RESET button, the trigger circuit is rearmed to accept a new trigger event. When that trigger event occurs, the full record is acquired and the display is updated.
  • Page 60 Single Sweep in ROLL/SCAN Mode In SINGLE sweep ROLL/SCAN mode, the 2216 display continues to roll although the trigger circuit is not armed. Press the RESET button to arm the trigger circuit. Acquisition starts, and the pretrigger portion of the waveform record is filled.
  • Page 61 If no trigger signal is present, and the BESET utton is pressed, the READY indicator LED should illumi­ nate to indicate that the trigger circuit is set and ready to update the display when a trigger is re­ ceived. 2216 User Manual 1 - 3 9...
  • Page 62 Using Single Sweep Operation Step 7. When the acquisition system has been triggered and the display is updated, the sweep logic circuit is locked out. Another acquisition cannot be generated until the single sweep RESET button is pressed again to set the sweep to the READY state.

  • Page 63: Observing Aliases

    Figure 1-24: Aliasing In digital sampling, a more accurate reproduction of a signal is pos­ sible when more samples of the signal are obtained. The 2216 sam­ ples 4000 times across the 10 horizontal divisions of the graticule. A sine wave spread across the full screen will be sampled 4000 times.
  • Page 64 The maximum SEC/DIV setting available on the 2216 in store mode is 20 }is per division (2 ps with a record- length of 512 points).

  • Page 65: Using Automated Measurements

    There are various ways to measure properties of waveforms in store mode. You can use graticule, cursor, or automatic measurements. Automatic measurements are generally more accurate than, for ex­ ample, counting graticule divisions. During operation, the 2216 os- cilloscope will continuously update and display these measure­ ments.
  • Page 66 Using Automated Measurements Table 1-1: Measurement Definitions Name Definition dV * Area Voltage over time measurement. The area over the entire waveform record or gated region, in volt-seconds. Area measured above ground is positive; area below ground is negative. Cycle Area Voltage over time measurement.
  • Page 67 J X P Voltage measurement. The True Root Mean Square voltage over the entire waveform, or the gated region. Power Power measurement. The arithmic mean over the product of both waveforms, or the gated region. 2216 User Manual 1 -45...

  • Page 68: Figure 1-19: Storage Section

    HARDCOPY G f r REFS '-MENU \ / r n T ir > Front Panel Figure 1-19: Storage Section of the 2216 Use the following procedure to STOP an acquisition in Record and in Roll /Scan) mode: Step 1. Acquire a waveform.

  • Page 69: Figure 1-20: 2216

    Measurement Menu (see Figure 1-20). Measurement on CHI Gating Select Remove Figure 1-20: 2216 Measurement Menu Step 2, Define with the ’Gating* bezel button if you want to meas­ ure the complete waveform or a gated region of the wave­ form.
  • Page 70 Power Menu S of 5 Figure 1-21 a, b, c, d, e: 2216 Select Measurement Menu Selecting a Measurement Unit You need to define the vertical unit of measure if a unit other than Volts must be applied. The following procedure can be used to de­...

  • Page 71: Figure 1-22: 2216

    Selecting a Measurement Reference Level You may need to define a mid reference level in the 2216 for a waveform to be measured at a different mid reference level than the default level.

  • Page 72: Figure L.-22A: Middle Reference Levels Influence On A Measurement

    -1.23E+12 V Previous Menu Figure 1-23: 2216 Set Reference Level Menu Step 2. Press the 'Setup Ref Level’ bezel button, to display the Set Measurement Reference Level menu. Step 3. Press the 'li' bezel button to select the menu line.

  • Page 73: Using References

    □ Positioning a reference on the screen via the position controls and the Refs Position Menu (Figure 1-30). REF3 200mV SOOps More REF2 REF3 REFS REF 11 1 of 4 Figure 1-25: 2216 Reference Readout Menu Menu: Save to "REF1" R efs Save Position CH 2 Dispiay DeSete Rename Mode...
  • Page 74 Using References Displaying a Reference To display one or more stored reference-waveform(s), use the fol­ lowing procedure: Step 1. Press the REFS/MENU button to display the References Readout (see Figure 1-25). Step 2. Select the reference(s) to be displayed on the screen with the bezel button(s) from the menu.
  • Page 75 A new reference waveform is saved each time the SAVE button is pressed, until the reference memory is full. Reference waveforms remain saved in a battery-backuped memory when the 2216 is turned off. Deleting a Reference To delete a reference from memory via the Reference Menu, use the following procedure: Step 1.

  • Page 76: Figure 1-27: 2216

    Delete from memory: REF2 200mV SOOps Previous Next Delete Previous Menu Figure 1-27: 2216 Delete Reference from Memory Menu Renaming a Reference Names of references can be changed in the Rename Reference Menu (see Figure 1-28). Rename Reference: 3EF1 200mV 10ms Previous...

  • Page 77: Figure 1-29: 2216

    Previous Position Char Char Menu Figure 1-29: 2216 References Edit Name Menu Step 7. Press the Insert' bezel button to confirm the insertion of the new selected character in the reference name. Step 8. Press the 'Previous Menu’ bezel button to go back to the Reference Menu or press 'CLEAR MENU’...
  • Page 78 Using References Step 2, Press the 'Position Mode' bezel button to display the 'REFS Position Mode Menu Step 3. Press the ’HLock’ bezel button to select the 'Horizontal Lock Menu'. Step 4. Select the NONE, REFS or ALL position, or press the 'Can­ cel' button to cancel the selected position and return to the Position Mode Menu, NOTE...

  • Page 79: Using Cursors

    Cursors □ Defining Cursors (page 1-59) Cursors Cursor Types The 2216 has basically the following cursor types: VOLTAGE cursors (horizontal bars) measure vertical parameters (typically volts). TIME cursors (vertical bars) measure horizontal parameters (typically time or frequency). PAIRED cursors are TIME cursors, but the voltage difference between tbe crossing points of the cursors and the active wave­...
  • Page 80 Using Cursors ~ In DELTA mode, either cursor (dashed line} is movable, using the GPK control, and the other cursor (solid line) is fixed. The distance between the cursors is displayed in the readout. In TRACK mode, both cursors are dashed lines. Both cursors can be moved with the GPK control an equal amount until the limit of either one is reached.

  • Page 81: Figure 1-31: 2216

    Define Cursor Cursor Next selectable Menu, Function Unit Custom. Mode Action, Unite or Values Menu Menu Unit Menu Menu Figure 1-31: 2216 Cursors Menu (VOLT) Cursors Menu Scroti Function Unit Define Mode Gust OFF ON DEUM TIME Cursor Cursor Cursor...
  • Page 82 Use the following procedure to define cursors: Step 1, Press the SHIFT and CURSORS / MENU buttons succes­ sively to display the Cursors Menu (see Figure 1-31), Step 2. Press the 'Function' bezel button to select the Cursor Function Menu. Step 3.

  • Page 83: Using Custom Units

    Using Custom Units The 2216 can. do a calculation on a "value" that is displayed as a measurement result. This calculation is called "custom unit" and can be useful to simplify understanding the measurement result of cur­ sor measurements or automated measurements.
  • Page 84 Using Custom Units Fomula Y = A * VI +B and fomula Y = A * (Vl +B) are intended to be used with linear sensors. Formula Y = A * 1 0 log (VI / B) can be used in applications where levels are compared to a reference level.

  • Page 85: Figure 1-34: 2216 Define Custom Unit Menu (A And B Value Line)

    Exponent Previous [ -1.23 +1 } Menu Figure 1-34: 2216 Define Custom Unit Menu (A and B Value line) Step 9, Press the 'Mantissa' bezel button and select with the GPK control the mantissa value to be applied. Step 10. Press the 'Exponent bezel button and select with the GPK control the exponent to be applied.
  • Page 86 Y = A 4 VI +B A value: -1 .23 E +12 B value: -2.50 E 0 "R P M " unit name: Select Char Previous Position | R 1 Menu Figure 1-35: 2216 Define Custom Unit Menu (Unit name line) Tutorial 1 - 64...
  • Page 87 You can use a Tektronix Current Probe in this application, for exam­ ple a P6021 with a current probe amplifier (Tektronix type 134), to measure the current (Id) through the BUT, Using a P6021, the output sensitivity of the current probe amplifier (Tektronix Current Probe Amplifier typel34) is 50 mV/DIV.
  • Page 88 Using Custom Units The power dissipation of the DUT is: P = VI * Id = VI * 0.2 V , CH.2 = 0.2 VI * V The resulting power measurement unit is V2 (square volts] In order to display the power consumption correctly in Watts, de­ fine the custom unit in the Custom Unit Menu, You can use the formula: Y = A * VI + B for conversion.

  • Page 89: Making Hardcopies

    2216 Parallel Printer/ Plotter Interface connector on the rear panel. A 2216 Option 10 (GPIB) and 2216 Option 12 (RS232) may also use the GPIB Interface connector or the Serial Communication Interface (RS232) connector as the hardcopy output.
  • Page 90 Format Port Setup RECORD TH1NKJET CENTR Layout Figure 1-38: 2216 Hardcopy Menu Select and define respectively the Hardcopy Mode Menu, the Hard­ copy Format Menu, the Hardcopy Port Menu, and the Hardcopy Setup Layout Menu, Tutorial 1 - 6 8...
  • Page 91 Record Mode Menu (Figure l-39b) or resp. the Hardcopy Chart Mode Menu (Figure l-39e). Hardcopy Rec. Mode Menu SCREEN FULL BETWEEN Previous COPY RECORD CURSORS Menu Figure l-39b: 2216 Hardcopy Record Mode Menu 2216 User Manual 1 - 6 9...
  • Page 92 [ 0.1 s ] Mena Figure l-39c: 2216 Hardcopy CHART Mode Menu In CHART mode, a chart-recorder is emulated by the 2216 printer driver for continuous printing of a ROLL/SCAN acquisition. The selection of the chart-recorder timebase is defined in theHardcopy Chart Mode Menu (Figure l-39c).
  • Page 93 Hardcopy Format Menu THINK DESK LASEfl Cancel More J i l 2 of 2 Figure 1-41: 2216 Hardcopy Format Menu The following formats can be selected : - HPGL - THINKJET - EPSON FX - DESKJET - EPSON LQ - LASERJET...
  • Page 94 Making Hardcopies Selecting the Hardcopy Layout The hardcopy layout is defined in the Hardcopy Layout Menu, (see Figure 1-42), a sub-menu of the Hardcopy Menu, Hardcopy Layout Menu size: NORMAL SMALL {or for HPGL format) nr of p a n s : grat: FRAME CROSS...
  • Page 95 Previous Position Char Char Menu Figure 1-43: 2216 Hardcopy Edit Note Menu Use the following procedure to change a ’user note’ text: Step 1. Press the SHIFT and. the HARDCOPY/MENU button suc­ cessively to display the Hardcopy Menu (Figure 1-38).
  • Page 96 Making Hardcopies Step 8. Press the 'Insert Char’ bezel button to insert a character before the selected character in the text. Step 9. To delete a character, select it with the 'Select Position' bezel button, and press 'Delete Char' to delete the charac­ ter from the text.
  • Page 97 Figure 1-44 2216 Hardcopy Port Menu A parallel printer/plotter interface connector is located on the rear panel of a standard 2216. The 2216 Option 10 and 2216 Option 12 also have a. GPIB interface output connector or a RS232 interface output connector, or both for Option 10 +12.
  • Page 98 Making Hardcopies Step 3. Select the CENTR, GPIB or RS232 hardcopy port with the appropriate bezel button, Step 4. Press the ‘Previous Menu' bezel button to return to the Hardcopy Menu or press CLEAR MENU to leave the Hard­ copy Port Menu. Tutorial 1 - 76...
  • Page 99 Making Hardcopies Defining the RS232 Printer Output Settings In the Hardcopy Port Menu of a 2216 Option 12, the RS232 hard­ copy interface parameters are defined in the HC Setup RS232 Menu (see Figure 1-45), a sub-menu of the Hardcopy Port Menu.
  • Page 100 Making Hardcopies Step 4. Press the ' - 0 -* bezel button to select a parameter line. Step 5, Press the '<= ’ or ’=>' bezel buttons to select the desired RS232 parameter on the parameter line, etc. Step 6. Press the 'Previous Menu’...

  • Page 101: Overview

    The A t a Glance section of this manual is split up in two chapters: □ The At a Glance chapter will help you understand and operate the 2216 by showing illustrations of the front and rear panel sections with locations and purposes of the knobs and buttons. The following illustrations are included: •...

  • Page 102: At A Glance

    At a Glance Screen Map TRACE/READ O UT CRT Readout TRACE/READOUT INTENSITY BEAMFIND Control, Area, Intensity Switch, Switch, Area, Area, Selection Switch, page 3-5 page 1-22 Switches, page 3-5 page 3-6 MENU Text Area, page 1-22, 3-6 At a Glance...

  • Page 103: Storage Map

    Mode-on Indicator, onloff Switch, Switch, Switch Indicator, page 1-15 page 3-96 page 1-20 page 1-18, page 1-11, 3-36 3-74 Setup (+SHIFT) (+SHIFT) Save/Recall HARDCOPY CURSORS Menu Menu, Menu, page 1-18, 3-83 page 1-15, 3-59 page 1-21, 3-87 2216 User Manual...

  • Page 104: Vertical System Map

    At a Glance Vertical System Map Vertical Vertical Vertical Vertical Display Switching POSITION Scale Mode Mode of the Active- Selection Vertical Vertical Selection Selection Switch of Channel Display Switching Switch, Switch, or Displayed the Active- Mode Mode Channel page 1-5, page 1-5, Reference, Channel,...
  • Page 105 Selection Scale Selection Selection on/off Switch, Switch, Controls, Switch, Switch, page 1-10, 3-21, page 1-6, page 3-29 page 1-6, page, 3-32 3-24 3-23 Trigger (+SHIFT) SOURCE Alternate Indicators, Menu, page 3-31 page 1-7, 3-22 2216 User Manual 2 - 5...

  • Page 106: Rear Panel Map

    At a Glance Rear Panel Map Auxiliary Input (page 3-75, 3-40, 3-98) for : 1. External Clock Parallel I/O Port (Store Mode) or (Centronics ® Z-Axis (Analog Mode), Compatible), page 3-63, 3-68, 2, External Trigger 3-99 IEEE STD RS-232-C Fuse Holder, Power Cord 488 PORT DTE PORT...

  • Page 107: Menu System

    Menu System The 2216 oscilloscope is partly operated by controls on the front panel, and partly operated by a menu control system. See the In Detail section of this manual for a more detailed description. The Menu System chapter contains general information about 2216 menus,...

  • Page 108: To Operate A Menu

    Menu System To Operate a Menu 1. Press the SHIFT button prior to selecting a 'blue1 menu indicated at the bottom of a front panel button 3- PrGSS Beze! button to select a sub-menu or an item 2. Press the Front Panel Button Menu Readout to select the Menu to be displayed At a Glance...

  • Page 109: Symbols In Menus

    Menu System Symbols in Menus In the nomenclature of the 2216 menus, the following conventions are used: Descriptions of menu items are in lower case with the first character in upper case. Descriptions of selections are in upper case. Descriptions in menus in Italic can not be selected.

  • Page 110: Overview Of Menu System

    Menu System Overview of Menu System The following menus are implemented in the menu system of the 2216: - Magnify Menu - Magnify Menu (page 1-7, 3-21) - Storage Functions Menus Storage Functions Menu (1-12, 3-36) - Trigger Position Menu (page 1-12, 3-37)
  • Page 111 Cursors Unit Menu (PAIRED) (see page 3-93) Cursors Mode Menu (see page 3-94) Define Custom Units Menu (see page 1-61, 3-95) _ X-Y Menu jf 3k, r r L t x w X-Y Menu (see page 1-5,1-33, 3-15) 2216 User Manual...

  • Page 112: Menu Summary

    Menu System Menu Summary In this Menu Summary, menus of the 2216 are summarized. The sequence of pressing front panel buttons and bezel buttons is indicated to select a menu. The 2216 has the following menu groups: □ Magnify Menu □...
  • Page 113 Menu System Horizontal Magnify Menu To show this menu: Press these front panel buttons and bezel buttons Magnify Menu H B 1 2216 User Manual 2 - 13...
  • Page 114 Menu System Functions Menus To show this menu: Press these front panel buttons and bezel buttons SHIFT DIGITIZE Storage Functions Menu FA C T IO N S SHIFT DIGITIZE Trigger Position Menu F U N C T IO N S SHIFT DIGITIZE Record Size Menu...
  • Page 115 RUM/STOP SHXFT D □ Waveform Menu [___ Measure Setup Measurement SHXFT RUN/STOP D □ Reference Levels Menu Measure Measurement SHIFT RUM/STOP Unit Menu Measure Define SHIFT RUN/STOP ■ □ Custom Unit Menu Measure 2216 User Manual 2 - 1 5...
  • Page 116 Menu System References Menus To show this menu: Press these front panel buttons and bezel buttons REFS |T J gggj ggg] p gg References Readout SHIFT REFS IE EH Ei l S3 i l l References Menu refs SHIFT REFS ill ill Display References Menu...
  • Page 117 MENU SHIFT HARDCOPY Hardcopy Port Menu MENU Hardcopy Port SHIFT HARDCOPY D |Q Setup RS232 Menu MENU Hardcopy Setup SHIFT HARDCOPY Layout Menu MENU Hardcopy HARDCOPY SHIFT D □ Layout Edit Note Menu MENU 2 - 17 2216 User Manual...
  • Page 118 Menu System Setup Utility Menus To show this menu: Press these front panel buttons and bezel buttons UTILITY i..:.. i ill iia Setup Utility Menu Setup Utility UTILITY iiinam Configuration Menu Setup Utility UTILITY Status Display : : : Setup Utility UTILITY Programmable GPIB Menu...
  • Page 119 Setup Save/Recall Menus To show this menu: Press these front panel buttons and bezel buttons Setup SAVE/RECALL B lU ilii Save/Recall Menu Setup SAVE/RECALL D mi is i I I I ! S H Edit Name Menu 2216 User Manual 2 -19...
  • Page 120 Menu System Cursors Menus To show this menu: Press these front panel buttons and bezel buttons SHIFT CURSORS Cursors Menu □ SHIFT CURSORS Cursors Function 1 1 1 H i Menu MENU SHIFT CURSORS Cursors Unit □ Menu MENU SHIFT CURSORS Cursors Mode □...

  • Page 121: In Detail

    This section also con­ tains a description of the CRT Readout, a Maintenance subsection and a subsection for Probes you can use with the 2216. NOTE The 2216 front panel push-button switches can make se­...
  • Page 122 Cursor Functions and Menus (page 3-87) Cursors & Cursors Menus (page 3-88} GPK Control (page 3-96) SELECT Switch (page 3-96) SHIFT Function (page 3-96) □ Rear Panel (page 3-97) Fuseholder (page 3-98) Power Cord Receptacle (page 3-98) AUX Input Connector (page 3-98) Parallel Printer Interface Connector (page 3-99) Serial Communication Interface Connector (Optional) (page 3-100)

  • Page 123: Screen Display And Power

    Screen Display and Power In this section the various parts and controls of the SCREEN section of the front panel are discussed. On the 2216 screen the following is displayed: Measured Signals Setup Information Menu Information Automated Measurement Result Information...
  • Page 124 Screen Section Figure 3-1: Power, Display Controls, and Power-on Indicator NOTE Positioning o f a display on the center graticule lines enables you to take advantage of the 0.2 division minor graticule markings . In Detail 3 - 4...
  • Page 125 Once set, proper focusing is maintained over a wide range of display intensities. Power ON Indicator and POWER ON/OFF Switch The POWER ON/OFF switch turns the instrument power on or off, The Power ON indicator lights up when the power is turned 2216 User Manual 3 - 5...
  • Page 126 Bezel Button Switches You can change selections from a selected menu or have the 2216 perform a function in that menu, by pressing a bezel button switch which is associated with that menu location. The lower two divisions of the screen are used to display a menu or readout information.

  • Page 127: Vertical Operation

    Vertical Operation This section describes the vertical deflection system of the 2216 in the VERTICAL section of the 2216 front panel (see Figure 3-2), General The 2216 has four fully featured vertical channels with calibrated deflection factors from 5 mV per division to 10 V per division at full bandwidth (60 MHz), The vertical deflection factor is ex­...

  • Page 128: Vertical Controls And Connectors

    Vertical Operation Vertical Controls and Connectors See Figure 3-2 for the location of items 11 through 23. Figure 3-2: 2216 Vertical Controls and Connectors Vertical Channel-On Switches CH1, CH 2, CH 3 and CH 4 channel switches determine which channel is selected and active. A ground symbol {/i?} at the left side of the screen indicates the approximate ground level of the active channel or reference.
  • Page 129 Coding-ring contacts on the input connectors are used to auto­ matically switch, the scale factor displayed by the crt readout when a probe with probe coding (for example a Tektronix P6109B) is used. In X-Y non-store mode, the X-Y combinations are the automatic result of the selected channels or add mode, resulting in a maxi­...
  • Page 130 Pressing the 'INVERT' button again restores the normal mode. The 2216 can be operated as a differential oscilloscope by using the GH 1+2 mode and/or the CH 3+4 mode as differential amplifier(s). Therefore, one channel of each mode must be set to the INVERT position.
  • Page 131 CH 1+2 - CHI and CH2 input signals are added, resulting in a CH 1+2 signal. A ’’+" symbol appears in the readout. In CH 1+2 mode, the 2216 can be operated as a lim­ ited differential amplifier if one of the channel sig­ nals is inverted. Therefore, toggle the INVERT switch of CHI or CH2 to the invert position.
  • Page 132 Vertical Operation Alternate / Chopped (ALT/CHOP) Switch The Alternate / Chopped (ALT/CHOP) switch selects between the Alternate or Chopped vertical mode. At least two channels must be selected. If Alternate mode is selected in combination with the 'VERT' trigger source selection, the trigger source is alternating between the selected channels.
  • Page 133 (">"} or smaller than symbol ("<") in front of the affected channel readout. Pushing both VAR buttons simultaneously restores the calibrated status, and the symbol in front of the affected VOLTS/DIV read­ out disappears. 2216 User Manual 3 - 1 3...
  • Page 134 Vertical Operation Vertical POSITION Control The vertical POSITION controls the vertical display position of a displayed signal of the active channel in Y-t format. When the trace is positioned outside the graticule area, an arrow sign (T) is displayed at the top graticule line, or an hi) at the lower graticule line, depending of the position of the trace.
  • Page 135 Press a bezel button in the X-Y menu of the channel to be set. Select the waveform to be displayed with the GPK control. NOTE Selecting 'OFF' in either the X or Y will turn-off that spe­ cific X-Y waveform. 2216 User Manual 3 - 1 5...
  • Page 136 CHI-4 or Next selectable Ref 1-16 Y1 can be X2 nan be Y2 can be Menu, selected selected selected selected Action, Units or Values with the w ith GPK with GPK with. GPK Figure 3-2a: 2216 Digitize X-Y Menu In Detail...
  • Page 137 (at approximately 1 kHz) for use in compen­ sating voltage probes (see also page 1-25). NOTE The PROBE ADJUST output is not intended as a reference in checking either the vertical or the horizontal accuracy o f the instrument. 2216 User Manual 3 - 1 7...
  • Page 138 In Detail...

  • Page 139: Horizontal Operation

    HORIZONTAL section on the 2216 front panel, (see Figure 3-3). General The 2216 Oscilloscope can be used in two different horizontal display modes: Horizontal Non-Store Display Mode In the Non-Store (analog) mode, the 2216 provides a calibrated sweep speed range from 0.5 s per division to 0.05 ps per divi­...
  • Page 140 Horizontal Operation Figure 3-3: 2216 Horizontal Controls and Switches The stored record length per waveform can be selected in the Record Size Menu (a sub-menu of the Functions Menu) from 512 points to 16384 points. A maximum of sixteen waveforms may be stored in the 64KB reference memory as reference waveforms via the Reference Menu.

  • Page 141: Horizontal Controls And Switches

    Figure 3-4) and the required magnification mode can be selected. Pressing CLEAR MENU removes the menu from the screen. Magnify Menu Alternate FfiToScr Next selectable Menu, Action, Units or Values Figure 3-4: 2216 Horizontal Magnify Menu 2216 User Manual 3 - 2 1...
  • Page 142 Horizontal Operation The following selections can be made in the Magnify Menu with the bezel button switches: The Alternate ON/OFF bezel button switches the horizontal alternate mode ON or OFF, In Alternate ON, the magnified and the unmagnified trace(s) will be displayed on the crt screen alternately.
  • Page 143 In SCAN mode, the latest acquired data overwrites the existing waveform from left to right on the screen. Setting the trigger Mode to SINGLE sweep will cause the 2216 to operate in the triggered ROLL/SCAN mode. Triggers are enabled after the pretigger period. When a trigger occurs, the acquisition continues during the post trigger period and then stops.
  • Page 144 Horizontal Operation Table 3-4; 2216 Sample Rate versus Timebase Selection Display Mode Display Mode with Records with Records Timebase Sample Sample of 4096-128K Rate of 512 points Rate Selection — 2 ps/div RECORD 20 MS/s n.a. RECORD 8 MS/s 5 ps/div n.a.

  • Page 145: Triggering

    Triggering In this section the functions of the trigger switches and controls are discussed (see Figure 3-5). (37^ Figure 3-5: Trigger Switches, Controls and Indicators 2216 User Manual 3 - 2 5...

  • Page 146: Trigger Controls, Switches And Indicators

    Trigger Operation Trigger Controls, Switches and Indicators See Figure 3-5 for the location of items 30 through 39. HOLDOff & Trigger LEVEL Switch The Holdoff/Trigger Level switch toggles between the Holdoff control [H.O.) and the Trigger Level control (LEVEL). The LED of the selected function lights. Holdoff - The control adjusts the holdoff time.
  • Page 147 The READY LED indicator turns on in SINGLE sweep trigger mode, when the trigger circuit is armed by pressing RESET but­ ton, awaiting a triggering event. The READY indicator turns off as soon as a trigger event occurs. 2216 User Manual 3 - 2 7...
  • Page 148 The Trigger Position' in store mode is defined in the FUNCTIONS Menu, resp. Trigger Position Menu (see Figure 3-6). Trigger Position Menu TiigPos Set To Set To Set To Previous [ 25% ] Menu Figure 3-6: 2216 Trigger Position Menu In Detail...
  • Page 149 (an auto-trigger is not generated in the absence of an adequate trigger repetition rate), NORMal trigger mode will generate a sweep or acquisition when a valid trigger condition occurs. In store mode ROLL/SCAN acquisition mode, triggering is disabled 2216 User Manual...
  • Page 150 Trigger Operation SINGLE sweep In SINGLE sweep trigger mode, the sweep or acquisition can be started by a trigger pulse to display one sweep or acquisi­ tion. A RESET switch pulse must be generated to arm the trigger circuitry to accept a trigger event. The arming of the trigger circuit is indicated by the READY led.
  • Page 151 "CH4" is displayed in the trigger source readout field. - LINE Mode In LINE Mode, an attenuated ac power line signal is routed to the trigger circuit, "LINE” is displayed in the trigger source readout field. 2216 User Manual 3 - 3 1...
  • Page 152 Trigger Operation COUPLING Switch The trigger COUPLING switch selects the method of coupling for the signal applied to the trigger circuit. Trigger COUPLING selection is disabled if either TV-Line or TV-Field mode is selected. The following selections can be made: AC Coupling The vertical input signal is capacitively coupled to the trigger circuit, and the dc component is blocked.
  • Page 153 "LF rej" is displayed in the trigger readout field. NOTE LF Reject coupling is useful for providing a stable display o f high-frequency components of complex waveforms by eliminating low-frequency interference or power supply hum from the trigger signal. 2216 User Manual 3 - 3 3...
  • Page 154 In Detail 3 - 3 4...

  • Page 155: Storage Functions And Menus

    Digitize & Functions Menus (page 3-36) O Run/Stop Acquisition & Measurements Menus (page 3-43) O References & References Menus (page 3-49) □ Hardcopy & Hardcopy Menus (page 3-59) Figure 3-7: 2216 Storage Functions and Menu Switches 2216 User Manual 3 - 3 5...

  • Page 156: Digitize/Functions Menu Switch

    DIGITIZE/FUNCTIONS Menu Switch The DIGITIZE/ FUNCTIONS menu switch (see Figure 3-7) has two functions: Pressing the DIGITIZE switch, you toggle between the non-store or the store mode. When store mode is selected, the "STORE" LED lights. When switched to non-store, the store acquisition is turned off, and the last waveform acquired in store mode remains in memory until the power is switched off.
  • Page 157 Menu Action, Units or Values control: 1.0% Figure 3-9: 2216 Trigger Position Menu The following selections can he made: - 'Trig Pos1 The trigger position point must he defined with the GPK control. Set To 10%'...
  • Page 158 Storage : Function Menus Record Size Menu Press the 'Rec Size' bezel button in the Functions menu to select the Record Size Menu (see Figure 3-10). The Record Size is defined as the number of points per acquired record. Record S iz e : Set to Set to Set to...
  • Page 159 Press the 'Clock Source’ bezel button in the Functions Menu to select the Clock Source Menu {see Figure 3-11). You can select whether the clock pulse for the A/D-convertors in the 2216 is derived from the internal clock source or an external clock source.
  • Page 160 Storage : Function Menus NOTE Fast SEC/DIV settings are possible by handling samples as a RECORD. This is not possible when the samples are handled individually (therefore the name "Slow Mode"). The main disadvantage of handling samples as a record be­ comes visible at slow SEC/DIV settings and at a long record- length.
  • Page 161 Stow Mode Menu ROLL SCAN Cancel Figure 3-12: 2216 Slow Display Mode Menu You can select the display of the samples on the CRT if the acquisition is continuous (Slow Mode): 'ROLL* Display The acquired data is displayed so that new samples are added...
  • Page 162 Storage : Function Menus Limit Test Setup Menu The 2216 can compare an acquired waveform with an upper and a lower waveform. The waveform of the active channel is tested. Reference waveforms can be selected in the Limit Test Setup Menu to be used as upper and lower waveforms.

  • Page 163: Run/Stop / Measure Menu Switch

    Figure 3-14: Storage Functions and Menu Switches When STOP is selected, "STOP" appears in the readout acqui­ sition status field. Pressing the SHIFT and the RUN/STOP/MEASURE switch successively, the Measurements Menu is displayed (see Figure 3-15}. 2216 User Manual 3 - 4 3...
  • Page 164 Menu Menu Menu from the screen Figure 3-15: 2216 Measurements Menu NOTE If you select a different active channel or active refer­ ence, the bezel button of the selected measurement in the Select Measurement Menu must be pressed again. You can select in the Measurements Menu: - Select Measurement Menu (see page 45).
  • Page 165 Previous More Power Menu 5 of 5 Power Figure 3-16 a, b ,ct d, e: 2216 Select Measurement Menus For more information about automated measurements, see Using Automated Measurements, page 1-43 through 1-50. 2216 User Manual 3 - 4 5...
  • Page 166 The default level is 50%. The 'mid ref level' can be selected as a percentage or as a voltage. Once you define a mid reference level, the 2216 will use it for all measurements requiring that level. For more information about Selecting a Measurement Refer­...
  • Page 167 Set to Previous {-1,23 ] Menu Figure 3-17 a, b, c: 2216 Set Measurement Reference Level Menu Measurement Unit Menu Press the 'Unit' bezel button to select the Measurement Unit Menu (see Figure 3-18). The unit is selected as a voltage or as a customised unit.
  • Page 168 S value: -1.23 E +1 unit name: "RPM" Previous Next Previous Formula Formula Menu Next line Measuremen Next selectable Menu, downward t. Unit Action, Units or Values Menu Figure 3-19: 2216 Define Custom Unit Menu In Detail 3 ~ 4 8...

  • Page 169: Refs/Menu Switch

    64K, so a maximum of 16 wave forms of 4 K each can be stored. When storing a waveform, the 2216 assigns the waveform a de­ fault ID string (e.g. REF3) in the Reference Readout (see Figure 3-21).
  • Page 170 (200mV and 500ps), For more information about using reference waveforms, see Using References, page 1-51 through 1-56. REF3 200mV 500ps More 1 of 4 REF2 REF3 REFS Figure 3-21: 2216 Reference Readout In Detail 3 - 5 0...
  • Page 171 A maximum of four stored waveforms can be displayed simulta­ neously. Press the SHIFT button and the bezel button of a selected refer­ ence successively to remove a selected reference from the screen. 2216 User Manual 3 - 5 1...
  • Page 172 Menu Menu Units or Values Readout fCH 1) Figure 3-22: 2216 References Menu References Menu The References Menu (see Figure 3-22) has the following sub­ menus and settings: - 'Save CHI’ The current active waveform (in this example: CHI) will be saved (page 3-53).
  • Page 173 Units o r Values Figure 3-22a,b : Reference Display Menu The Reference Display Menu can be operated the same way as the Reference Readout (see page 3-51). Press CLEAR MENU to leave the Reference Display Menu. 2216 User Manual 3 - 5 3...
  • Page 174 Storage : References & References Menu Delete Reference Menu Press the 'Delete' bezel button in the References Menu to select the ’Delete References Menu1 (see Figure 3-23), The currently active reference is displayed, together with its readout. Delete from memory: REF2 200mV SOOjiS...
  • Page 175 Edit Name Actio, Units Values Menu Menu Figure 3-24: 2216 Rename References Menu The following selections can be made: Previous Ref Selects the previous stored reference waveform, ~ ~ 'Next Ref Selects the reference waveform next in the row of stored ref­...
  • Page 176 Ihe line character bezel button Figure 3-25: 2216 REFS Edit Name Menu The following selections can be made: Select Position* Selects the position of the character to be changed. Char’ Selects the character setting. The character to be displayed can be selected with the GPK control.
  • Page 177 Units or Values point Figure 3-26: 2216 REFS Position Mode Menu The following selections can be made: Press the *H Lock' bezel button to select the 'Horizontal Lock Menu’ (see Figure 3-27). The following positions can be se­...
  • Page 178 Next selectable Menu, NONE REFS Mode Action, Units or Values Menu Figure 3-27: 2216 Horizontal Lock Menu ~ 'Align Trig' Horizontally aligns all displayed waveforms at their trigger point instantaneously, — Align Rec' Horizontally aligns all displayed waveforms at "start of record"...

  • Page 179: Hardcopy/Menu Switch

    The on/off state of the hardcopy process is dis­ played by a ’PEN’ message on the screen. Pressing the SHIFT and the HARDCOPY/MENU switch suc­ cessively, the Hardcopy Menu is displayed (see Figure 3-29). Figure 3-28: Storage Functions and Menu Switches 2216 User Manual 3 - 5 9...
  • Page 180 Storage : Hardcopy & Hardcopy Menu Hardcopy Menu Mode Format Port Setup RECORD TH INKJET CENTR Layout Hardcopy Hardcopy Hardcopy Hardcopy Next selectable Menu, Port Layout Record Format Action, Units or Values Menu Menu Menu Menu Figure 3-29: Hardcopy Menu The Hardcopy Menu has the following sub-menus: Hardcopy Mode Menu (page 3-61) Hardcopy Record Mode Menu (page 3-62)
  • Page 181 Menu Units or Values Mode Menu Mode Menu Figure 3-30: 2216 Hardcopy Mode Menu Press the 'Mode' bezel button to select the 'Hardcopy Mode Menu' (see Figure 3-30). An underscore indicates if ’RECORD’, 'CHART, or 'STATUS' hardcopy mode is selected.
  • Page 182 Action, Units or Values Record Copy Cursors Menu Figure 3-31a: 2216 Hardcopy Record Mode Menu In the Hardcopy Mode Menu the following selections can be made: Hardcopy Record Mode Menu (RECORD) In hardcopy RECORD mode (see Figure 3-3la), a copy of the complete record or a part of the record will he made on a printer or plotter.
  • Page 183 1 day per Action, Units or Values div, setting Menu Figure 3-31b: 2216 Hardcopy Chart Mode Menu Hardcopy Chart Mode Menu (CHART) In hardcopy CHART mode (see Figure 3-31b)f a printer using fan-fold paper is connected to the output port for continuous printing of the acquisition.
  • Page 184 Menu, Action, Th inkjet Deskjet LaserJet Menu i of 2 Units or Values Figure 3-32: 2216 Hardcopy Format Menu The following printer drivers can be selected: ’HPGL' ’EPSON FX’ ’EPSON LQ’ 'THINKJET1 ’DESKJET* cT ? p ri7 T « t Jj^r\tl3.l7j*V | Ju J,...
  • Page 185 Number 012-1214-00) must be connected from the printer to the Parallel printer/plotter interface connector (25-pin D-type female connector) on the rear panel of the 2216 , Table 3-6 lists the functions of each pin of the connector. 2216 User Manual...

  • Page 186: Figure 1-3: 2216

    Pressing the 'GPIB' bezel button, you select the GPIB output port in the Hardcopy Port Menu as the printer port in a 2216 Option 10. The 2216 now is set to TALKER ONLY. A GPIB compatible printer must be connected to the 2216 GPIB output port with a GPIB cable (Tektronix Part Number 012-0991-01).
  • Page 187 Digital Ground (A IN ) Digital Ground (LOGIC) NOTE If the Hardcopy Port Menu is set to 'GPIB', and 'ON-LINE' is selected in the 'Setup Utility Programmable GPIB Menu', the Hardcopy Port Menu setting will change to 'CENTR'. 2216 User Manual 3 - 67...
  • Page 188 RS232 output port as the printer output port in a 2216 Option 12. A RS232 compatible printer must be connected to the RS232 interface connector on the rear panel of the 2216. A gender changer (Tektronix Part Number 131-4923-00) and a RS-232-C cable (Tektronix Part Number 012-1423-00) should be used to connect the printer and the RS232 interface con­...
  • Page 189 SOFTW HARDW HC100 ODD EVEN NONE partly; Stopbits Previous Menu Figure 3-34: 2216 Hardcopy Setup RS232 Menu NOTE 1. Hardcopy Port Setup RS232 Menu settings are independent from the ‘Setup Utility Progr RS232 Menu’ settings 2. ’Handshake’ HARDW selects handshaking with DSR and CTS signals.
  • Page 190 Storage : Hardcopy & Hardcopy Menu Hardcopy Layout Menu Press the 'Setup Layout' bezel button in the HC Menu to select th e 'Hardcopy Layout Menu' (see Figure 3-35). Hardcopy la y o u t Menu size: SMALL NORMAL (or for HPGL format) nr of p e n s : grai: FRAME...
  • Page 191 Layout Action, Units or Values position character character Menu Figure 3-38: 2216 Hardcopy Layout Edit Note Menu A 'user text' can be composed as pointed out in: Making Hard­ copies, page 1-73, 2216 User Manual 3 ~ 71...
  • Page 192 In Oct 3 - 7 2...

  • Page 193: Setup Functions And Menus

    □ Setup UTILITY Functions and Menus (page 3-74) □ Setup SAVE/RECALL Function and Menus (page 3-84) □ Setup AUTO Function (page 3-86)1 DIGITIZE RU N /STO P ■■ST"' ■ STORE MEASURE © (46) (47) Figure 3-37: 2216 Setup Functions 2216 User Manual 3 - 7 3...

  • Page 194: Utility Menu Switch

    UTILITY Menu Switch Press the UTILITY menu switch [see Figure 3-37) to select the Setup Utility Menu on the screen. The 2216 can be configurated, Option 10 and Option 12 settings can be defined, and the user can make compensations with the User Comp. Menu,...
  • Page 195 Setup Utility Configuration Menu Press the ’Config' bezel button in the Setup Utility Menu to select the Setup Utility Configuration Menu (see Figure 3-39). In this menu the configuration of the 2216 will be defined. Setup Utility Config Menu aux trig: aux z;...
  • Page 196 OFF: the record view is not displayed. ON : the record view is displayed continuously. TIMED: the record view is only displayed for a few seconds if a setting of the 2216 is changed. The Record View readout represents the following items of an acquired record: The complete acquired record is displayed as a dotted line.
  • Page 197 CRT RIGHT RECORD START CURSOR CURSOR Figure 3-40: 2216 Record View Readout 'readout' line Select the amount of readout information with the ' =£■ ' and the ' <= ' bezel buttons: FULL; a maximum of readout information is displayed.
  • Page 198 Utility downwards Action, Menu Units or Values Figure 3-41: 2216 Setup Utility Configuration Menu ('date* line) Setup Utility Status Display Press the 'Status' bezel button in the Setup Utility Menu to select the Setup Utility Status Display (see Figure 3-42).
  • Page 199 Setup Programmable GPIB Menu (Option 10 only) Press the 'Progr GPIB' bezel button in the Setup Utility Menu to select the Setup Programmable GPIB Menu (see Figure 3-43). In this menu the GPIB settings of the 2216 will be defined. Programmable GPIB Menu OFF-LINE ON-LINE bus state;...
  • Page 200 The programmable GPIB interface can be set. to the 'fast’ mode using the 1 => ’ and the ’ «= ’ bezel buttons. When set to ON, the hardware and the software of the 2216 are optimized for maximum communication speed.
  • Page 201 Figure 3-45: 2216 Setup Programmable RS232 Menu The following selections can be made : 'line state' line, OFF-LINE, The 2216 is not connected to the bus, ON-LINE . The 2216 is connected to the bus. ’Language1 line The command language of the programmable interface is defined on this line, —...
  • Page 202 Utility Action, Units or Values wards selection selection Menu Figure 3-45a: 2216 Hardcopy Setup RS232 Menu For more information about the Hardcopy Setup RS232 Menu, see; Hardcopy & Hardcopy Menu, page 3-69. In Detail 3 - 8 2...
  • Page 203 Action, Utility sation Menu Units or Values Routines Figure 3-46: 2216 Setup Utility User Compensation Menu The following selections can be made : Start User Compensation A routine is started to compensate for drift of the vertical amplifiers, Previous Menu The Setup Utility Menu will be recalled.

  • Page 204: Save/Recall Menu Switch

    SAVE/RECALL Menu Switch Press the SAVE/RECALL menu switch (see Figure 3-47) to dis­ play the Setup Save/Recall Menu, Front panel setups can be stored in memory and also recalled from, that memory. The Factory Default Setup and five 'user- settable setups' can be saved. Names of stored setups can be changed in the Edit Name sub­...
  • Page 205 Sine Recall Unite Values Menu Figure 3-48: 2216 Setup Edit Name Menu Recall Setup' Recalls the selected front panel setup to become the new front panel setup. Undo R ecall' Undoes the action of the 'Recall Setup’ bezel button. The previous front panel setup will be installed again.
  • Page 206 Previous Menu' Recalls the Setup Save/Recall Menu. Setup AUTO Feature Press the Setup AUTO button to activate the 2216 Setup AUTO feature. Front panel functions are automatically set to scale and trigger unknown waveforms to fit inside the graticule area.

  • Page 207: Cursors And Cursor Menus

    □ General Purpose Knap (GPK)(page 3-96) SELECT Switch (page 3-96) ( ^ ) □ SHIFT Function Switch (page 3-96) Figure 3-49: CURSORS/MENU Switch, General Purpose Knob Control, SELECT Switch, and SHIFT Function Switch 2216 User Manual 3 - 8 7...
  • Page 208 CURSQRS/MENU Switch \ ^ 8 / Cursors are activated by pressing the CURSORS/MENU switch. Before applying cursors, the following items should be defined in the Cursors Menu: The cursor function (VOLTAGE, TIME or PAIRED cursors) The cursor unit The cursor mode (DELTA, TRACK, or SINGLE) Scrolling ON or OFF For more information about cursor functions, cursor modes, and cursor units, see: Using Cursors, page 1-58 through 1-60, and...
  • Page 211 Cursors & Cursor Menus Cursors Unit Menu Press the 'Unit' bezel button in the Cursors Menu to select the Cursors Unit Menu (see Figure 3-51). Unit Menu Previous TIME VOLTS Menu Next selectable Menu, Cursor Time Unit Voltage Unit Action, Units or Values Menu Menu Menu...
  • Page 212 Action, Menu Mena Menu Menu Units or Values Figure 3-52: 2216 Voltage Unit Menu Voltage Unit Menu The following selections can be made: ’VOLT’ units. The distance between the VOLTS cursors is expressed in volt. -- 'CUSTOM’ units. The distance between the VOLTS cursors is expressed in customised units (for example rpm}.
  • Page 213 Cursor Action, Units or Values Menu Menu Menu Menu Menu Figure 3-53: 2216 Time Unit Menu Time Unit Menu The following selections can be made: 'TIME' The distance between the TIME cursors is expressed in sec­ onds, T/TIME" The distance between the TIME cursors is expressed in Herz, ’RATIO'...
  • Page 214 Action, Units or Values Menu Menu Menu Menu Figure 3-54: 2216 Cursors Mode Menu The following selections can be made : DELTA' Two cursors are displayed. The dashed cursor can be moved with the GPK control. The other cursor (solid line) is fixed, ’TRACK'...
  • Page 215 Action, Units or Values downwards “ Menu Figure 3-55: 2216 Cursors Define Custom Unit Menu The following selections can be made : The next menu line will be selected, Previous Formula' The previous formula from the available formulas will be selected.

  • Page 216: General Purpose Knob

    Cursors & Cursor Menus General Purpose Knob General Purpose Knap (GPK) control on the upper right side of the front panel can be used to define values and parameters in menus, to position cursors, etc. If the GPK can be used for changing a setting, a ( Cu symbol is f t h n w n i n t f m r p a H m i t SELECT Switch The SELECT switch is used to select the other cursor if the...

  • Page 217: Rear Panel

    Rear Panel The 2216 can be operated from an ac power source with a 90-250 VAC range, as indicated on the Rear Panel. In this sec­ tion the parts on the rear panel will be discussed (see Figure 3- Fuse Holder...
  • Page 218 External dock signals to the storage acquisition circuit in store mode. The external clock of the 2216, as defined in the Clock Source Menu, (see page 3-40), can be set to: - AUX IN RECORD (O-lOMHz) AUX IN SLOW (0-4kHz) Z-Axis input which is selectable in the Setup Utility Con­...
  • Page 219 2216 Rear Panel Parallel I/O Port The 2216 has standard a parallel printer interface implemented for printers/plotters with a Centronics compatible interface. The Parallel Printer Interface Connector provides an IBM ® PC compatible parallel printer interface for connecting print­ ers and plotters with a Centronics ® compatible interface.
  • Page 220 2216 Rear Panel GPIB (IEEE STD 488.2 1992} - Interface C o n n ecto r (Option 10 only) With Option 10 installed, the 2216 is fully remote programmable by a controller (PC). The GPIB Interface provides ANSI/IEEE STD 488.2 1992 compat­...
  • Page 221 2216 Rear Panel DTE - Interface RS-232-C Connector (Option 12 only) With Option 12 installed, the instrument is fully remote pro­ grammable by a controller (PC). The Serial Communication Interface provides an RS-232-C inter­ face connection meeting the El A RS-232-C standard for data ter­...
  • Page 222 In Detail 3 - 1 0 2...

  • Page 223: Appendix A: Options & Accessories

    Appendix A: Options & Accessories This section presents a general description of the 2216 options and accessories, Standard Accessories Options Optional Accessories You can obtain additional information about instrument options, option availability, and other accessories by consulting the current Tektronix Product Catalog, or by contacting your local Tektronix Field Office or representative.
  • Page 224 Options & Accessories Standard Accessories The following standard accessories are provided with each 2216 (see Table A-l): Table A-l: Standard Accessories Description Tektronix Part Humber P61G9B lO x Passive Probe Power Cord and Fuse As Ordered 343-0003-00 Loop Clamp 210-0803-00...

  • Page 225: Options

    W arranty -Plus Service Options The following options add to the services available with the standard warranty. Option M2; When Option M2 is ordered, Tektronix provides five years of warranty/remedial service. Option MO: When Option M8 is ordered, Tektronix provides four calibrations and four performance verifications, one for each in the second through the fifth years of service.

  • Page 226: Option 10 (Gpib

    Tektronix Standard relating to GPIB Codes, Formats, Conventions and Features 4-91. Operating information for the Option 10 GPIB interface is given in the 2216 Programmer Manual delivered with Option 10. GPIB connector pin-outs are described in Section 3: In Detail, page 3-67.

  • Page 227: Option 12 (Rs-232-C

    Operating information for the Option 12 RS-232-C interface is given in the 2216 Programmer Manual, delivered with Option 12. The RS-232-C interconnection plug is described in Section 3: In Detail: page 3-68.

  • Page 228: Optional Accessories

    Options & Accessaries Optional Accessories The following optional accessories are recommended for use with the 2216. Instrument Enhancements Tek Part Number Front-panel Protective Cover 200-3397-00 016-0677-02 Accessory Pouch Front-panel Protective Cover and Accessory Pouch 020-1514-00 016-0792-01 Carrying Case 337-2775-01 CRT Light Filter, Clear...
  • Page 229 Low Cost Camera (with portables hood) C-9 Option IF Low Cost Camera with Flash Unit Low Cost Camera with Autofilm C-9 Option 1A Motorized Back High-Performance Camera C30BP Option 01 Plotters HC100 Opt, 02 Plotter 2216 User Manual A - 7...
  • Page 230 Appendix A; Options & Accessories A - B...

  • Page 231: Appendix B: Specifications

    (PC). Indicators Several on-screen readouts help you keep track of the settings for various functions. There are also crt readouts of every installed menu, results of automated measurements, and results of cursor measurements. 2216 User Manual B ~ 1...

  • Page 232: Nominal Traits

    Nominal Traits This subsection contains a collection of tables that list, the vari­ ous nominal traits that describe the 2216 Analog & Digital Stor­ age Oscilloscope. Included are electrical and mechanical traits. Nominal traits are described using simple s tatements of fact such as "Four full featured"...
  • Page 233 CH 1, CH 2, CH 3, CH 4, Vert. Mode, Line. Trigger Mode Auto, Normal, Single Sweep, TV Line, and TV field Trigger Point Selection 0% to 100%( seiected in the Trigger Position (Store mode) Menu) n * 3 2216 User Manual...
  • Page 234 (Optional) Conforms to E!A Standard RS-232-C GPIB interface complies with IEEE 488.2 1992 Interface, GPiB (Optional) and to Tektronix Standard Codes and Formats 4-91 1.8 A, 250 V, slow blow for 90 - 250 VAC Fuse Rating Appendix B: Specifications...
  • Page 235 Nominal Traits Table B-7; Nominal Traits - Mechanical Name Description Forced-air ciculation with no air filter Cooling Method Construction Material Aluminum chassis. Plastic-laminate front and rear panel Finish Tek blue structure paint on aluminum cabinet 2216 User Manual B - 5...
  • Page 236 Appendix B; Specifications B - 6...

  • Page 237: Warranted Characteristics

    Warranted Characteristics This sub-section list the various warranted characteristics that describe the 2216 Analog & Digital Storage Oscilloscope. In­ cluded are electrical and environmental characteristics. Warranted characteristics are described in terms of quantifiable performance limits which are warranted. In the Name column a distinction is made between operational...
  • Page 238 Warranted Characteristics Table B-8: Warranted Characteristics - Vertical System Description N a m e Accuracy, DC Gain ±3% Rise Time (Non-Store) 1 mV/ DiV, 2mV/DIV < 35 ns (0°C to +40° C ambient) 5 mV/DIV to 10 V/D1V < 5.8 ns (15°C to +35° C ambient) Risetime is calculated fromthis formula: Rise Time = 0.35 / Bandwidth(-3dB) Measured with a five-division reference signal,...
  • Page 239 Differential Accuracy is measured over any two of the center eight divisions. Exclude the first 50 ns of the xlO magnified sweep, and the first 100 ns of the x50 magnified sweep. Exclude beyond the 9th division of the unmagnified sweep. 2216 User Manual...
  • Page 240 Warranted Characteristics Table B-10: Warranted Characteristics - Triggering System Name Description Sensitivitya, with Coupling AC 0.35 division from 50 Hz to 5 MHz, increasing to 1.2 division at 60 MHz Sensitivitya, with Coupling DC 0.35 division from DC to 5 MHz, increasing to 1.2 division at 60 MHz S e n s itiv ity w ith Coupling LF REJ...
  • Page 241 Figure B»l*. Maximum Input Voltage Versus Frequency Derating Curve for the AUX Input Connector Volis DC peak AC Figure B-2: Maximum Input Voltage Versus Frequency Derating Curve for the CH 1, CH 2, CH 3, and CH 4 Input Connectors 2216 User Manual B~ 11...
  • Page 242 Appendix B: Specifications B - 1 2...
  • Page 243 - With comment Non-Store means the characteristic is valid only if the instrum ent is in Non-Storage mode. - No comment means the characteristic is valid with the instrument in Store mode as well as in Non-Store mode. 2216 User Manual B - 13...

  • Page 244: Typical Characteristics

    Typical Characteristics Table B-ll: Typical Characteristics - Vertical System Name Description Range of VAR control Range is sufficient to to increase or decrease the deflection factor to the next uncaiibrated VOLTS/DIV setting. Bandwidth Limit (Non-Store) Independent switchable for each Channel 5 mV/Div to 10 V/Div ™3dB at >10 MHz and <17.5 MHz -6 dB or more at 25 MHz...
  • Page 245 Switching from Non-Store to Store the trace shift must be less than + 0.5 division at graticule center. Graticule indication of voltage cursor Vertical Differential Accuracy difference is within +2% of readout value, (Store) measured over the center six divisions 2216 User Manual B - 15...
  • Page 246 Typical Characteristics Table B -ll: Typical Characteristics - Horizontal System Name Description D ifferential Accuracy (+0° C to +40° C) +6.25% X10 M agnifier ±10% X50 M agnifier ±11.25% A ccuracy (+ 0 ° C to +40° 0) ±4% X I 0 M agnifier ±5% ±8% X50 M agnifier...
  • Page 247 1 sample interval + ■ 500 p$ or iess Graticule indication of Time cursor Horizontal Differential Accuracy difference is within ±2% of readout value, measured over the center eight divisions or Fit To Screen. 2216 User Manual B - 17...
  • Page 248 Typical Characteristics Table B-13: Typical Characteristics ~ Z-Axis System Description Name AUX- Input (Z-Axis input} Sensitivity (Non Store) causes noticeable modulationa DC to 5 MHz Usabie Frequency Range (Non-Store) Table B-14: Typical Characteristics - Cursor System Description Name TIME Cursors Position Control Range 0,5 div left of first graticule line to 10,5 division Non-store...
  • Page 249 X-axis and Y-Axis Amplifiers ± 3 degrees from DC to 150 kHz in Non-store Dynamic Range > + /- 4 divisions a Measured with a dc-coupled, five-division reference signal b Measured with a five-division reference signal 2216 User Manual B - 19...
  • Page 250 Typical Characteristics Table B-16: Typical Characteristics - PROBE ADJUST Name Description Output Voltage 0.5 V ±5% Repetition Rate 1 kHz ± 20% Table B-17: Typical Characteristics - CRT Display Description Name Geometry 0.1 div. at 8x8 cm (centered) area Vertical 0.2 div.
  • Page 251 Meets requirement s per EN50082-1 (IEC801-2, 3, 4, 5). In case of ESD and EFT tests, a temporarily degradation of the performance may occur. No change of actual operating state or stored data occurs. 5 - 2 1 2216 User Manual...
  • Page 252 4.5.5.3.1, Shock Non-operating 30 g, half-sine, 11 ms duration, three shocks per axis each direction, for a total of 18 shocks as per Tektronix Standard 062-2858-00 Meets requirements of M1L-28800E, except limited to 30g, Bench Handling Test Four-inch drop per Tektronix Standard 062-2858-00.
  • Page 253 Parallel Printer/Plotter connector. Edge lifted four inches and allowed to free fall onto a solid wooden bench sur­ face. 2216 User Manual B ~ 2 3...
  • Page 254 Typical Characteristics Table B-19: Typical Characteristics - Mechanical Specifications Name Description ± 7 kg Weight with power cord Domestic Shipping Weight ± 11 kg Overall Dimensions Height 138 mm Width 380 mm (with carrying handle) Width 327 mm (without carrying handle) Depth 445 mm Depth...

  • Page 255: Appendix C: Performance Tests

    Appendix C: Performance Tests This Performance Test contains a collection of procedures for checking that the 2216 Analog & Digital Storage Oscilloscope performs as warranted. The performance checks described are: Vertical Checks Horizontal Checks Triggering Checks These performance check procedures are used to verify the in­...
  • Page 256 Procedure 1. Plug the female connector of the power cord in the power cord receptacle of the 2216 and the male connector to the AC power source, 2. Connect the test equipment, as indicated in the Equipment Required list, to the 2216 oscilloscope.
  • Page 257 1 s. Marker accuracy: checks and TG501 Time- Mark Genera- +0.1 %. Trigger output: adjustm ents. 1 ms to 0.1 ps, tim e- Display t o r 1 1 coincident with adjustm ent markers. 2216 User Manual C - 3...
  • Page 258 6, TV Signal Provide Composite Generator TV Video and Line Trigger circuit TSG-100 Sync Signals Test Signal Generator. Signal inter­ Tektronix Part 7. Coaxial Impedance: 50 Q. Cable (2x) Length: 42 in. connection, Number 012-0057-01. Connectors: BMC. 8. Dual Input Signal inter­...
  • Page 259 T ektronix 15. Adapter Connectors: BNC Signal inter­ connection. Part Number m aie-to-tip plug 175-1178-00, Signal in te r­ Tektronix 18, interface connection. Part Number Cable 012-1214-00. a Requires a TM 500-Series Power Module. C - 5 2216 User Manual...
  • Page 260 Performance Tests Preparation The Performance Verification Procedure is divided in subsec­ tions to be able to check individual sections of the instrument when, it is not necessary to do a complete performance check. It is not necessary to remove the instrument cover to accomplish any subsection in the Performance Verification Procedure, since all checks are made using operator-accessible front-and-rear- panel controls and connectors.

  • Page 261: Horizontal Checks

    2. Check 500 kHz Trigger Sensitivity........C-20 3. Check 5 MHz Trigger Sensitivity....C-20 4. Check 60 MHz Trigger Sensitivity........C-21 5. Check TV Field Trigger Sensitivity......C-21 6. Check TV LINE Trigger Sensitivity....C-22 C- 7 2216 User Manual...

  • Page 262: Vertical Checks

    Performance Tests Vertical Checks These procedures check the characteristics for the vertical dis­ play system that are listed under Warranted Characteristics in Appendix B: Specifications. You should set up the test equipment as shown at the start of the procedure list. Changes to the test set-up will be indicated in the procedures, if necessary.
  • Page 263 MODE..........CH 1 (CH 2,3,4 Off) VOLTS/DIV........1 mV VARiable..........CAL AC-GND-DC........DC Horizontal POSITION Midrange MAG..SEC/DIV... 0,5 ms VARiable., Trigger HOLDOFF, Fully ccw Midrange LEVEL SLOPE..Positive Going MODE..AUTO SOURCE..,. VERT COUPLING 2216 User Manual C - 9...
  • Page 264 Performance Tests Procedure Steps Step 1. Check Deflection Accuracy a. Connect a 5 mV standard-amplitude signal from the calibra­ tion generator via a 50 Q BNC coaxial cable to the CH 1 input connector, b. CHECK ~ Deflection accuracy is within the limits given in Table C-2 for each CH 1 VOLTS/DIV switch setting and cor­...

  • Page 265: Check Non-Store (Analog) Bandwidth

    CHECK - That the frequency is greater thanlO MHz, m. Repeat part i, through 1. for 2 mV/Division. n. Repeat part i. through m. for CH 2, CH 3, and CH 4, o. Disconnect test equipment from the instrument. 2216 User Manual...

  • Page 266: Check High Frequency Compensation

    Performance Tests Step 3. Check High Frequency Compensation a. SET: 1 mV (CHI ,2,3,4) VOLTS/DIV..AC-DC-GND..DC (CHI,2,3,4} CH I (CH 2,3, and 4 Off) V ertical..... SEC/DIV.... 0.2 gs VERT Trigger SOURCE b. Connect the fast rise square-wave generator output from the Calibration Generator via a 50 G BNC coaxial cable, a 10X attenuator, a 2.5X attenuator and a 50 O BNC termination to the CH 1 input connector.
  • Page 267 Vertical (CH 1, 2, 3, 4) POSITION ... Midrange MODE..VOLTS/DIV 0.5 V VARiable..AC-GND-DC Horizontal POSITION......Midrange M AG........Off SEC/DIV.........50 ns VARiable......CAL Trigger HOLDOFF. Fully ccw LEVEL..Midrange SLOPE..Positive Going AUTO MODE..SOURCE ..VERT COUPLING 2216 User Manual C - 13...

  • Page 268: Check (Non-Store) Timing Accuracy And Linearity

    Performance Tests Procedure Steps Step 1. Check Non Store Timing Accuracy and Linearity a. Connect 50 ns time markers from the time-mark generator via a 50 Q BNC coaxial cable and a 50 H termination to the CH 1 input connector. b.
  • Page 269 “1” and "5" decade switch settings. When checking the “2 ” ranges, position the time markers on the sec­ ond and ninth vertical graticule lines. s. Press the CLEAR MENU button and disconnect the test- equipment from the 2216, 2216 User Manual C - 1 5...
  • Page 270 Performance Tests Table C-3 Settings for Timing Accuracy Checks Time-Mark Generator Setting SEC/DIV Switch Setting MAG XlO MAG X50 *1 ns 0.05 ps 50 ns ~2 ns 0.1 ps 10 ns 0.1 ps =4 ns 0.2 ps 0.2 ps 20 ns 10 ns 50 ns 0.5 ps...

  • Page 271: Triggering Checks

    Characteristics in Appendix B: Specifications, You should set up the test equipment as shown at the start of the procedure list. Changes to the test set-up will be indicated in the procedures, if necessary. 2216 User Manual C - 1 7...
  • Page 272 Performance Tests Equipment Required (See Table C-l) Calibration Generator (Hem 1) Leveled Sine-Wave Generator (Item 2) Low-Frequency Sine-Wave Generator (Item 4) TV Signal Generator (Item 6} Dual-Input Coupler (Item 8) 50 Q Coaxial Cable (Item 7) 50 Q BNC Termination (Item 11} 600 £2 BNC Termination (Item 12) Initial Control Settings Vertical...

  • Page 273: Check 500 Hz Trigger Sensitivity

    N e g a tiv e S fo p e N O R M P o s itiv e S lo p e N e g a tiv e S lo p e N O R M 2216 User Manual C - 19...

  • Page 274: Check 500 Khz Trigger Sensitivity

    Performance Tests Step 2. Check 500 kHz Trigger Sensitivity a. Connect the leveled sine-wave generator output via a 50 12 BNC coaxial cable and a 50 12 termination to the CH 1 input connector. Set the SEC/DIV to 2 ps. b.

  • Page 275: Check 60 Mhz Trigger Sensitivity

    CHECK - That a stable display is obtained. e. SET: IN'V........ON Trigger SLOPE..Positive Going f. CHECK - That a stable display is obtained. g. Disconnect the test equipment from tbe instrument. 2216 User Manual C - 21...
  • Page 276 Performance Tests Step 6. TV Line Trigger Sensitivity a. SET: Vertical MODE....CH 1 VOLTS/DIV (CH 1) ..1 V SEC/DIV......20 |A .s Trigger SLOPE....Negative Going Trigger MODE ....TV LINE b. Connect the TV signal generator video output to the CH 1 input connector via a 50 O BNC coaxial cable.

  • Page 277: Appendix D: Algorithms

    Appendix D: Algorithms Measurement Variables The 2216 oscilloscope measures several values that are used to cal­ culate measurements. High - is the 100% (highest) voltage reference value. High = Max See description of Maximum (Max) on page D-6) Low - is the 0% (lowest) reference value calculated.
  • Page 278 Algorithms Hysteresis - The hysteresis band is 10% of the waveform amplitude. It is used in. MCrossl, MCross'2, and calculation. to ss For example, once a crossing has been measured in negative direc­ tion, the waveform data must fall below 10% of the amplitude from the MidRef point before the measurement system is armed and ready for a positive crossing.
  • Page 279 MidRef + (Hysteresis x MCross2 Amplitudej~~~ ■ V - - - - - M i d R e f -------------- M idRef- (Hysteresis x Amplitude} Figure D-l: MCross Calculations Waveform [<0 ... RecordLength - 1>] - holds the acquired data. 2216 User Manual...
  • Page 280 Algorithms Measurement Algorithms The automated measurements are defined and calculated as follows. Amplitude Amplitude = High - Low Area The arithmetic area for one waveform. Remember that one waveform is not necessarily equal to one cycle. For cyclical data you may pre­ fer to use the cycle area rather than the arithmetic area.
  • Page 281 (EndCycle - StartCycle) x Samplelnterval Cycle Power The mean of the multiplication of two voltages over one cycle. If StartCycle = EndCycle then CyclePower= Waveforml[Start] x Waveform2[Start] Otherwise, Cycle Power {EndCycle ~ ~ StartCycle) x Samplelnterval 2216 User Manual D - 5...
  • Page 282 Algorithms Cycle RMS The true Root Mean Square voltage over one cycle. If St art Cycle = EndCycle then CycleRMS = Waveform]Start] Otherwise, Cycle RMS- {EndCycle - StartCycle) x Samplelnterval Frequency Timing measurement. The reciprocal of the period. Measured in Hertz (Hz) where 1 Hz = 1 cycle per second.
  • Page 283 Timing mea surement. The ratio of the negative pulse width to the signal period expressed as a percentage, NegativeWidth is defined in Negative Width below. If Period = 0 or undefined then return an error. NegativeWidth x 100% NegativeDutyCycle - Period 2216 User Manual D - 7...
  • Page 284 Algorithms Peak to Peak Amplitude measurement. The absolute difference between the maxi­ mum and minimum amplitude. PeoktoPeak = Max - Min Period Timing measurement. Time taken for one complete signal cycle. The reciprocal of frequency. Measured in seconds. Period = MCross3 - MCrossl Positive Duty Cycle Timing measurement.
  • Page 285 {End ~ Start) x Samplelnterval Amplitude (voltage) measurement. The true Root Mean Square volt­ age. If Start - End then RMS = the value at Waveform [Start], Otherwise, [Waveform{t)}2dt RMS = {End ~ Start) x Samplelnterval 2216 User Manual D - 9...
  • Page 286 Appendix D: Algorithms D - 1 0...

  • Page 287: Appendix E: Crt Readout

    H oldoff Value Measurement Result Record View Vertical Channel la n d 3 (non-store) CH-1,3 in v e rt CH-1,3 CH-1,3 CH-2,4 CH-2,4 Uncal C oupling Uncal C oupling Figure E-l: CRT Readout Display Fields 2216 User Manual E - l...
  • Page 288 CRT Readout Readout Overview On the rows in the upper graticule divisions the following read­ outs are displayed: Cursor Source Cursor Type Cursor Measurement Value Trigger ~ Trigger Coupling or Value Trigger Source Holdoff percentage Record View Bar Measurement Results On the rows in the bottom graticule divisions the following read­...
  • Page 289 PAIRED cursors are typically AT/l/AT (TIME) cursors, but the voltage difference between the crossing points of the cursors and the displayed signal are also measured and displayed as @ V (absolute value). 2216 User Manual E - 3...
  • Page 290 CRT Readout Cursor Units The Cursor Delta Value indicates the distance between the two cursors. The units in which the value is expressed, will depend upon the cursor type. Possible units are: % (percent) 0 (degrees) V (Volts) s (seconds), Hz (Herz) Custom Units Possible prefixes are : n(nano)
  • Page 291 TIMED position, after one of the front panel control settings has been changed. Measurement Results Results from automated measurements are displayed on the right side of the crt on the third and fourth division. 2216 User Manual E - 5...
  • Page 292 CRT Readout Lower Readouts Vertical Channel Selection The Vertical Channel fields show which channel has been se­ lected. The upper channel readouts are split -up respectively in CH 1 and CH 2, and the lower channel readouts in CH 3 and CH 4. If a channel is switched off, the readout is also removed from the screen.
  • Page 293 ADDRessed to Talk or Listen. Remote Control (REM) The REM readout field is used by instruments with an optional interface option (Option 10 and/or 12), The readout indicates that the instrument is in the REMote control state. 2216 User Manual E - 7...
  • Page 294 CRT Readout Printing (PRN) The PRN readout field is active if the instrument is sending data to a printer/plotter in the HARDCOPY mode, Appendix E: CRT Readout E - 8...

  • Page 295: Appendix G: Glossary

    The waveform displayed on the oscilloscope may have a lower frequency than the actual input signal. Can cause excessive measurement and other errors. 2216 User Manual G - l...
  • Page 296 Glossary Amplitude The High waveform value less the Low waveform value. Area Measurement of the waveform area taken over the entire waveform or gated region. Expressed in volt-seconds. Area above ground is positive; area below ground is negative. Attenuation The degree of reduction in amplitude as a signal passes through an attenuating device such, as a probe or attenuator.
  • Page 297 A measurement of waveform area taken over to one cycle. Expressed in volt-seconds. Area above ground is positive; area below ground is negative. Cycle mean An amplitude (voltage) measurement of the arithmetic mean over one cycle. 2216 User Manual G - 3...
  • Page 298 Glossary Cycle Power Power measurement. The arithmic mean over the first cycle of the active waveform (or the first cycle in the gated region) over the product of both waveforms Cycle RMS The true Root Mean Square voltage over one cycle. DC Coupling A means to pass both AC and DC frequency components of the in­...
  • Page 299 Glossary Frequency Timing measurement. The reciprocal of the period. Measured in Hertz (Hz) where 1Hz = 1 cycle per second. Gated Measurements A feature that lets you limit automated measurements to a specified portion of the waveform. You define the area of interest using the vertical cursors.
  • Page 300 Major Division One mark dividing the screen either horizontally or vertically for measurement purposes. The 2216 has eight major vertical divisions and ten major horizontal divisions. Maximum Amplitude (voltage) measurement of the maximum amplitude. Typi­...
  • Page 301 Minor Division Subdivision of major divisions for more accurate measurement. Mi­ nor divisions are seen as marks along the horizontal and vertical center lines. The 2216 has five minor divisions in each major divi­ sion in both directions. Negative duty cycle A timing measurement representing the ratio of the negative pulse width to the signal period, expressed as a percentage.
  • Page 302 Glossary Oscilloscope An instrument for making a graph of two factors. These are typically voltage versus time, Peak-to-Peak Amplitude (voltage) measurement. The absolute difference between the maximum and minimum amplitude. Period Timing measurement. Time it takes for one complete signal cycle. The reciprocal of frequency.
  • Page 303 The oldest sample, the one at the left edge of the screen, is erased. This gives the effect of the waveform continuously scrolling across the screen from right to left. 2216 User Manual G -9...
  • Page 304 Glossary RS-232 A communication interface that can be used to control the instru­ ment and capture data remotely from a computer. Sample One point of the waveform. Sample Acquisition Mode The oscilloscope creaes a record point by saving the first sample during each acquisition interval.
  • Page 305 Trigger The event that tells the oscilloscope to start acquiring and display­ ing a waveform in store mode, or to start the time base to display a waveform in non-store mode. 2216 User Manual G - 11...
  • Page 306 Trigger Level The level the trigger signal must cross to generate a trigger. Trigger Light A light on the 2216 front panel, labelled TRIG'D, that indicates when the instrument has acquired a trigger. Trigger Mode The way in which the instrument acquires a trigger.
  • Page 307 A mode in which both the horizontal and the vertical axes of the instrument represent volts per division, Y-t Format A display where the vertical position of the displayed waveform reflects signal level and the horizontal position reflects time. 2216 User Manual G - 1 3...
  • Page 308 Appendix G: Glossary G- 14...

  • Page 309: Appendix M:maintenance And Repair

    Appendix M:Maintenance and Repair The 2216 is covered by a standard Tektronix three-year warranty. If the 2216 fails during the warranty period, return it to Tektronix for free servicing (subject to the conditions of the warranty state­ ment). To arrange for warranty service or get an estimate for out-of-war­...

  • Page 310: Repackaging For Shipment

    375 pounds. Step 2. If the instrument is being shipped to a Tektronix Serv­ ice Center for repair or calibration, attach a tag to the instrument showing: The owner of the instrument and address.
  • Page 311 During normal operation, this will occur when the two alkaline batteries inside the instrument, are low (typical battery life is more than three years). Contact your Tektronix Service Center to replace the batteries. M - 3 2216 User Manual...
  • Page 312 Appendix M: Maintenance & Repair M - 4...

  • Page 313: Appendix P:probes

    Active Voltage Probes Current Probes Differential Probes Probe Connection The 2216 standard instrument is supplied with two xlO probes (Tektronix type P6109B) which are useful for a wide variety of tasks. For special measurement situations, you need different probes. Additional probes are optional (listed in Appendix A).

  • Page 314: Passive Voltage Probes

    General Purpose (High Input Resistance) Probes These are considered "typical” oscilloscope probes. Two passive probes are included with the 2216, The high input resistance of passive probes (typical 10 MO) provides negligible DC loading. Their capacitive loading however, can distort timing and phase measurements.

  • Page 315: Active Voltage Probes

    The dynamic range of active probes is typically ±10 to ± 15 V. Some active probes are also referred to as "FE E T " probes. The 2216 works with the P6202A FET probe and the 1101A probe power supply for the P62G2A.

  • Page 316: Current Probes

    Current probes can also make differential measurements by measuring the results of two opposing currents in the jaws of the probe. A variety of Tektronix current probes can be applied in the 2216 oscilloscope, including: The A6302/A6303, with an AM503 current probe amplifier in a TM502A power module, which provides you the capability to measure both AC and DC currents with one probe.

  • Page 317: Differential Probes

    The Tektronix P6048 Differential Probe can be used with a 2216. This is a 100 MHz differential amplifier in probe form which connects one oscilloscope input channel.
  • Page 318 Probes Table P-1: Summary of Tektronix Measurement Probes for the 2216 Oscilloscope Bandwidth Probe Description/ Loading at - 3 dB Type Attenuation ( K > k ) P6101B IX Passive Probe 1 M Q , 100 pF DC to 15 MHz...

  • Page 319: Probe Connection

    You can make reliable signal measurements when the 2216 and the Unit Under Test are con­ nected by a common reference (ground lead) in addition to the signal lead or probe, A separate ground lead can also be con­...
  • Page 320 Probes Misadjustment of Probes Misadjustment of the probe compensation is a common source of measurement error. Probes should be compensated whenever the probe is moved from one oscilloscope to another or between channels on the same oscilloscope For probe adjustment, see page 1-25. P - 8 Appendix P: Probes...
