8. Room Light System
A: WIRING DIAGRAM
1. INTERIOR LIGHT
<Ref. to WI-267, WIRING DIAGRAM, Interior Light
System.>

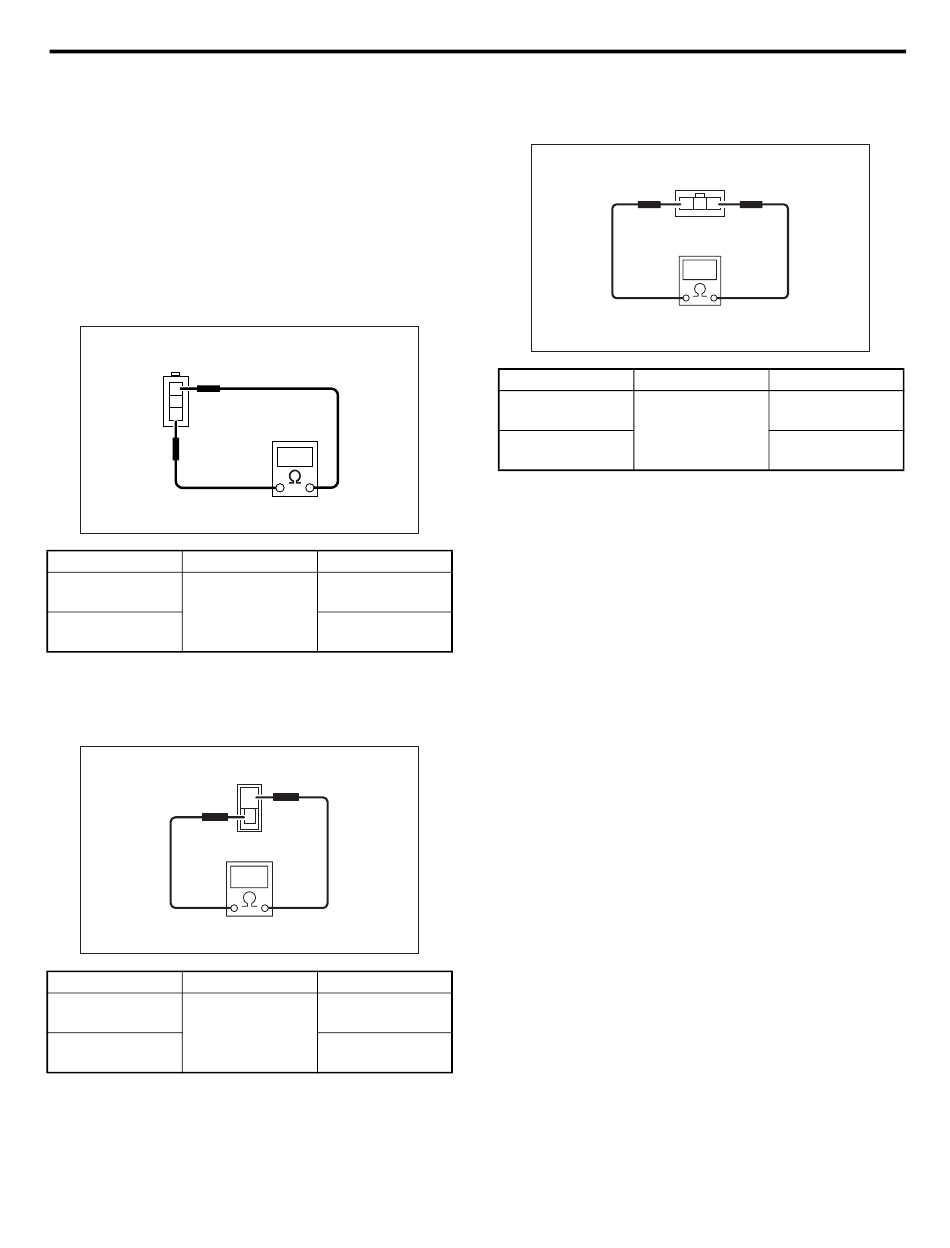

B: INSPECTION
1. DOOR SWITCH
Measure the resistance between door switch termi-
nals.
1
2
3
Switch position Terminal No.
When door is
opened
1 and 3
When door is
closed
2. REAR GATE LATCH SWITCH
Measure the resistance between rear gate latch
switch terminals.
Switch position Terminal No.
When rear gate is
opened
1 and 2
When rear gate is
closed
Room Light System
LI-00007
Standard
Less than 1 Ω
More than 1 MΩ
1
2
LI-00276
Standard
Less than 1 Ω
More than 1 MΩ
3. TRUNK ROOM LIGHT SWITCH
Measure the resistance between trunk room light
switch terminals.
Switch position
When trunk lid is
opened
When trunk lid is
closed
LI-9
LIGHTING SYSTEM
3 2 1
LI-00277
Terminal No. Standard
Less than 1 Ω
1 and 3
More than 1 MΩ
