3. How to Install
NB!
The current rating of drives in D3 and D4 frames are de-rated by 3%, when adding the NEMA 3R kit. Drives in E2 frames require no
derating
NB!
A doorfan(s) is required on the Rittal cabinet to remove the loses not contained in the backchannel of the drive. The minimum doorfan
3 (s) airflow required for the D3 and D4 is 391 m^3/h (230 cfm). The minimum doorfan(s) airflow required for the E2 is 782 m^3/h (460
cfm). If additional components, heat loses, are added within the enclosure a calculation must be made to ensure the proper airflow is
provided to cool the inside of the Rittal enclosure.
Kit contents:
• Ductwork components
• Mounting hardware
• 16 mm, M5 torx screws for top vent cover
• 10 mm, M5 for attaching drive mounting plate to enclosure
frame
• M10 nuts to attach drive to mounting plate
• Gasket material
NB!
Please see the instructions

3.4.3. Installation on pedestal

This section describes the installation of a pedestal unit available for the
VLT series frequency converters frames D1 and D2. This is a 200 mm high
pedestal that allows these frames to be floor mounted. The front of the
pedestal has openings for input air to the power components.
The frequency converter gland plate must be installed to provide ade-
quate cooling air to the control components of the frequency converter
via the door fan and to maintain the IP21/NEMA 1 or IP54/NEMA 12 de-
grees of enclosure protections.
There is one pedestal that fits both frames D1 and D2. Its ordering number is 176F1827. The pedestal is standard for E1 frame.
40
Torque requirements:
175R5922
for further information
MG.33.U2.02 - VLT ® is a registered Danfoss trademark
VLT
Operating Instructions High Power
1. M5 screws/ nuts torque to 20 in-lbs (2.3 N-M)
2. M6 screws/ nuts torque to 35 in-lbs (3.9 N-M)
3. M10 nuts torque to 170 in-lbs (20 N-M)
4. T25 Torx screws torque to 20 in-lbs (2.3 N-M)

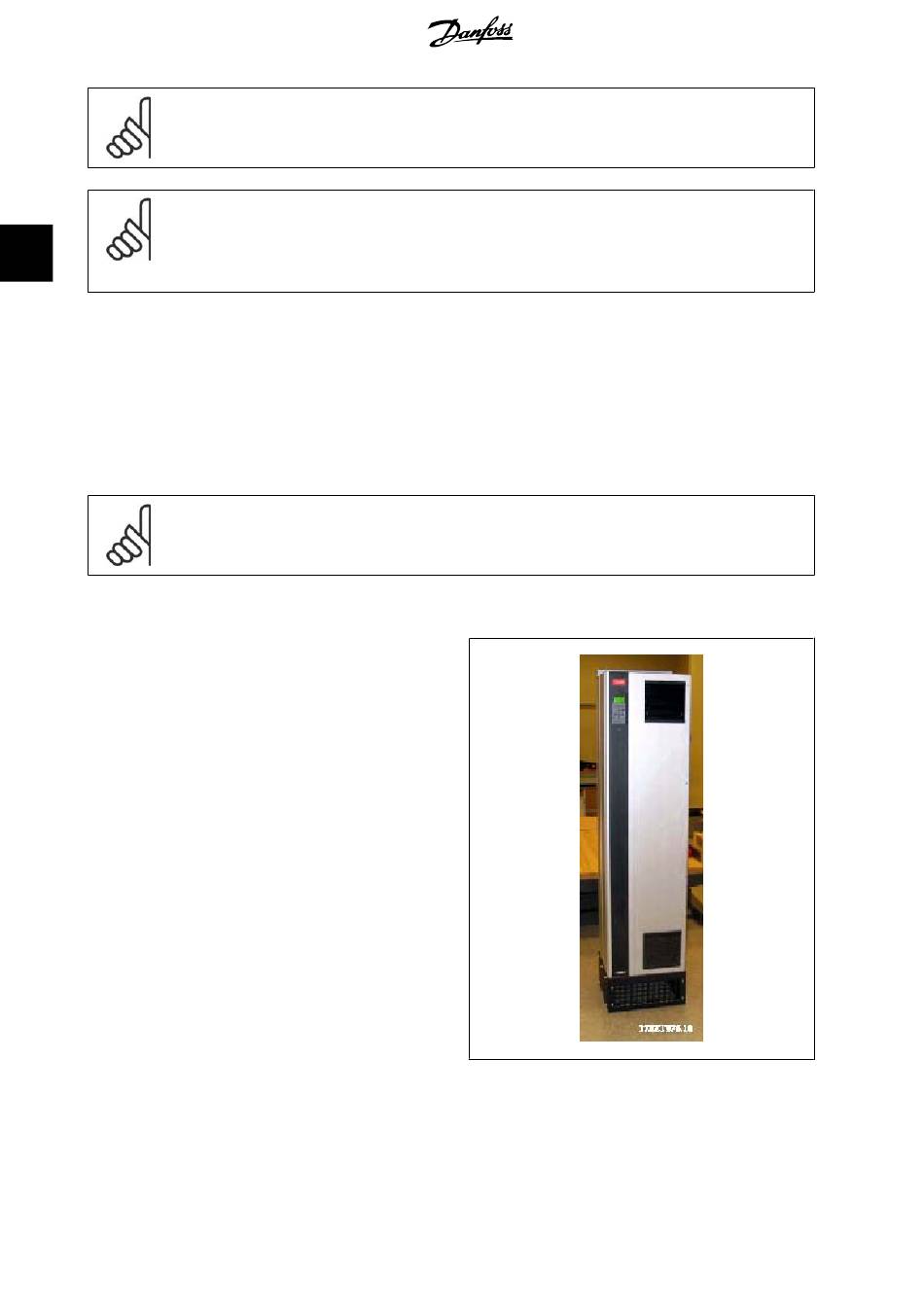

Illustration 3.28: Drive on pedestal
®
Automation Drive FC 300
