3.5.4. Installation on pedestal

The adjustable frequency drive can also be installed on the floor. A dedicated floor stand is de-
signed for that purpose. It can only be used for units produced after week 50, 2004 (serial number
XXXXXG504).
This section describes the installation of a pedestal unit available for the VLT series adjustable
frequency drives frames D1 and D2. This is an 8 in [200 mm] high pedestal that allows these
frames to be floor mounted. The front of the pedestal has openings for input air to the power
components.
The adjustable frequency drive gland plate must be installed to provide adequate cooling air to
the control components of the adjustable frequency drive via the door fan and to maintain the IP
21/NEMA 1 or IP 54/NEMA 12 degrees of enclosure protections.
There is one pedestal that fits both frames D1 and D2.
Required Tools:
•
•
Torques:
•
•
•
Kit Contents:
•
•
The kit contains a U-shaped piece, a vented
front cover, 2 side covers, two front brackets
and the required hardware to assemble. See
the exploded view of the installation, illustra-
tion
130BA647).
Socket wrench with 7-17 mm sockets
T30 Torx Driver
M6 - 4.0 Nm (35 in-lbs)
M8 - 9.8 Nm (85 in-lbs)
M10 - 19.6 Nm (170 in-lbs)
Pedestal parts
Instruction Manual
"Three front screws"
®
MG.20.P1.22 - VLT is a registered Danfoss trademark.

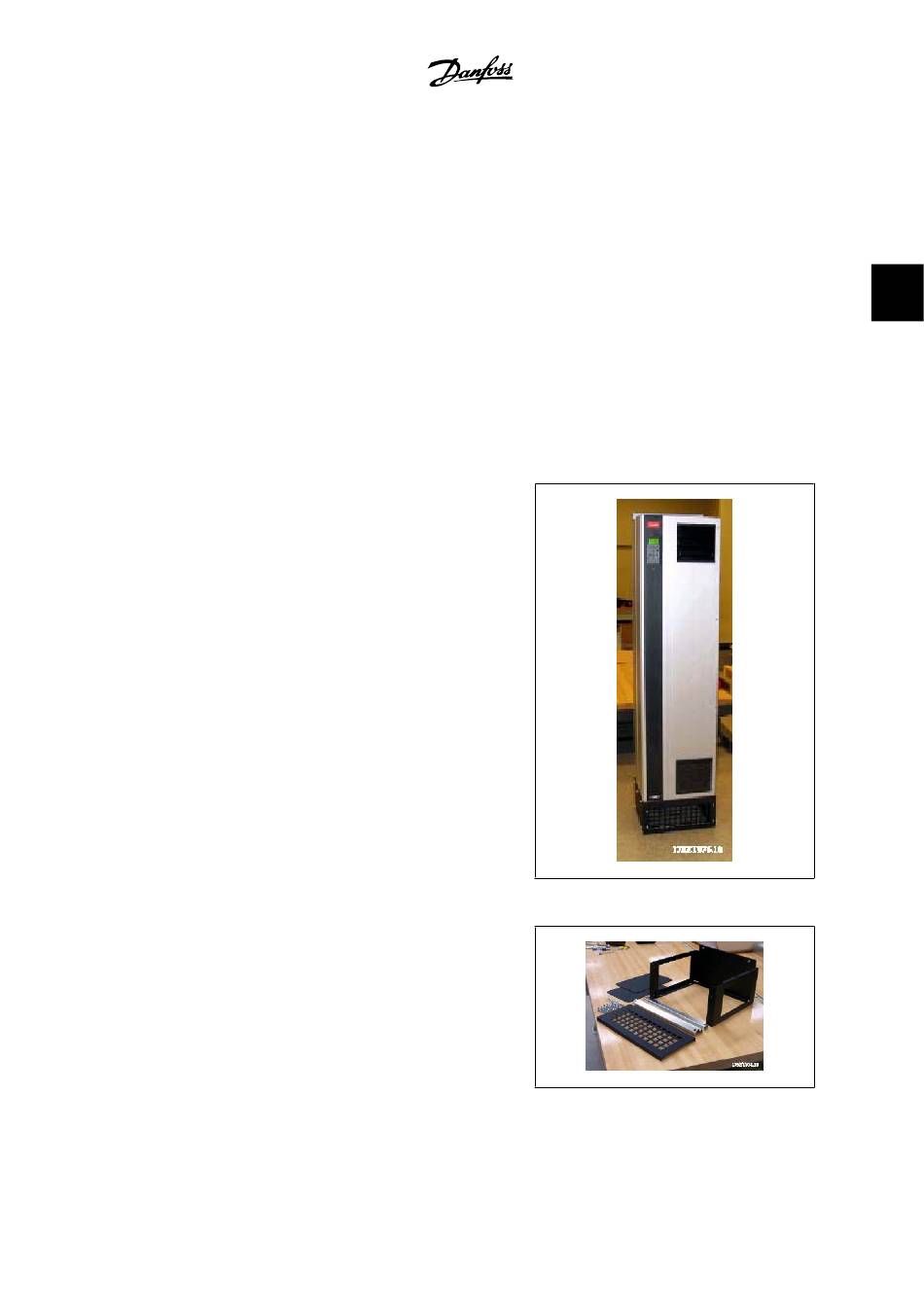

3.60: Drive on pedestal.
(drawing
3.61: Pedestal parts
