Dvb Service; Configuration - AMX Vision 2 Operation/Reference Manual

DVB Service

DVB Service
2
The Vision DVB Service provides and manages a single Digital Video Broadcast (DVB) multiplex of live TV
channels to the system. Terrestrial, satellite, and cable TV providers now use a digital rather than analog
transmission systems to deliver their content. Where previously a single frequency was required for each TV
channel, by using digital compression, multiple channels can be provided on a single frequency (known as a
multiplex or bouquet). The DVB service de-multiplexes the individual TV channels on a selected frequency
and makes each individual channel available for multicasting to users.

Configuration

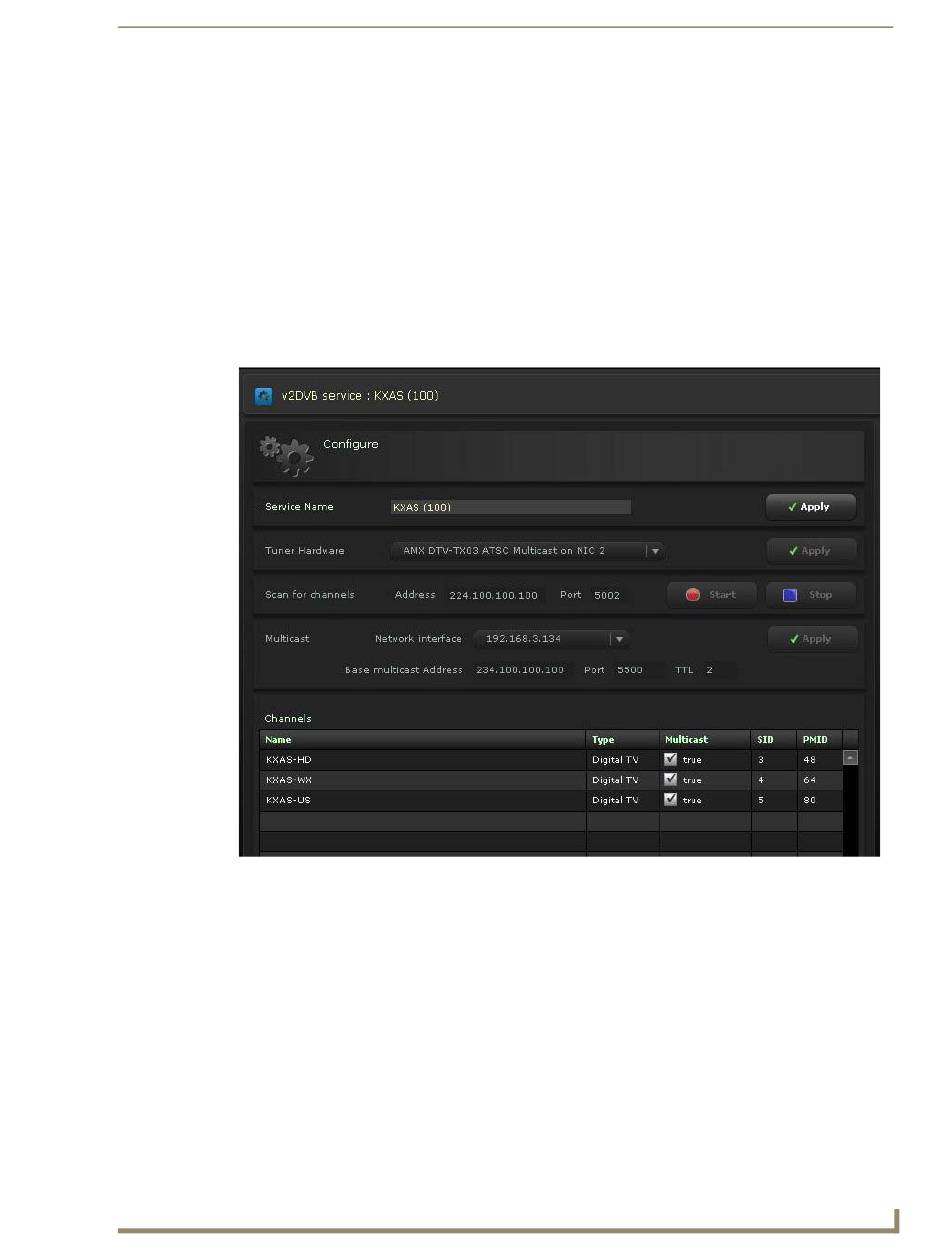

When you select the Configure DVB from the DVB Service Menu the following page appears (FIG. 75).
FIG. 75 Configure DVB Service
2
Vision Operation/Reference Guide 81
