AMX AXF-S AXCESS SERVER CARDFRAME (WITH AXC-S CARD) Reference Manual

Overview

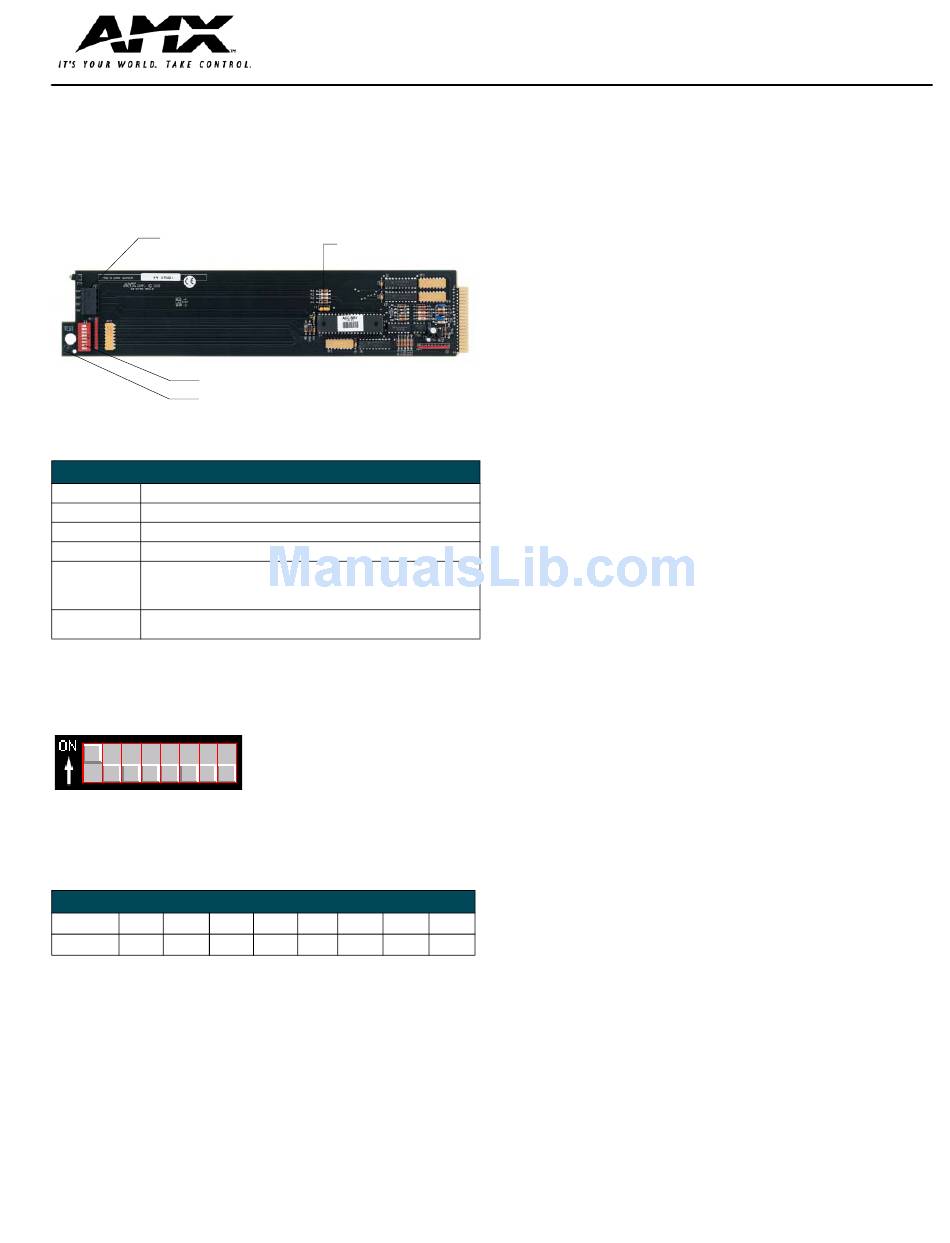

The AXC-S CardFrame Server Card (FIG. 1) is a processor card that
manages communication among control cards in a CardFrame. This card is
included in both a Master (AXF-M/S) and Server (AXF-S) CardFrame.
This card is essential to convert AXlink signals and communicate
backplane signals to the other AXC cards present in a CardFrame.
P2 AXLink connector
S1 DIP switch
Handling grip
FIG. 1
AXC-S Server Card (side view)
Specifications
AXC-S Specifications
Power 30 mA @ 12 VDC
Processor Motorola MC68HC705
Mounting Inserts into the CS slot in an Axcess CardFrame
Program Chip Onboard OTP (One Time Programmable) chip
LED Indicators • CR1 (AXlink) indicates transmission of data
• Full On - indicates no communication with master
• Full Off - indicates no power being received by unit
• One blink/second - indicates normal operation
AXLink Connector • Front connector used for AXlink communication.
• Also used for daisy-chaining several CardFrames together.
Setting the AXlink Device DIP switch (S5)
The eight-position Device DIP switch (S1), shown in FIG. 2 assigns the
value to the CardFrame using the AXC-S card. The Device DIP switch
example is set to 1, the factory default setting.
1 2 3 4 5 6 7 8
FIG. 2
DIP switch (S1)
The AXlink device number range is 1-255. The Device DIP switch positions
determines their values, based on the following table.
Device DIP Switch (S1) Settings and Values
Position 1 2 3
Value 1 2 4
The dip switch sets the first address of the card frame with the other 15
slots following in order.
For example: if set to one, the card frame addresses are set from 1 to 16.
If set to two, the card frame addresses are set from 2 to 17.
The highest number allowable on the dip switch is 240 which would
make the last device address 255.
One time programmable chip
(OTP)
AXlink
DIP switch
(S1)
4 5 6 7 8
8 16 32 64 128
AXC-S
Installation
1. Locate the CS (Card Server) slot on the front of the Axcess
CardFrame.
2. Grasp the card from the handling grip location.
3. Slide the AXC-S card into the CardFrame until the rear connectors
"snap" into place.
4. Verify a secure connection to the rear of the unit.
5. Apply power to the CardFrame and verify a "one-blink" pattern on the
AXlink LED (CR1). Refer to the CR1 Specifications for more
information on blink patterns.
Reference Guide
CardFrame Server Card
