Thumbnail Viewer

Thumbnail Viewer Screen

The thumbnail viewer screen (FIG. 104) consists of two main areas:



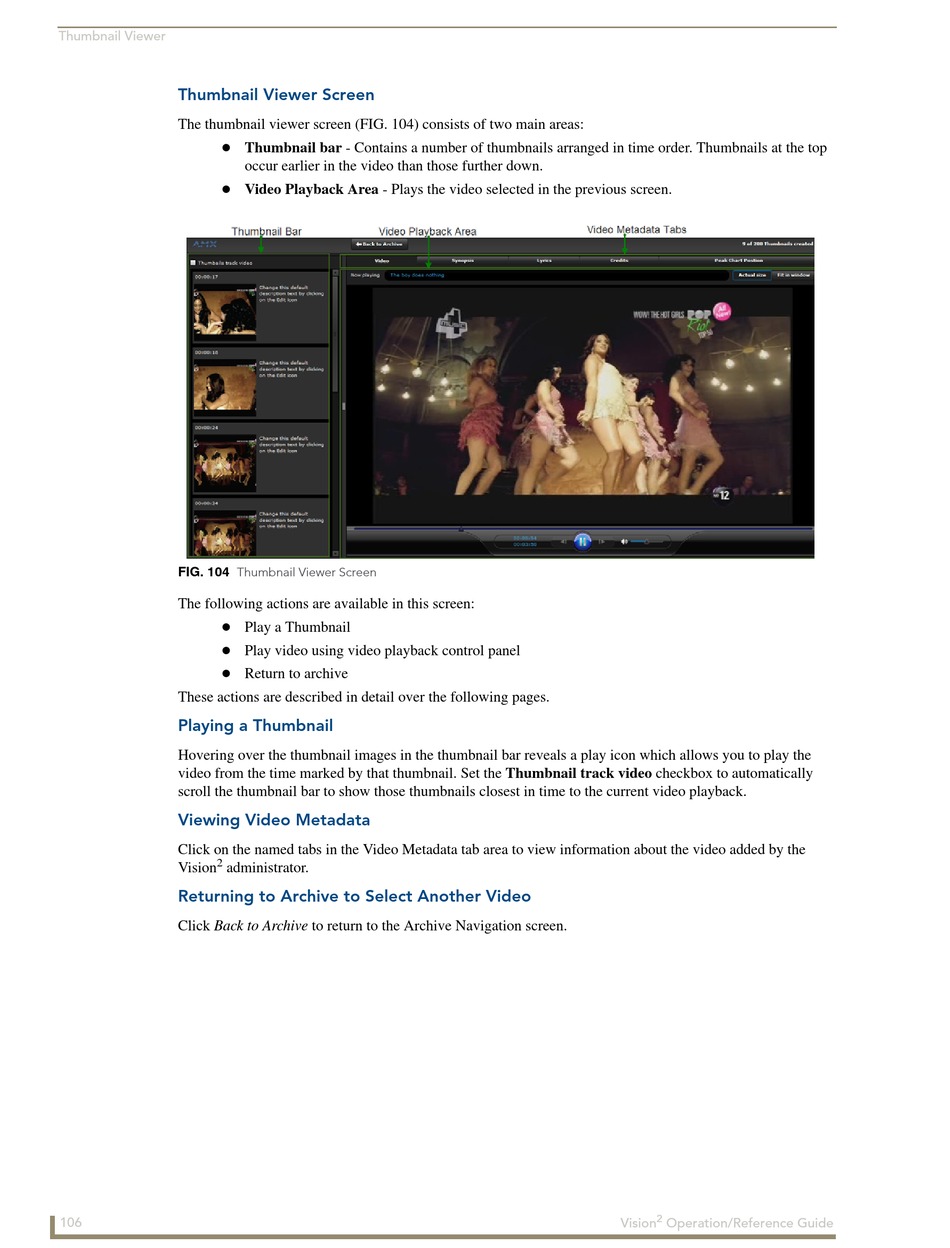

FIG. 104 Thumbnail Viewer Screen
The following actions are available in this screen:



These actions are described in detail over the following pages.

Playing a Thumbnail

Hovering over the thumbnail images in the thumbnail bar reveals a play icon which allows you to play the
video from the time marked by that thumbnail. Set the Thumbnail track video checkbox to automatically
scroll the thumbnail bar to show those thumbnails closest in time to the current video playback.

Viewing Video Metadata

Click on the named tabs in the Video Metadata tab area to view information about the video added by the
2
Vision administrator.

Returning to Archive to Select Another Video

Click Back to Archive to return to the Archive Navigation screen.
106
Thumbnail bar - Contains a number of thumbnails arranged in time order. Thumbnails at the top
occur earlier in the video than those further down.
Video Playback Area - Plays the video selected in the previous screen.
Play a Thumbnail
Play video using video playback control panel
Return to archive
