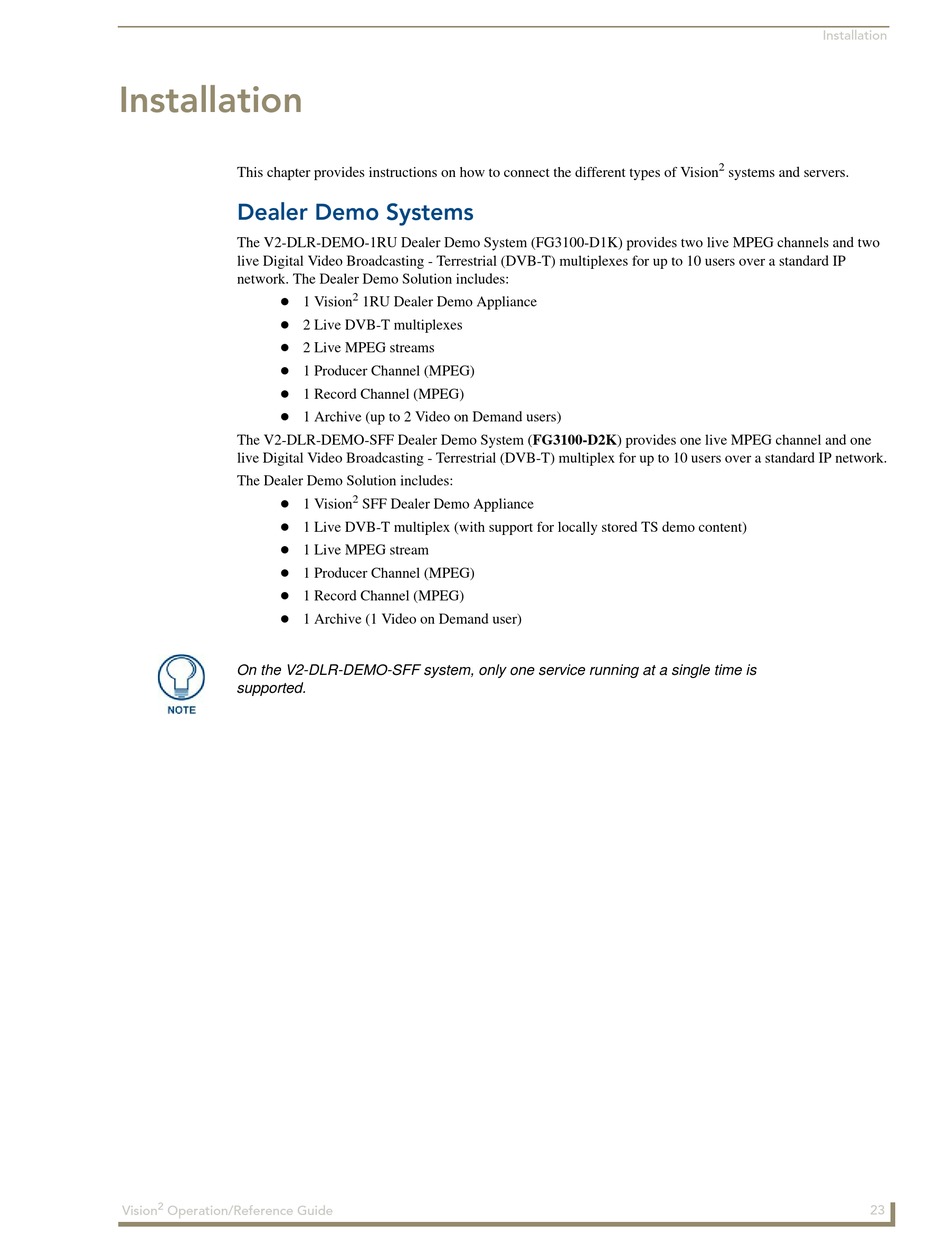

Installation

This chapter provides instructions on how to connect the different types of Vision

Dealer Demo Systems

The V2-DLR-DEMO-1RU Dealer Demo System (FG3100-D1K) provides two live MPEG channels and two
live Digital Video Broadcasting - Terrestrial (DVB-T) multiplexes for up to 10 users over a standard IP
network. The Dealer Demo Solution includes:






The V2-DLR-DEMO-SFF Dealer Demo System (FG3100-D2K) provides one live MPEG channel and one
live Digital Video Broadcasting - Terrestrial (DVB-T) multiplex for up to 10 users over a standard IP network.
The Dealer Demo Solution includes:






On the V2-DLR-DEMO-SFF system, only one service running at a single time is
supported.
2
Vision Operation/Reference Guide
2
1 Vision 1RU Dealer Demo Appliance
2 Live DVB-T multiplexes
2 Live MPEG streams
1 Producer Channel (MPEG)
1 Record Channel (MPEG)
1 Archive (up to 2 Video on Demand users)
2
1 Vision SFF Dealer Demo Appliance
1 Live DVB-T multiplex (with support for locally stored TS demo content)
1 Live MPEG stream
1 Producer Channel (MPEG)
1 Record Channel (MPEG)
1 Archive (1 Video on Demand user)
Installation
2
systems and servers.
