Installation
The following table lists the configuration options. Use the up and down cursor buttons on the remote control
to select an option. Use the left and right cursor buttons to change the setting of the selected option. Press the
OK button to apply the new setting.
Configuration Options
TV Standard
Resolution
Aspect Ratio
Connection

STB-04 Menus

2
Vision contains a Template Editor application for the STB-04 which enables you to create custom user
interfaces for your set-top box. The application is available to any user with server access. The application is
accessible by using a web browser and navigating to the following location:
http://<server name>/tedit.aspx
You must load the STB-04 set-top box with firmware version 2.3.4 or higher.

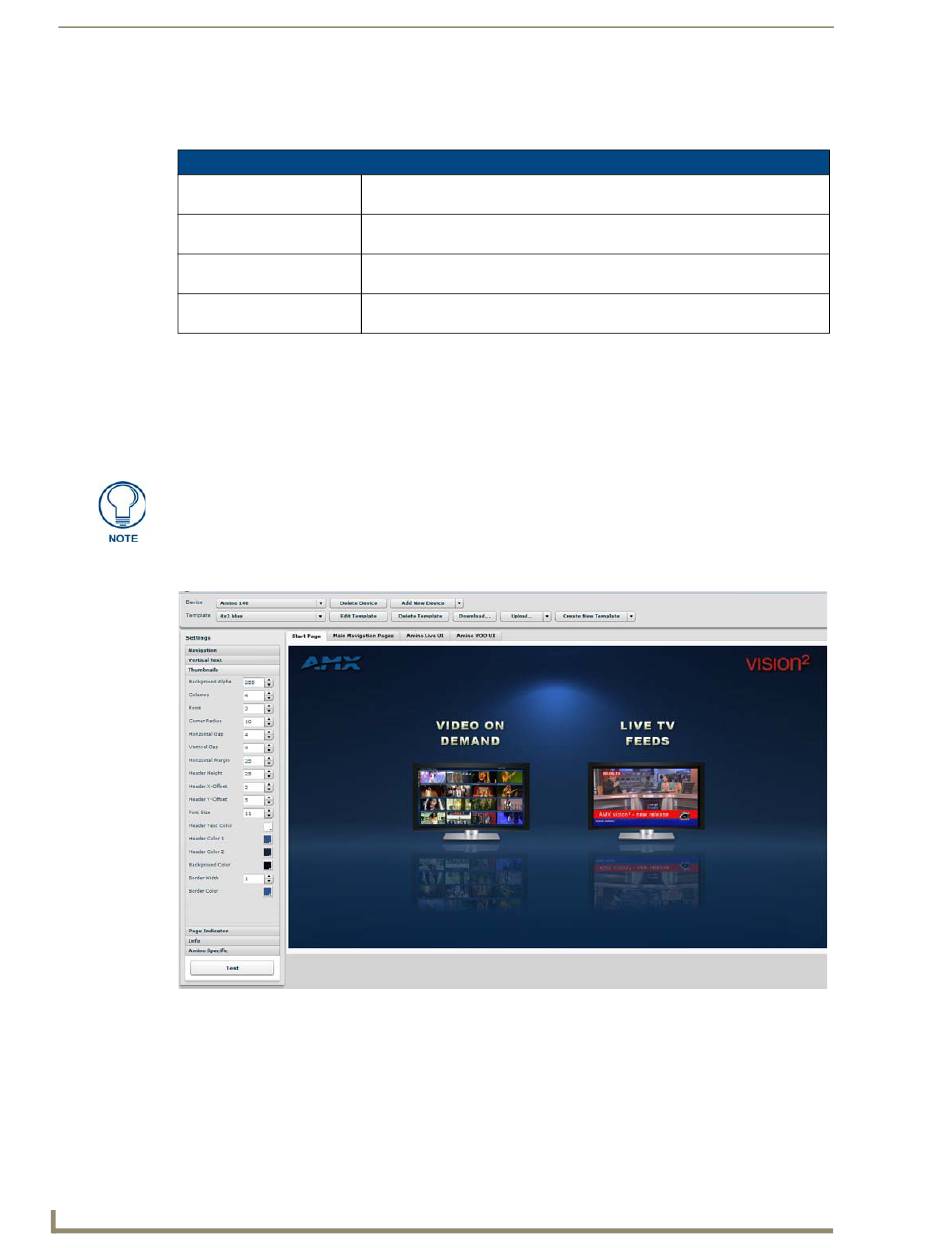

FIG. 38 displays the main screen you see when you access the Template Editor application.
FIG. 38 Template Editor - Main screen
38
Enables you to indicate the television standard you are using. You can select
NTSC or PAL.
Enables you to select the resolution you want to display. You can select SD or
any of several specific resolutions available for your display.
Enables you to set the aspect ratio for your video display. You can select
Widescreen, Letterbox, Panscan, or Ignore.
Indicates the type of connection used to transmit the video signal to the output
display.
