Set-Top Boxes - AMX Vision 2 Operation/Reference Manual

Wiring and Device Connections

Set-Top Boxes

The STB-02SB (FG3100-61), STB-03CC (FG3100-62), and STB-04 Set-Top Boxes (FG3100-65) support
viewing live programming via a producer channel or a MPEG encoder. The set-top boxes access your Vision
server and display available programming on a connected video source. The set-top boxes are used only for
MPEG content. They support viewing MPEG Video on Demand, but support only Stop, Play, and Pause
features.
FIG. 10
STB-02SB Set-Top Box

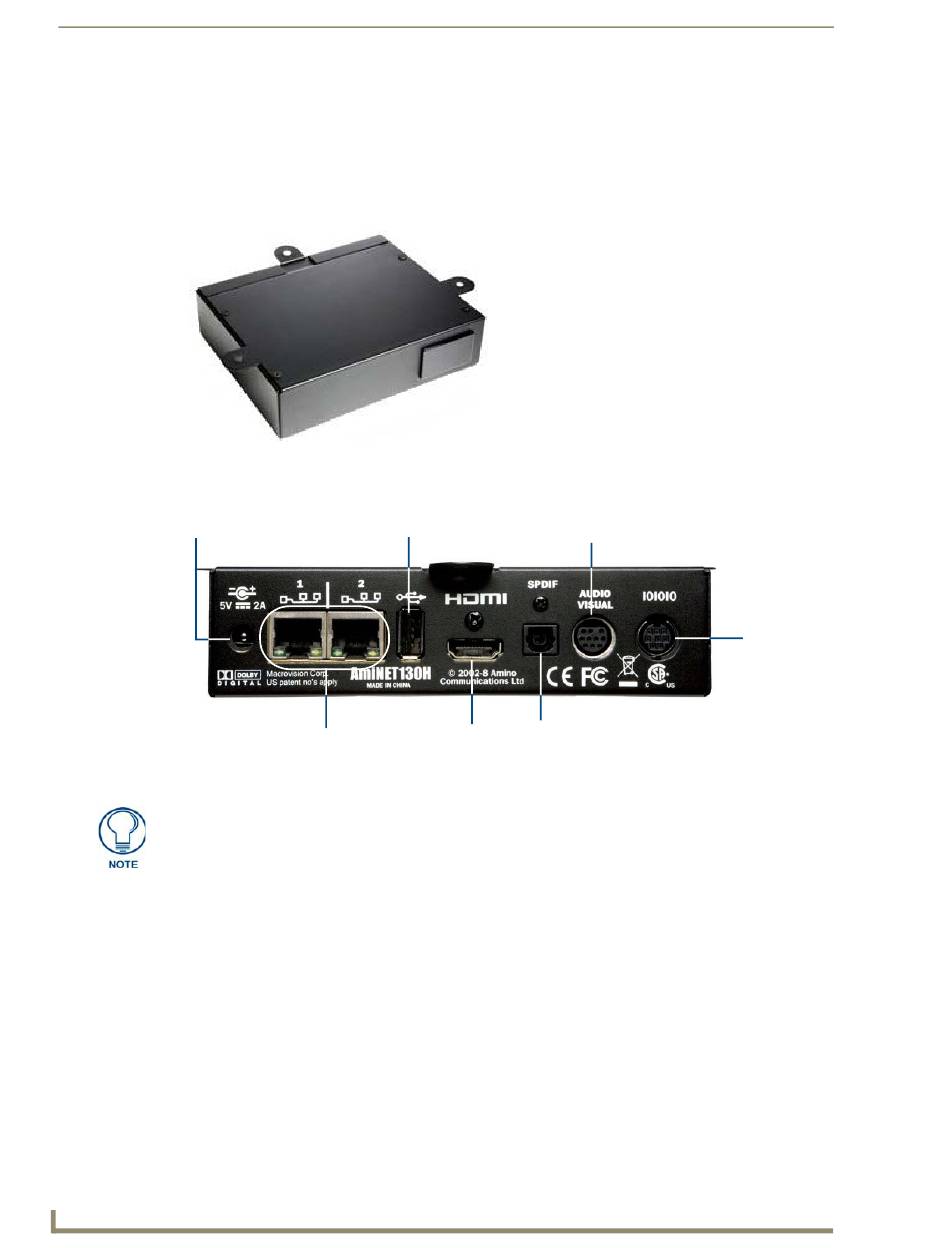

FIG. 11 displays the rear panel of the STB-02SB and STB-03CC Set-Top boxes.
Power
FIG. 11 STB-02SB and STB-03CC Set-Top Box (rear-view)
The Set-Top Boxes have a limit of 18Mbps. Heavy traffic loads can cause the set-top
box to reset itself periodically.
20
USB port
HDMI port
LAN ports
Audio/Video port
Optical
audio port
2
Vision Operation/Reference Guide
2
IR extender/
TVI port
