V2-PVA 15TB Powervault Storage Archive

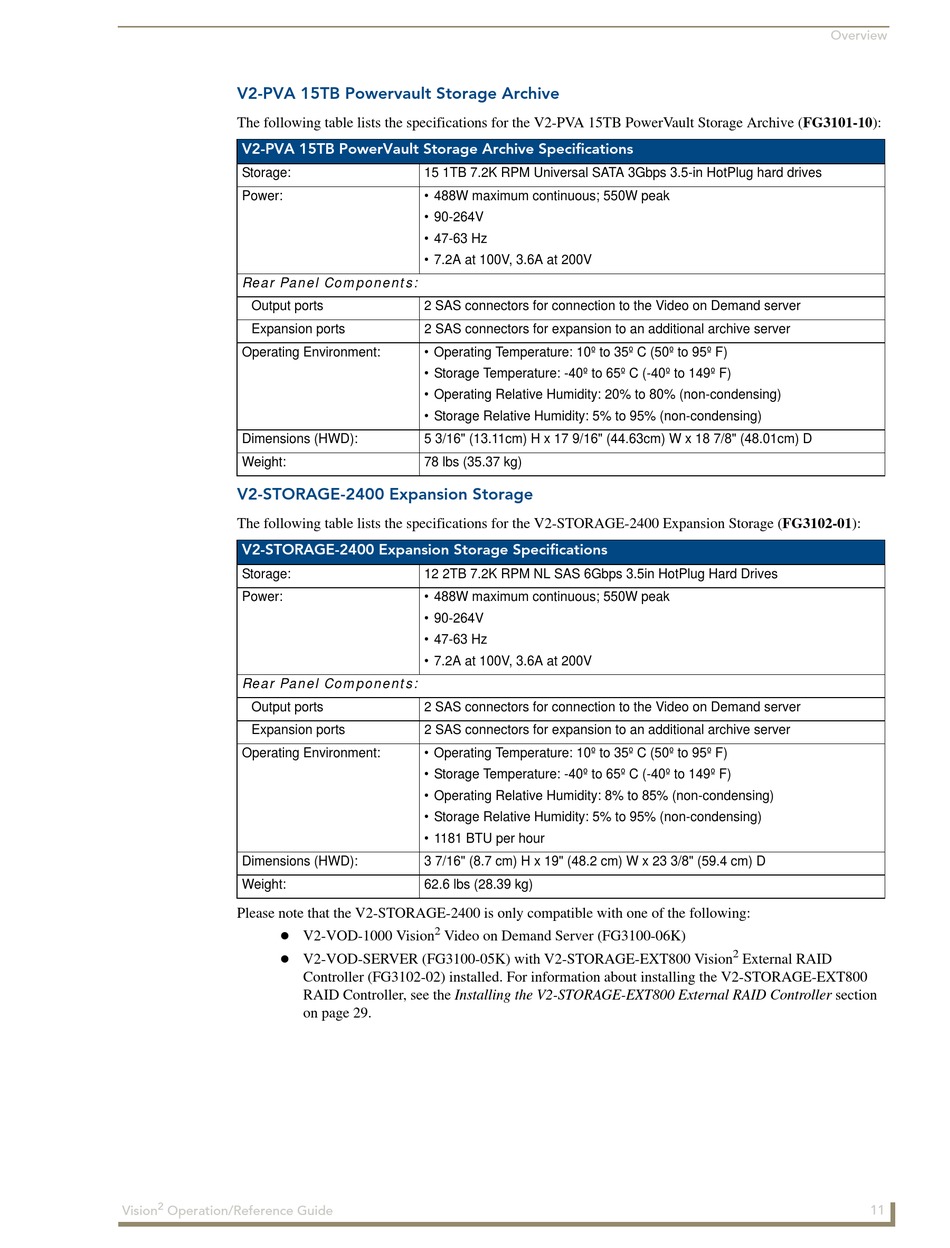

The following table lists the specifications for the V2-PVA 15TB PowerVault Storage Archive (FG3101-10):
V2-PVA 15TB PowerVault Storage Archive Specifications
Storage:
Power:
Rear Panel Components:
Output ports
Expansion ports
Operating Environment:
Dimensions (HWD):
Weight:

V2-STORAGE-2400 Expansion Storage

The following table lists the specifications for the V2-STORAGE-2400 Expansion Storage (FG3102-01):
V2-STORAGE-2400 Expansion Storage Specifications
Storage:
Power:
Rear Panel Components:
Output ports
Expansion ports
Operating Environment:
Dimensions (HWD):
Weight:
Please note that the V2-STORAGE-2400 is only compatible with one of the following:


2
Vision Operation/Reference Guide
15 1TB 7.2K RPM Universal SATA 3Gbps 3.5-in HotPlug hard drives
• 488W maximum continuous; 550W peak
• 90-264V
• 47-63 Hz
• 7.2A at 100V, 3.6A at 200V
2 SAS connectors for connection to the Video on Demand server
2 SAS connectors for expansion to an additional archive server
• Operating Temperature: 10º to 35º C (50º to 95º F)
• Storage Temperature: -40º to 65º C (-40º to 149º F)
• Operating Relative Humidity: 20% to 80% (non-condensing)
• Storage Relative Humidity: 5% to 95% (non-condensing)
5 3/16" (13.11cm) H x 17 9/16" (44.63cm) W x 18 7/8" (48.01cm) D
78 lbs (35.37 kg)
12 2TB 7.2K RPM NL SAS 6Gbps 3.5in HotPlug Hard Drives
• 488W maximum continuous; 550W peak
• 90-264V
• 47-63 Hz
• 7.2A at 100V, 3.6A at 200V
2 SAS connectors for connection to the Video on Demand server
2 SAS connectors for expansion to an additional archive server
• Operating Temperature: 10º to 35º C (50º to 95º F)
• Storage Temperature: -40º to 65º C (-40º to 149º F)
• Operating Relative Humidity: 8% to 85% (non-condensing)
• Storage Relative Humidity: 5% to 95% (non-condensing)
• 1181 BTU per hour
3 7/16" (8.7 cm) H x 19" (48.2 cm) W x 23 3/8" (59.4 cm) D
62.6 lbs (28.39 kg)
2
V2-VOD-1000 Vision Video on Demand Server (FG3100-06K)
V2-VOD-SERVER (FG3100-05K) with V2-STORAGE-EXT800 Vision
Controller (FG3102-02) installed. For information about installing the V2-STORAGE-EXT800
RAID Controller, see the Installing the V2-STORAGE-EXT800 External RAID Controller section
on page 29.
