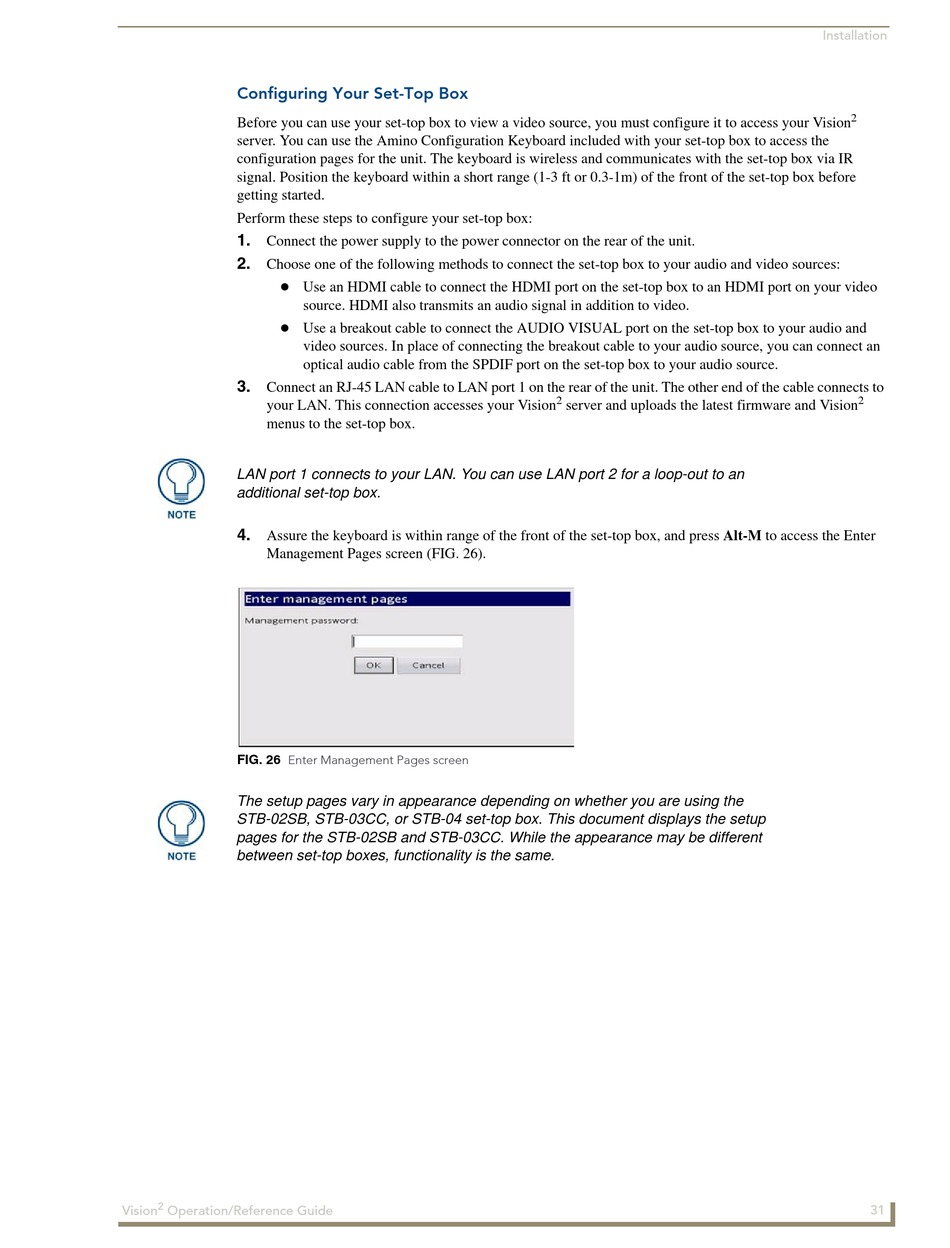

Configuring Your Set-Top Box

Before you can use your set-top box to view a video source, you must configure it to access your Vision
server. You can use the Amino Configuration Keyboard included with your set-top box to access the
configuration pages for the unit. The keyboard is wireless and communicates with the set-top box via IR
signal. Position the keyboard within a short range (1-3 ft or 0.3-1m) of the front of the set-top box before
getting started.
Perform these steps to configure your set-top box:
1.
Connect the power supply to the power connector on the rear of the unit.
2.
Choose one of the following methods to connect the set-top box to your audio and video sources:


3.
Connect an RJ-45 LAN cable to LAN port 1 on the rear of the unit. The other end of the cable connects to
your LAN. This connection accesses your Vision
menus to the set-top box.
LAN port 1 connects to your LAN. You can use LAN port 2 for a loop-out to an
additional set-top box.
4.
Assure the keyboard is within range of the front of the set-top box, and press Alt-M to access the Enter
Management Pages screen (FIG. 26).
FIG. 26 Enter Management Pages screen
The setup pages vary in appearance depending on whether you are using the
STB-02SB, STB-03CC, or STB-04 set-top box. This document displays the setup
pages for the STB-02SB and STB-03CC. While the appearance may be different
between set-top boxes, functionality is the same.
2
Vision Operation/Reference Guide
Use an HDMI cable to connect the HDMI port on the set-top box to an HDMI port on your video
source. HDMI also transmits an audio signal in addition to video.
Use a breakout cable to connect the AUDIO VISUAL port on the set-top box to your audio and
video sources. In place of connecting the breakout cable to your audio source, you can connect an
optical audio cable from the SPDIF port on the set-top box to your audio source.
2
server and uploads the latest firmware and Vision
