Thumbnail Viewer

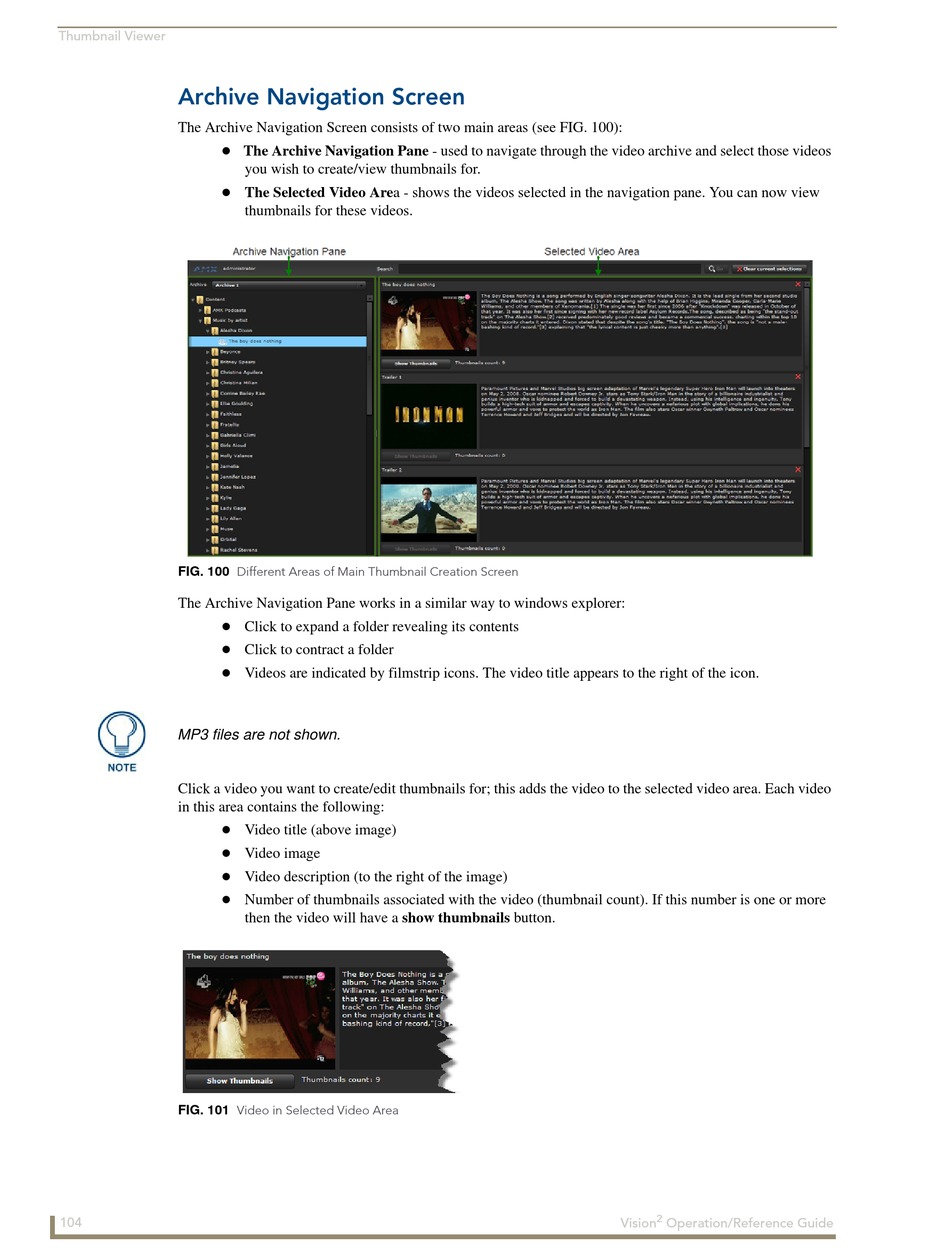

Archive Navigation Screen

The Archive Navigation Screen consists of two main areas (see FIG. 100):


FIG. 100 Different Areas of Main Thumbnail Creation Screen
The Archive Navigation Pane works in a similar way to windows explorer:



MP3 files are not shown.
Click a video you want to create/edit thumbnails for; this adds the video to the selected video area. Each video
in this area contains the following:




FIG. 101 Video in Selected Video Area
104
The Archive Navigation Pane - used to navigate through the video archive and select those videos
you wish to create/view thumbnails for.
The Selected Video Area - shows the videos selected in the navigation pane. You can now view
thumbnails for these videos.
Click to expand a folder revealing its contents
Click to contract a folder
Videos are indicated by filmstrip icons. The video title appears to the right of the icon.
Video title (above image)
Video image
Video description (to the right of the image)
Number of thumbnails associated with the video (thumbnail count). If this number is one or more
then the video will have a show thumbnails button.
