AMX Vision 2 Operation/Reference Manual page 20

Overview

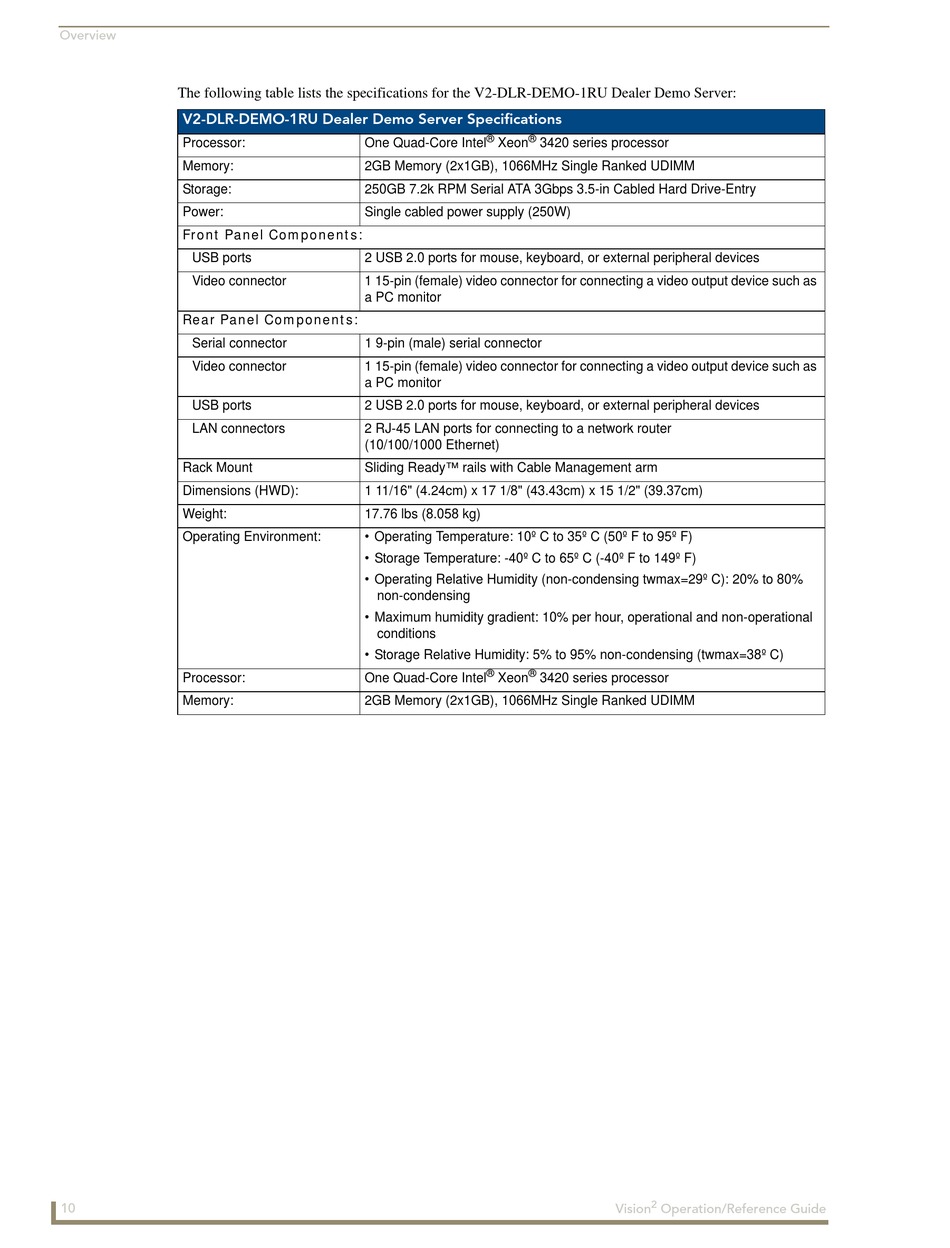

The following table lists the specifications for the V2-DLR-DEMO-1RU Dealer Demo Server:
V2-DLR-DEMO-1RU Dealer Demo Server Specifications
Processor:
Memory:
Storage:
Power:
Front Panel Components:
USB ports
Video connector
Rear Panel Components:
Serial connector
Video connector
USB ports
LAN connectors
Rack Mount
Dimensions (HWD):
Weight:
Operating Environment:
Processor:
Memory:
10
® ®
One Quad-Core Intel Xeon 3420 series processor
2GB Memory (2x1GB), 1066MHz Single Ranked UDIMM
250GB 7.2k RPM Serial ATA 3Gbps 3.5-in Cabled Hard Drive-Entry
Single cabled power supply (250W)
2 USB 2.0 ports for mouse, keyboard, or external peripheral devices
1 15-pin (female) video connector for connecting a video output device such as
a PC monitor
1 9-pin (male) serial connector
1 15-pin (female) video connector for connecting a video output device such as
a PC monitor
2 USB 2.0 ports for mouse, keyboard, or external peripheral devices
2 RJ-45 LAN ports for connecting to a network router 
(10/100/1000 Ethernet)
Sliding Ready™ rails with Cable Management arm
1 11/16" (4.24cm) x 17 1/8" (43.43cm) x 15 1/2" (39.37cm)
17.76 lbs (8.058 kg)
• Operating Temperature: 10º C to 35º C (50º F to 95º F)
• Storage Temperature: -40º C to 65º C (-40º F to 149º F)
• Operating Relative Humidity (non-condensing twmax=29º C): 20% to 80%
non-condensing
• Maximum humidity gradient: 10% per hour, operational and non-operational
conditions
• Storage Relative Humidity: 5% to 95% non-condensing (twmax=38º C)
® ®
One Quad-Core Intel Xeon 3420 series processor
2GB Memory (2x1GB), 1066MHz Single Ranked UDIMM
2
Vision Operation/Reference Guide
