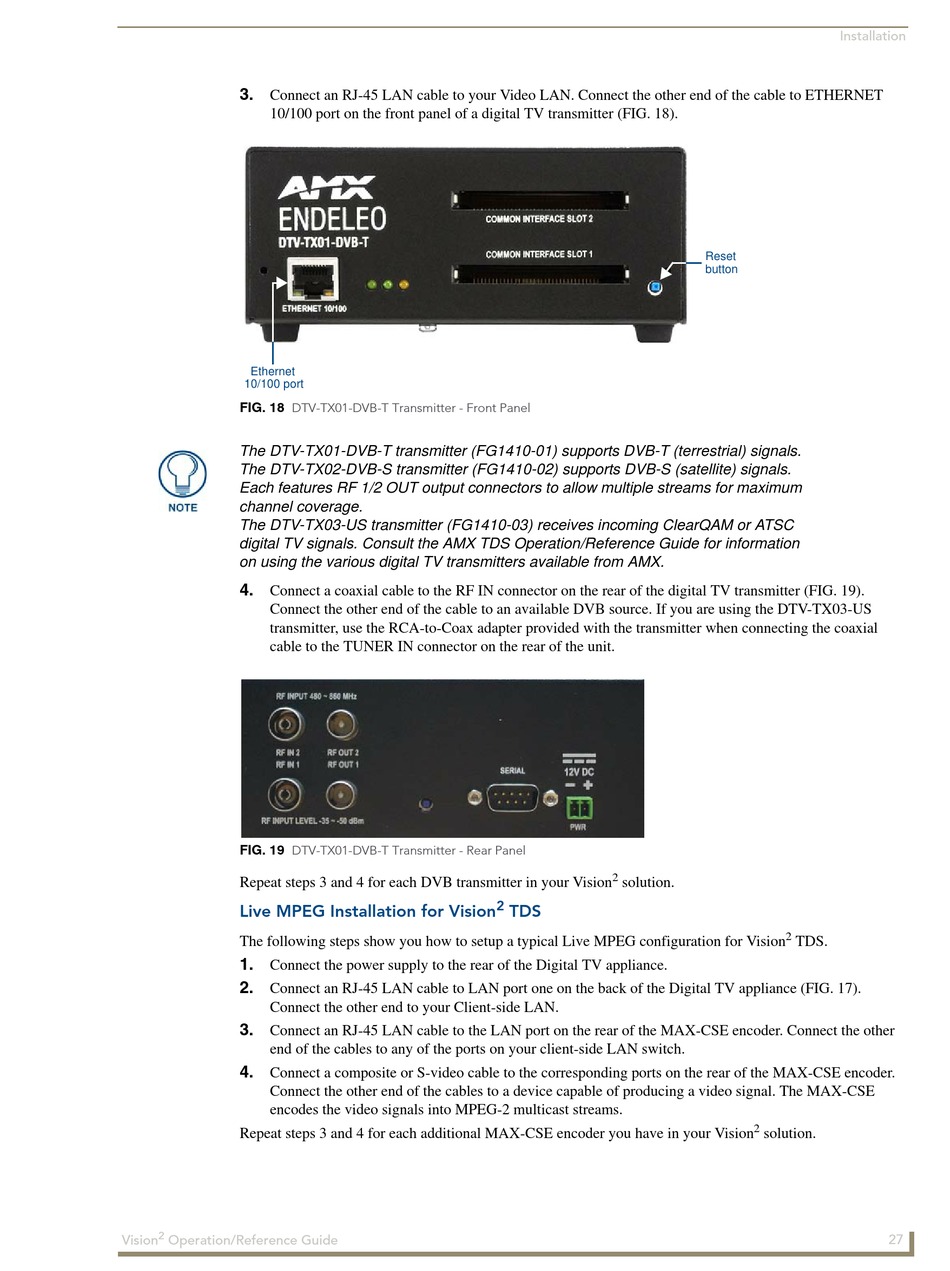

Connect an RJ-45 LAN cable to your Video LAN. Connect the other end of the cable to ETHERNET 
3.
10/100 port on the front panel of a digital TV transmitter (FIG. 18).
Ethernet
10/100 port
FIG. 18 DTV-TX01-DVB-T Transmitter - Front Panel
The DTV-TX01-DVB-T transmitter (FG1410-01) supports DVB-T (terrestrial) signals.
The DTV-TX02-DVB-S transmitter (FG1410-02) supports DVB-S (satellite) signals.
Each features RF 1/2 OUT output connectors to allow multiple streams for maximum
channel coverage.
The DTV-TX03-US transmitter (FG1410-03) receives incoming ClearQAM or ATSC
digital TV signals. Consult the AMX TDS Operation/Reference Guide for information
on using the various digital TV transmitters available from AMX.
4.
Connect a coaxial cable to the RF IN connector on the rear of the digital TV transmitter (FIG. 19).
Connect the other end of the cable to an available DVB source. If you are using the DTV-TX03-US
transmitter, use the RCA-to-Coax adapter provided with the transmitter when connecting the coaxial
cable to the TUNER IN connector on the rear of the unit.
FIG. 19 DTV-TX01-DVB-T Transmitter - Rear Panel
Repeat steps 3 and 4 for each DVB transmitter in your Vision
Live MPEG Installation for Vision
The following steps show you how to setup a typical Live MPEG configuration for Vision
1.
Connect the power supply to the rear of the Digital TV appliance.
2.
Connect an RJ-45 LAN cable to LAN port one on the back of the Digital TV appliance (FIG. 17).
Connect the other end to your Client-side LAN.
3.
Connect an RJ-45 LAN cable to the LAN port on the rear of the MAX-CSE encoder. Connect the other
end of the cables to any of the ports on your client-side LAN switch.
4.
Connect a composite or S-video cable to the corresponding ports on the rear of the MAX-CSE encoder.
Connect the other end of the cables to a device capable of producing a video signal. The MAX-CSE
encodes the video signals into MPEG-2 multicast streams.
Repeat steps 3 and 4 for each additional MAX-CSE encoder you have in your Vision
2
Vision Operation/Reference Guide
2
solution.
2
TDS
Installation
Reset
button
2
TDS.
2
solution.
