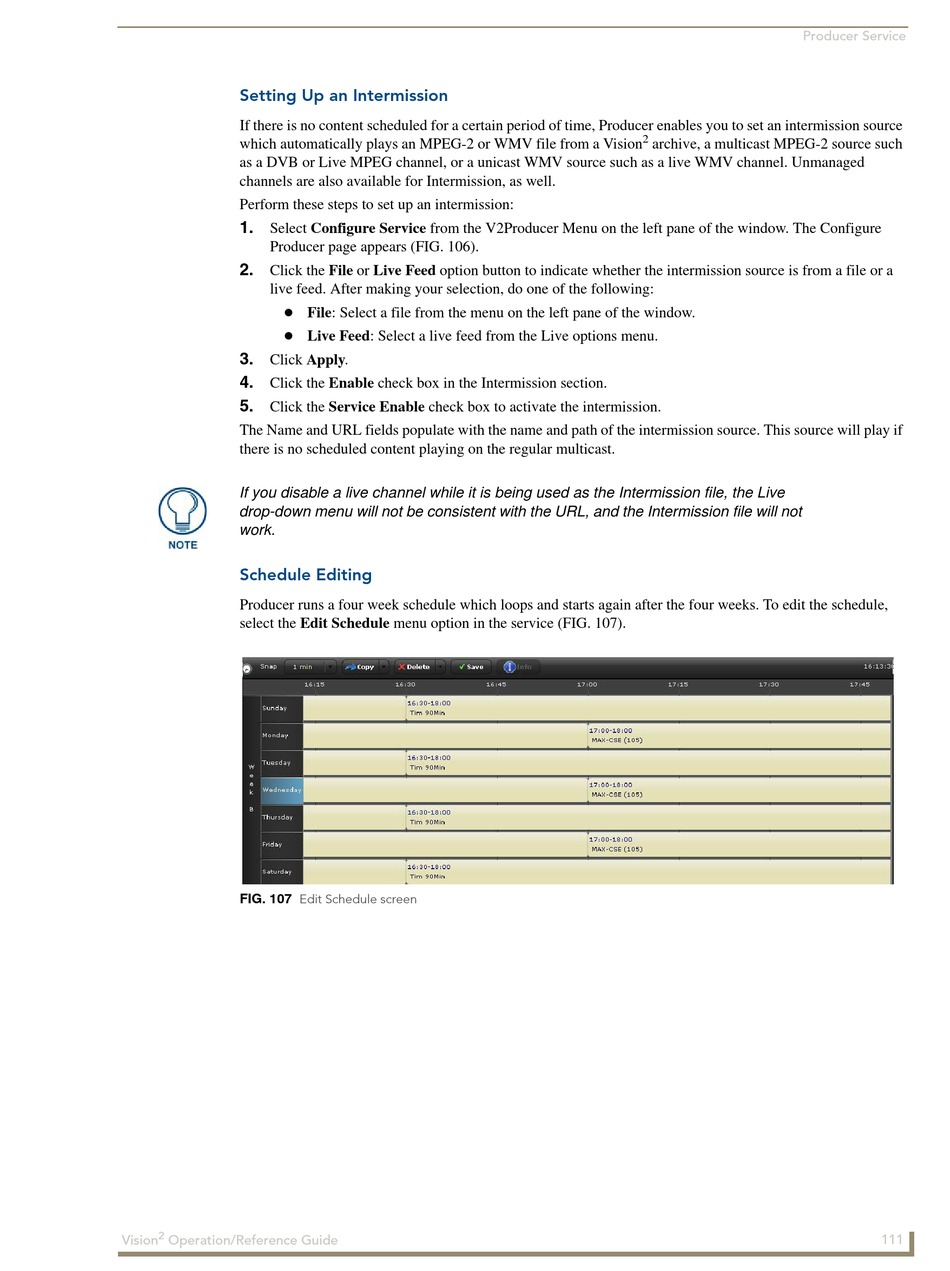

Setting Up An Intermission; Schedule Editing - AMX Vision 2 Operation/Reference Manual

Setting Up an Intermission

If there is no content scheduled for a certain period of time, Producer enables you to set an intermission source
which automatically plays an MPEG-2 or WMV file from a Vision
as a DVB or Live MPEG channel, or a unicast WMV source such as a live WMV channel. Unmanaged
channels are also available for Intermission, as well.
Perform these steps to set up an intermission:
1.
Select Configure Service from the V2Producer Menu on the left pane of the window. The Configure
Producer page appears (FIG. 106).
2.
Click the File or Live Feed option button to indicate whether the intermission source is from a file or a
live feed. After making your selection, do one of the following:


3.
Click Apply.
4.
Click the Enable check box in the Intermission section.
5.
Click the Service Enable check box to activate the intermission.
The Name and URL fields populate with the name and path of the intermission source. This source will play if
there is no scheduled content playing on the regular multicast.
If you disable a live channel while it is being used as the Intermission file, the Live
drop-down menu will not be consistent with the URL, and the Intermission file will not
work.

Schedule Editing

Producer runs a four week schedule which loops and starts again after the four weeks. To edit the schedule,
select the Edit Schedule menu option in the service (FIG. 107).
FIG. 107 Edit Schedule screen
2
Vision Operation/Reference Guide
File: Select a file from the menu on the left pane of the window.
Live Feed: Select a live feed from the Live options menu.
Producer Service
2
archive, a multicast MPEG-2 source such
111
