WMV Appliance Rear Panel Connections

This section details the ports and connectors on the rear panel of the Vision

HD-15 Port

The HD-15 input connector is used for WMV source streams.
Use the male HD-15 port for WMV source streams. The female HD-15 port is
available for an output device such as a PC monitor.

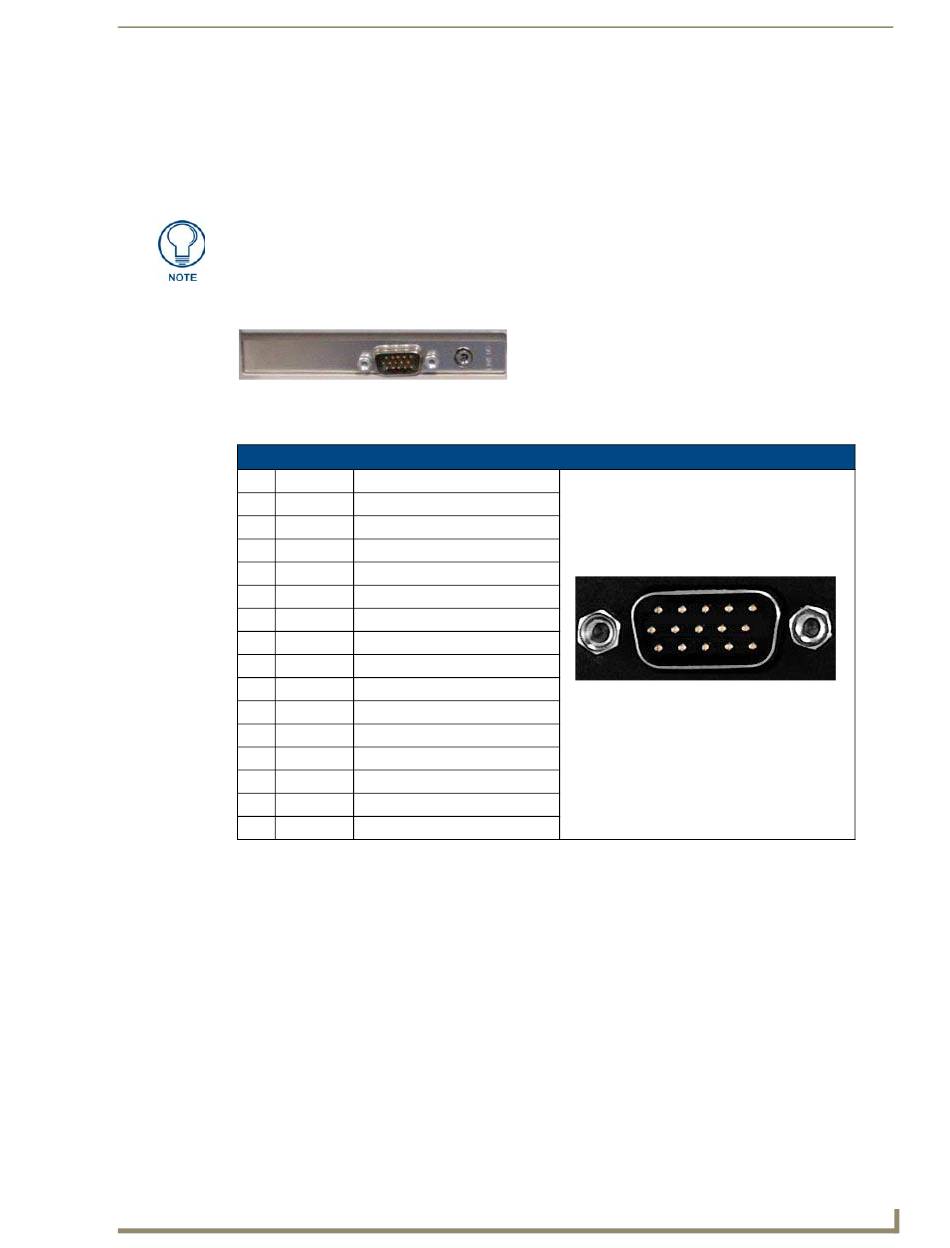

FIG. 6 displays the location of the HD-15 WMV port on the rear of the Vision
FIG. 6 WMV port (WMV appliance)
The following tables list the HD-15 connector pinouts for WMV streams.
HD-15 Connector Pinouts
Pin Signal
1
2 Green
3
4 Sense 2
5 GND
6 RAGND
7 GAGND
8 BAGND
9
10 SAGND
11 Sense 0
12 Sense 1
13 HSYNC
14 VSYNC
15 Sense 3
2
Vision Operation/Reference Guide
Function
Red Red signals
Green signals
Blue Blue signals
Monitor ID bit 2
Signal Ground
Red analog ground
Green analog ground
Blue analog ground
N/A Not used
Synchronization analog ground
Monitor ID bit 0
Monitor ID bit 1
Horizontal synchronization signal
Vertical synchronization signal
Monitor ID bit 3
Wiring and Device Connections
2
WMV appliance:
2
WMV appliance.
5
1
10
6
1 2 3 4 5
15
6 7 8 9 10
11
11 12 13 14 15
