Polycom Ceiling Microphone Array Drop Cable (4-To-4 Pin) - Polycom RealPresence Group Series Reference Manual

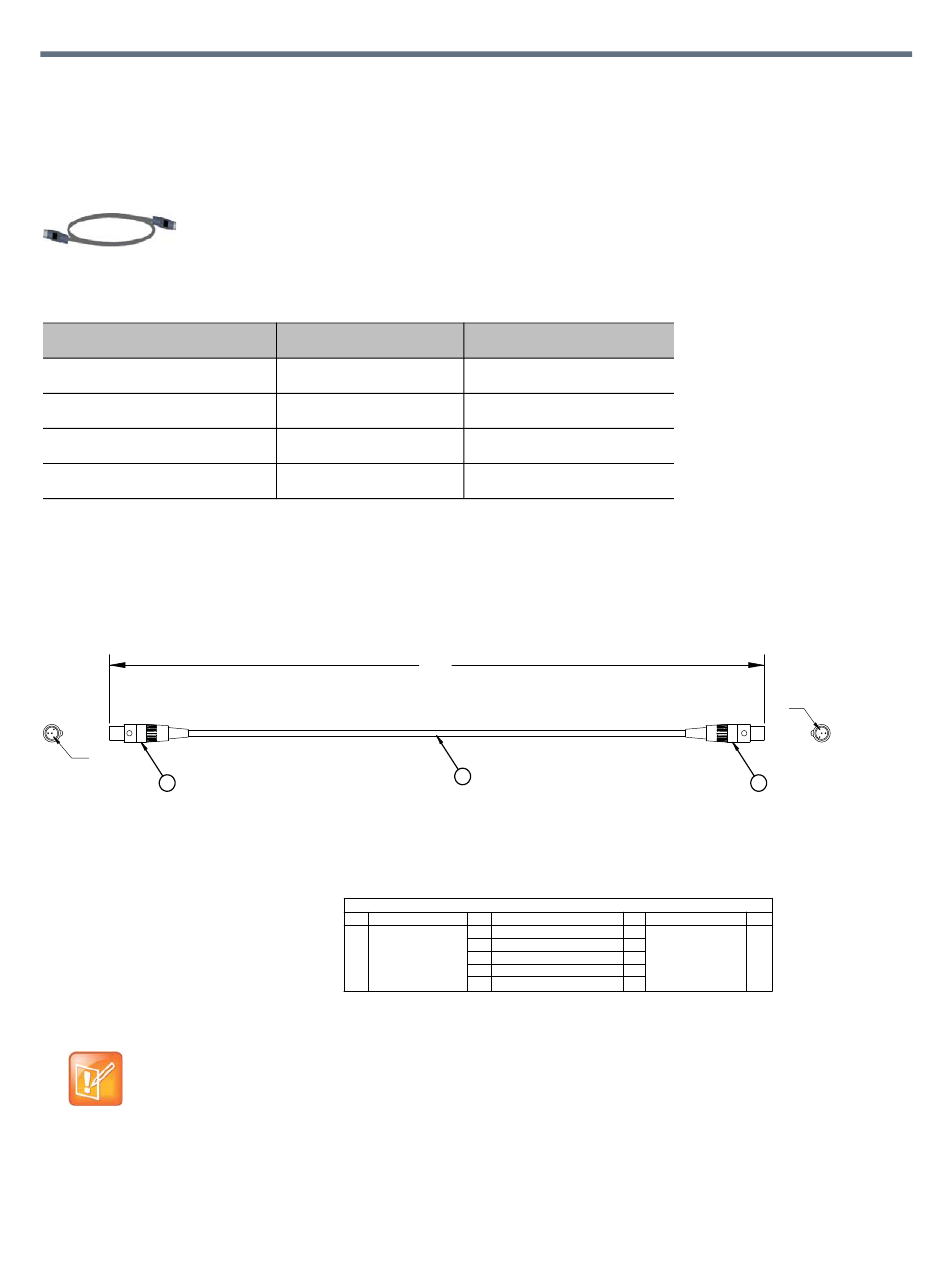

Polycom Ceiling Microphone Array Drop Cable (4-to-4
Pin)
Extended length drop cable for connecting Spherical Ceiling Microphone Array element to an electronics
interface. It is 4-pin mini-DIN to 4-pin mini-DIN.
Length
6 ft (1.8m)
6 ft (1.8m)
2 ft (0.6m)
2 ft (0.6m)
P-1
PIN-1
1
Note: Drawings and part numbers are provided for reference only. Polycom claims no responsibility or
liability for the quality, performance, or reliability of cables based on these reference drawings, other
than cables provided by Polycom. Contact your Polycom distributor or Polycom Custom/Vertical
Products to order cables that meet the appropriate manufacturing tolerances, quality, and performance
parameters for your application.
Polycom, Inc.
Part Number
2457-24701-001
2457-24701-003
2457-23986-001
2457-23986-002
[24.0 IN]
609.6
2
LABEL CONNECTOR DESCRIPTION
TINI Q-C 4-PIN
P-1
XLR FEMALE PLUG
SWITCHCRAFT P/N TA4FLX
RoHS Compliant
Yes
Yes
Yes
Yes
WIRING TABLE
PIN WIRE DESCRIPTION/COLOR PIN
1 1
WIRE, 26 AWG, BLUE
2 2
WIRE, 26 AWG, WHITE
3 WIRE, 26 AWG, BLUE W/ WHITE STRIPE 3
4 4
WIRE, 26 AWG, WHITE W/ BLUE STRIPE
DRAIN WIRE
SHIELD SHIELD
PIN-1
P-2
1
CONNECTOR DESCRIPTION LABEL
TINI Q-C 4-PIN
XLR FEMALE PLUG
P-2
SWITCHCRAFT P/N TA4FLX
Cables
