Start An Api Session Using An Rs-232 Interface - Polycom RealPresence Group Series Reference Manual

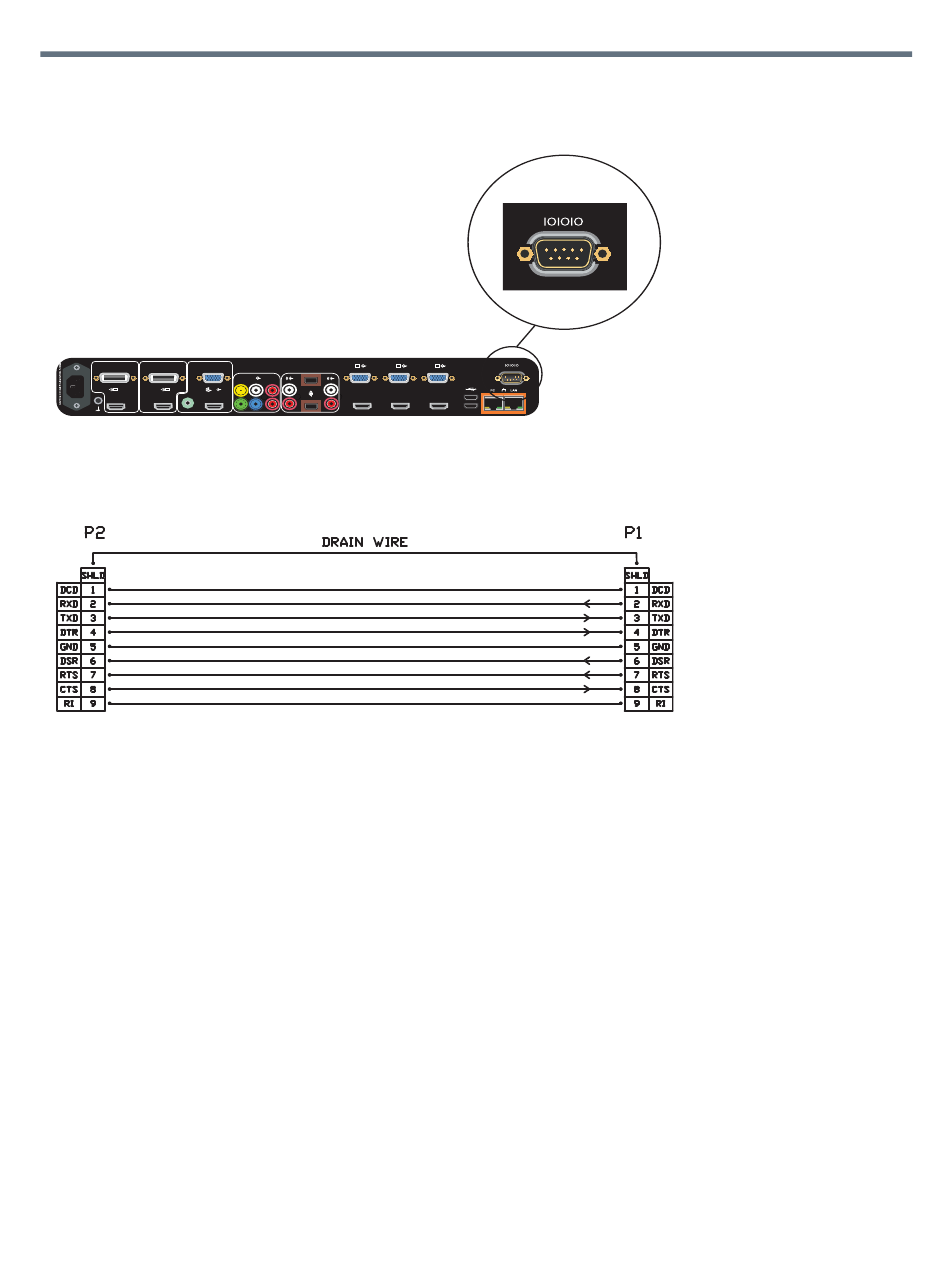

The serial port on a RealPresence Group 700 system is a DB-9 connector:
RealPresence Group Series 700 serial port
1 2 3
100-240VAC 50/60Hz 2.3A
Use a DB-9 to DB-9 cable such as the
pinouts for this type of cable are listed in the following table:

Start an API Session Using an RS-232 Interface

RealPresence Group Series systems can run API sessions from the RS-232 interface.
After you have verified that the RealPresence Group Series system and your computer or control system
are configured appropriately, you can set up the devices.
To start an API session using an RS-232 interface:
1 Use an RS-232 cable to connect the computer or control system RS-232 port to an RS-232 port on
the RealPresence Group Series system as shown in the following illustrations.
This connection may require the
Polycom, Inc.
1 2
4
Straight-Through Cable
Null Modem
3
to connect to the RS-232 interface. The
Adapter.
Using the API
109
