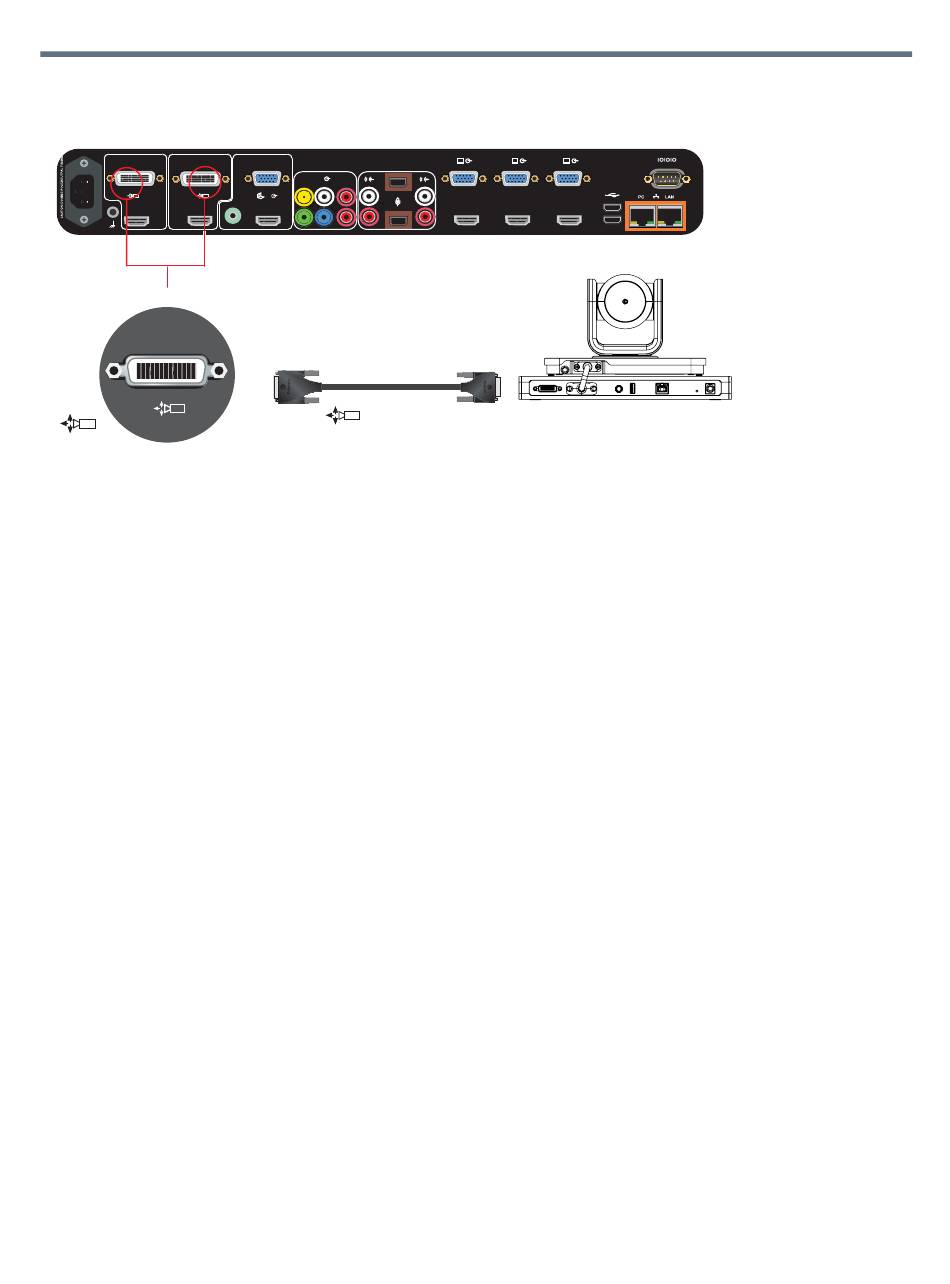

Connect a Polycom EagleEye Producer with a Polycom EagleEye IV Camera to a Polycom
RealPresence Group 700 System (Option 1):
1 2
100-240VAC 50/60Hz 2.3A
1
2
Option 2
For installations requiring distances of farther than 10m between the EagleEye Producer and the system,
use the Polycom EagleEye Digital Extender. The EagleEye Digital Extender (part number 2215-64200-001)
supports distances from 3m to 100m.
Connect the camera and system using the following cables:
● Polycom EagleEye Digital Extender (includes a 1m
Cable and a power source)
● HDCI Polycom EagleEye IV Digital Camera Cable
● A user-supplied CAT 5e or 6e or better solid conductor LAN cable. See http://hdbaset.org/cables for
recommended cables. For optional performance, CAT6A cable (CAT 6A F/UTP). This cable must be
terminated according to the TIA/ETAT 568B wiring standard. For EagleEye Digital Extender
installation recommendations and precautions, see
● Another application is to use the Digital Breakout Adapter (DBA) with an
Digital Camera Cable
