Option 2
● A—HDCI Camera Break-Out Analog CableHDCI Camera Break-Out Analog Cable
● B—Coaxial analog video cables
● C—DB-9 serial cable
● Power supply. Power supply is required when the camera is not connected directly to the
RealPresence Group Series system using HDCI, or when the HDCI cable is longer than 10 meters.
Use only the approved power supply from Polycom (part number 1465-52748-040). Do not exceed
12 Volts at 3 Amps. Verify the polarity of the power supply as shown on the Polycom camera next to
the power supply input.
Note: Polycom recommends this configuration when a custom cable length is
required. The BNC and serial cables can be built to custom lengths.

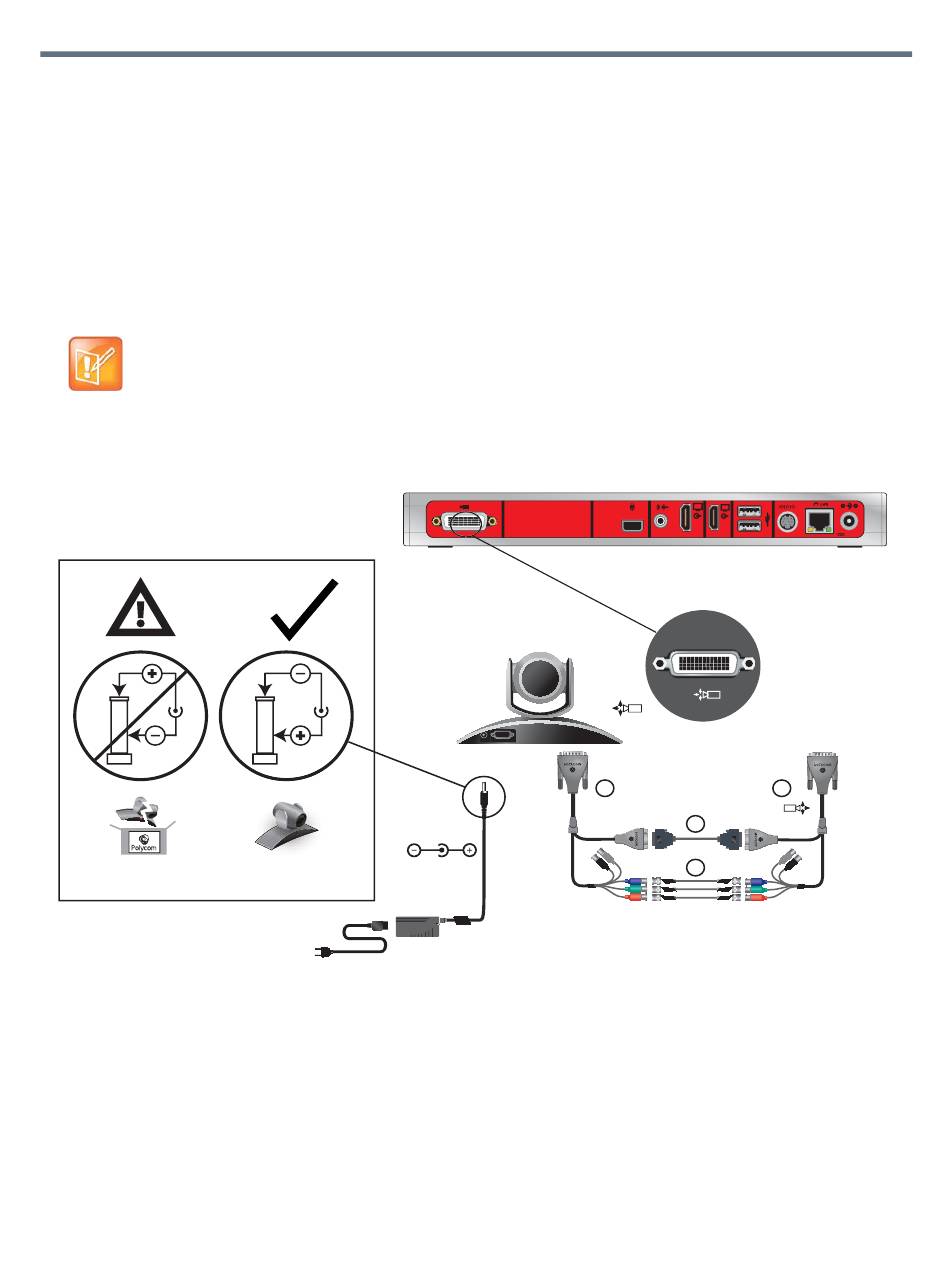

Connect a Polycom EagleEye III Camera to a Polycom RealPresence Group 300 System as
the Main Camera (Option 2):
Use Polycom Power Supply Only
Polycom, Inc.
DC IN 12V
Part Number: 1465-52748-040
1
1725-27441-006/A
A
C
B
Optional, up to 100 ft
Room Integration
2
12V 6.25A
A
