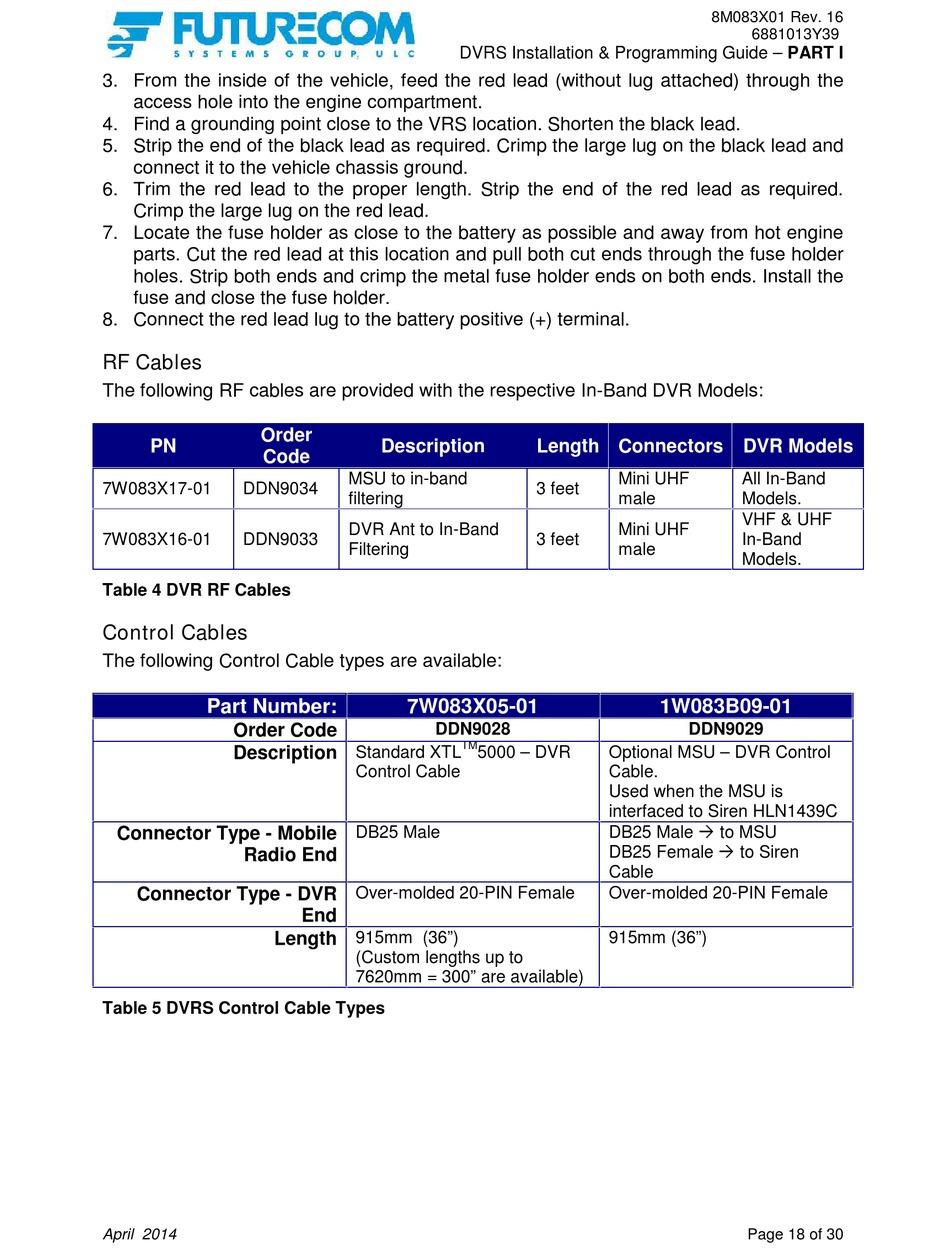

3. From the inside of the vehicle, feed the red lead (without lug attached) through the
access hole into the engine compartment.
4. Find a grounding point close to the VRS location. Shorten the black lead.
5. Strip the end of the black lead as required. Crimp the large lug on the black lead and
connect it to the vehicle chassis ground.
6. Trim the red lead to the proper length. Strip the end of the red lead as required.
Crimp the large lug on the red lead.
7. Locate the fuse holder as close to the battery as possible and away from hot engine
parts. Cut the red lead at this location and pull both cut ends through the fuse holder
holes. Strip both ends and crimp the metal fuse holder ends on both ends. Install the
fuse and close the fuse holder.
8. Connect the red lead lug to the battery positive (+) terminal.

RF Cables

The following RF cables are provided with the respective In-Band DVR Models:
Order
PN
Code
7W083X17-01 DDN9034
7W083X16-01 DDN9033

Table 4 DVR RF Cables

Control Cables

The following Control Cable types are available:
Part Number:
Order Code
Description
Connector Type - Mobile
Radio End
Connector Type - DVR
Length

Table 5 DVRS Control Cable Types

April 2014
DVRS Installation & Programming Guide – PART I
Description
MSU to in-band
filtering
DVR Ant to In-Band
Filtering
7W083X05-01
DDN9028
TM
Standard XTL 5000 – DVR
Control Cable
DB25 Male
Over-molded 20-PIN Female
End
915mm (36")
(Custom lengths up to
7620mm = 300" are available)
8M083X01 Rev. 16
Length Connectors DVR Models
Mini UHF
3 feet
male
Mini UHF
3 feet
male
1W083B09-01
DDN9029
Optional MSU – DVR Control
Cable.
Used when the MSU is
interfaced to Siren HLN1439C
DB25 Male  to MSU
DB25 Female  to Siren
Cable
Over-molded 20-PIN Female
915mm (36")
6881013Y39
All In-Band
Models.
VHF & UHF
In-Band
Models.
Page 18 of 30
