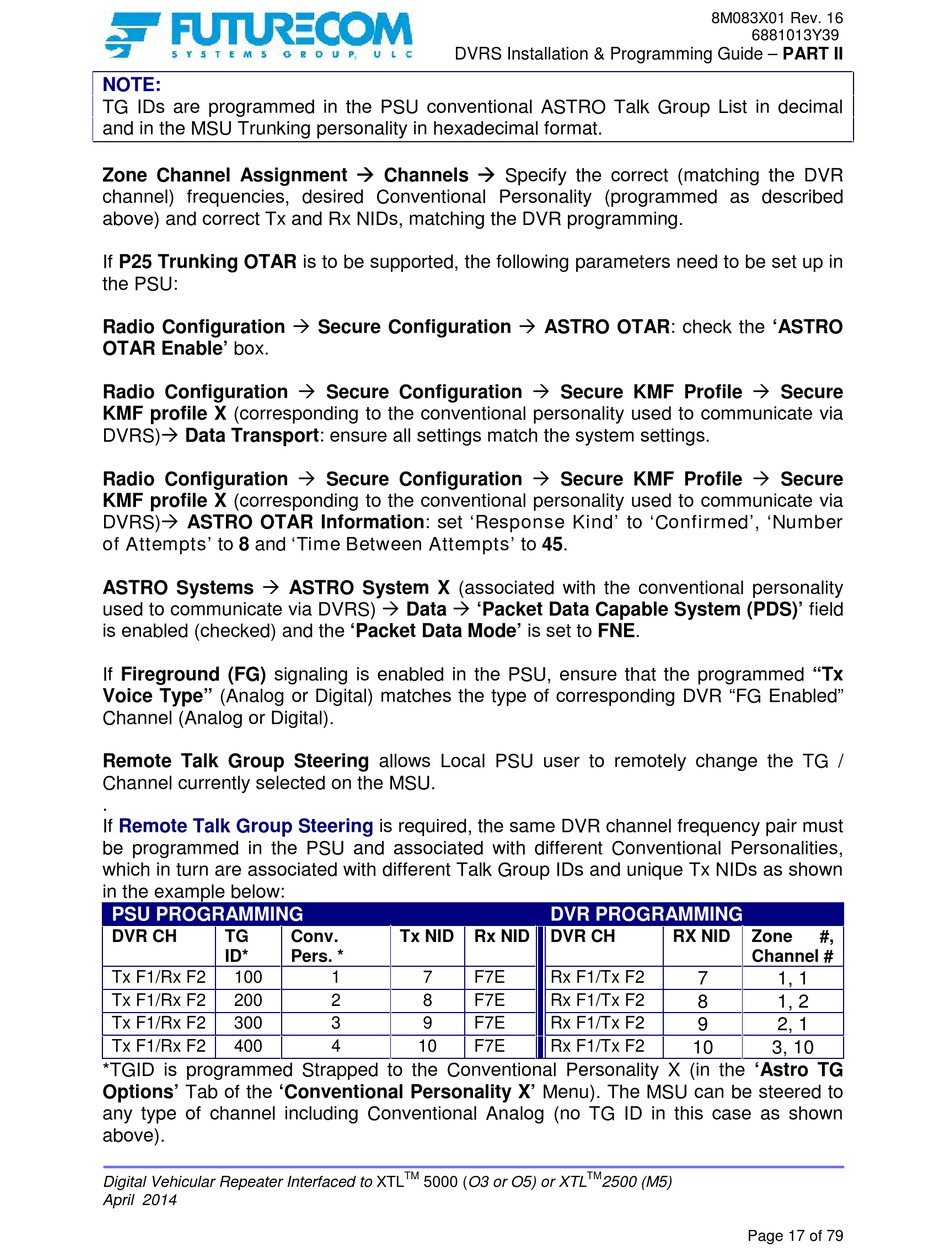

Futurecom Mobexcom P25 Installation & Programming Manual page 53

NOTE:
TG IDs are programmed in the PSU conventional ASTRO Talk Group List in decimal
and in the MSU Trunking personality in hexadecimal format.
Zone Channel Assignment  Channels  Specify the correct (matching the DVR
channel) frequencies, desired Conventional Personality (programmed as described
above) and correct Tx and Rx NIDs, matching the DVR programming.
If P25 Trunking OTAR is to be supported, the following parameters need to be set up in
the PSU:
Radio Configuration  Secure Configuration  ASTRO OTAR: check the 'ASTRO
OTAR Enable' box.
Radio Configuration  Secure Configuration  Secure KMF Profile  Secure
KMF profile X (corresponding to the conventional personality used to communicate via
DVRS) Data Transport: ensure all settings match the system settings.
Radio Configuration  Secure Configuration  Secure KMF Profile  Secure
KMF profile X (corresponding to the conventional personality used to communicate via
DVRS) ASTRO OTAR Information: set 'Response Kind' to 'Confirmed', 'Number
of Attempts' to 8 and 'Time Between Attempts' to 45.
ASTRO Systems  ASTRO System X (associated with the conventional personality
used to communicate via DVRS)  Data  'Packet Data Capable System (PDS)' field
is enabled (checked) and the 'Packet Data Mode' is set to FNE.
If Fireground (FG) signaling is enabled in the PSU, ensure that the programmed "Tx
Voice Type" (Analog or Digital) matches the type of corresponding DVR "FG Enabled"
Channel (Analog or Digital).
Remote Talk Group Steering allows Local PSU user to remotely change the TG /
Channel currently selected on the MSU.
.
If Remote Talk Group Steering
be programmed in the PSU and associated with different Conventional Personalities,
which in turn are associated with different Talk Group IDs and unique Tx NIDs as shown
in the example below:
PSU PROGRAMMING
DVR CH TG
ID*
Tx F1/Rx F2 100
Tx F1/Rx F2 200
Tx F1/Rx F2 300
Tx F1/Rx F2 400
*TGID is programmed Strapped to the Conventional Personality X (in the 'Astro TG
Options' Tab of the 'Conventional Personality X' Menu). The MSU can be steered to
any type of channel including Conventional Analog (no TG ID in this case as shown
above).
Digital Vehicular Repeater Interfaced to XTL
April 2014
DVRS Installation & Programming Guide – PART II
is required, the same DVR channel frequency pair must
Conv. Tx NID
Pers. *
1 7
2 8
3 9
4 10
TM
5000 (O3 or O5) or XTL
DVR PROGRAMMING
Rx NID DVR CH
F7E Rx F1/Tx F2
F7E Rx F1/Tx F2
F7E Rx F1/Tx F2
F7E Rx F1/Tx F2
TM
2500 (M5)
8M083X01 Rev. 16
6881013Y39
RX NID Zone #,
Channel #
7 1, 1
8 1, 2
9 2, 1
10 3, 10
