8M083X01 Rev. 16
6881013Y39
DVRS Installation & Programming Guide – PART I

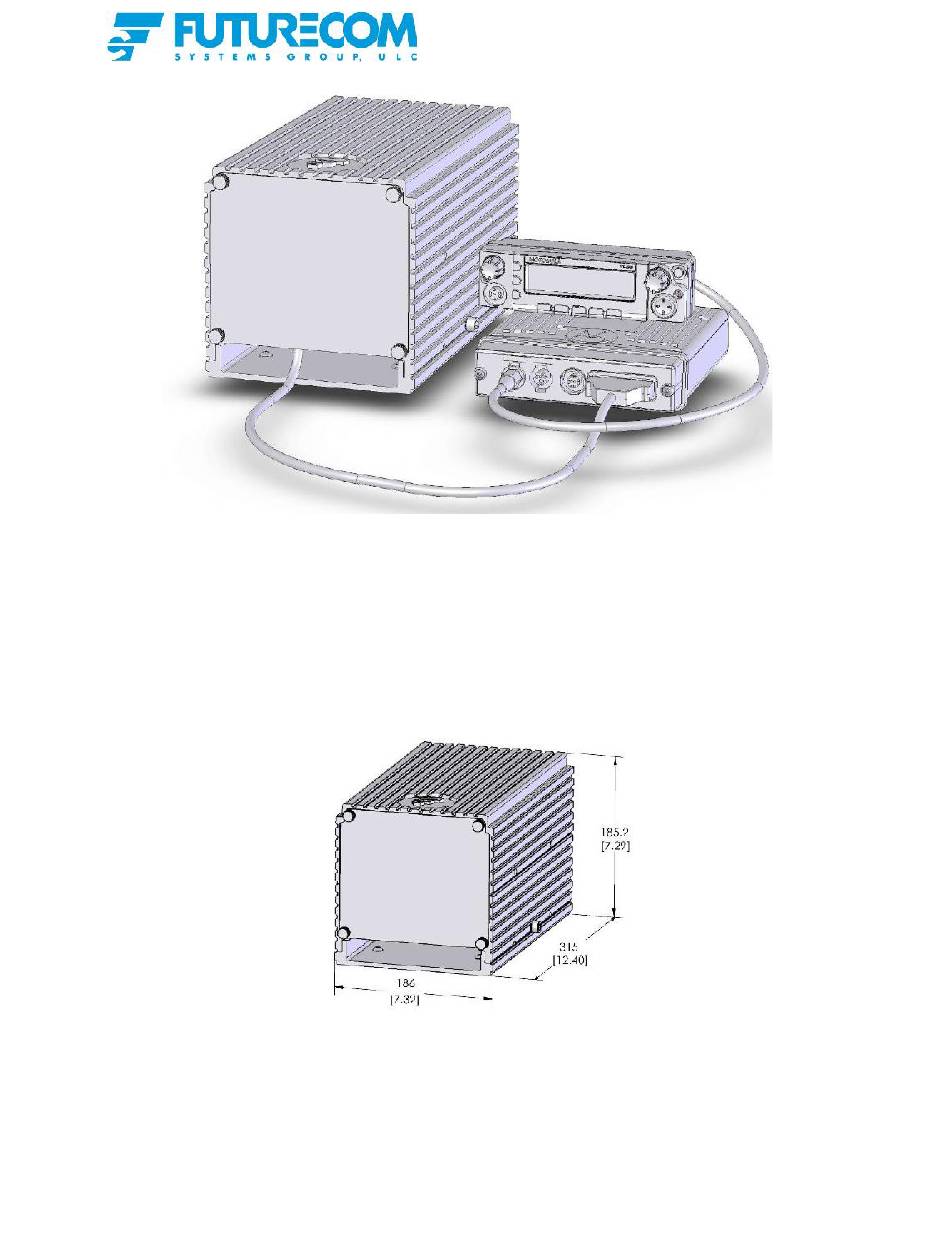

Figure 6 Typical Cross-Band DVRS Mounting Layout
The Cross-Band DVRS package includes a DVR Repeater and Duplexer Enclosure,
mounted on one side and a Remote Mount MSU mounted next to the DVR.
DVR Dimensions
Cross-Band DVR Dimensions
Figure 7 Cross-Band DVR - Dimensions mm / [in]
April 2014
Page 10 of 30
