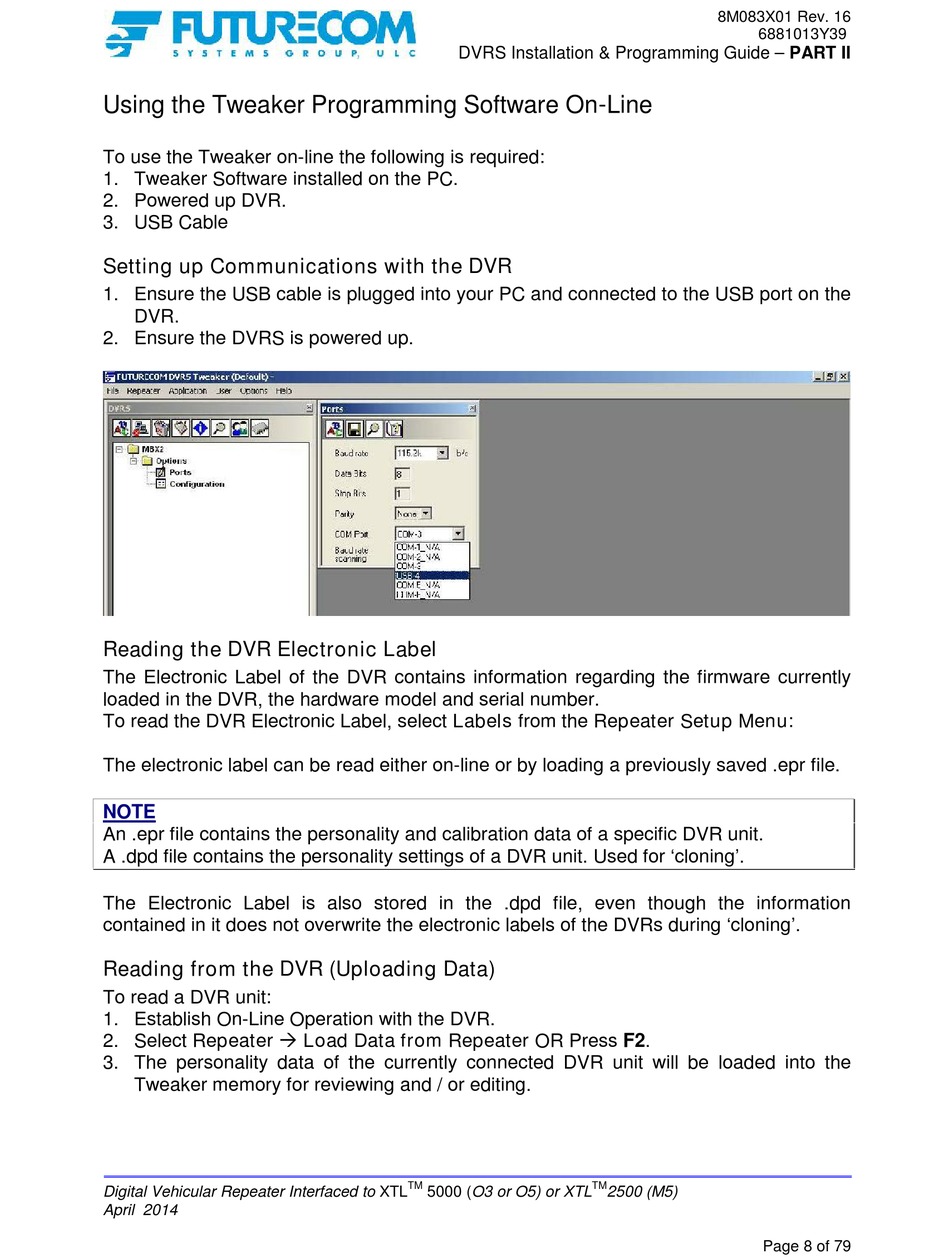

Using the Tweaker Programming Software On-Line

To use the Tweaker on-line the following is required:
1. Tweaker Software installed on the PC.
2. Powered up DVR.
3. USB Cable

Setting up Communications with the DVR

1. Ensure the USB cable is plugged into your PC and connected to the USB port on the
DVR.
2. Ensure the DVRS is powered up.

Reading the DVR Electronic Label

The Electronic Label of the DVR contains information regarding the firmware currently
loaded in the DVR, the hardware model and serial number.
To read the DVR Electronic Label, select Labels from the Repeater Setup Menu:
The electronic label can be read either on-line or by loading a previously saved .epr file.
NOTE
An .epr file contains the personality and calibration data of a specific DVR unit.
A .dpd file contains the personality settings of a DVR unit. Used for 'cloning'.
The Electronic Label is also stored in the .dpd file, even though the information
contained in it does not overwrite the electronic labels of the DVRs during 'cloning'.

Reading from the DVR (Uploading Data)

To read a DVR unit:
1. Establish On-Line Operation with the DVR.
2. Select Repeater  Load Data from Repeater OR Press F2.
3. The personality data of the currently connected DVR unit will be loaded into the
Tweaker memory for reviewing and / or editing.
