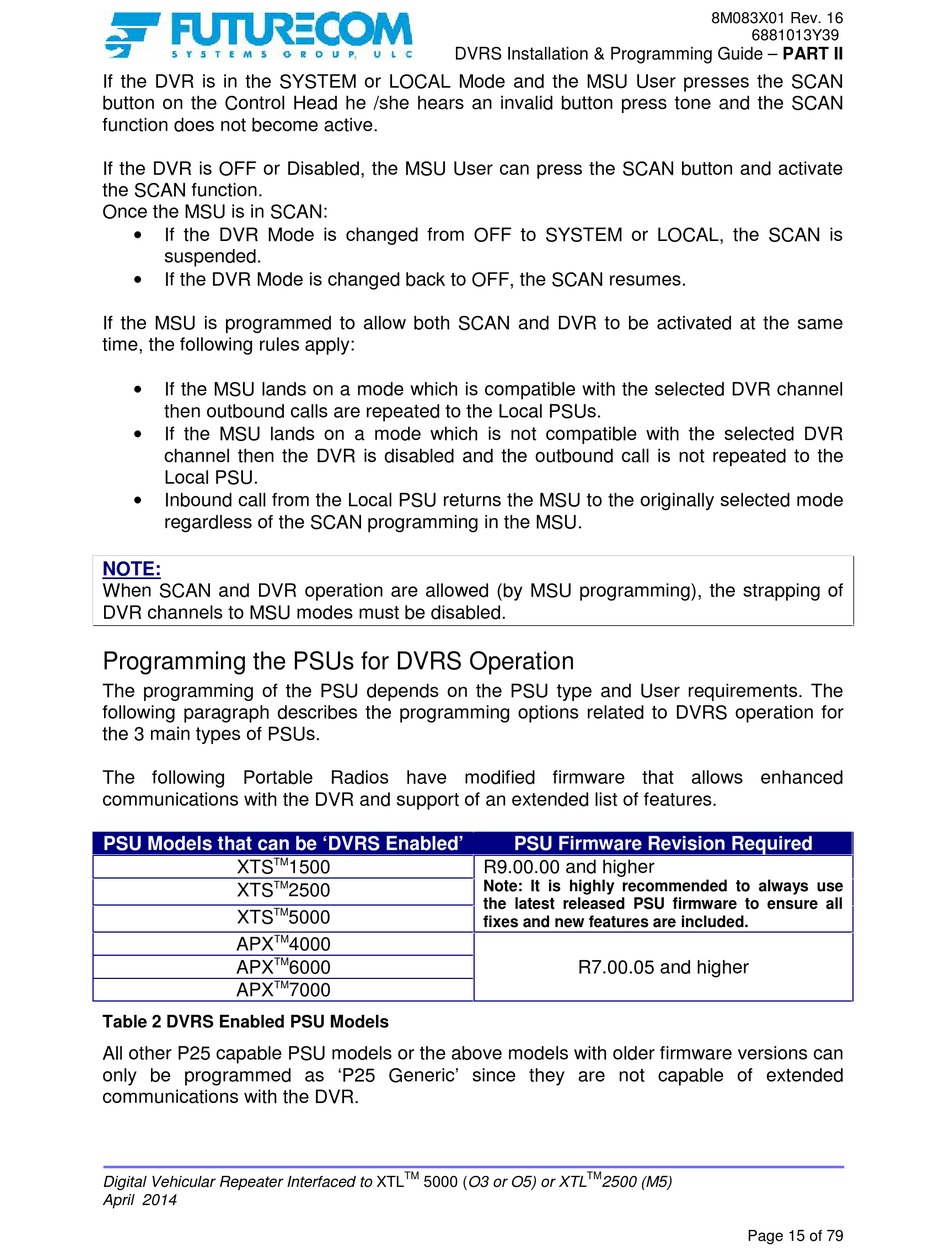

If the DVR is in the SYSTEM or LOCAL Mode and the MSU User presses the SCAN
button on the Control Head he /she hears an invalid button press tone and the SCAN
function does not become active.
If the DVR is OFF or Disabled, the MSU User can press the SCAN button and activate
the SCAN function.
Once the MSU is in SCAN:

If the DVR Mode is changed from OFF to SYSTEM or LOCAL, the SCAN is
suspended.

If the DVR Mode is changed back to OFF, the SCAN resumes.
If the MSU is programmed to allow both SCAN and DVR to be activated at the same
time, the following rules apply:

If the MSU lands on a mode which is compatible with the selected DVR channel
then outbound calls are repeated to the Local PSUs.

If the MSU lands on a mode which is not compatible with the selected DVR
channel then the DVR is disabled and the outbound call is not repeated to the
Local PSU.

Inbound call from the Local PSU returns the MSU to the originally selected mode
regardless of the SCAN programming in the MSU.
NOTE:
When SCAN and DVR operation are allowed (by MSU programming), the strapping of
DVR channels to MSU modes must be disabled.

Programming the PSUs for DVRS Operation

The programming of the PSU depends on the PSU type and User requirements. The
following paragraph describes the programming options related to DVRS operation for
the 3 main types of PSUs.
The following Portable Radios have modified firmware that allows enhanced
communications with the DVR and support of an extended list of features.
PSU Models that can be 'DVRS Enabled'
TM
XTS
TM
XTS
TM
XTS
TM
APX
TM
APX
TM
APX
Table 2 DVRS Enabled PSU Models
All other P25 capable PSU models or the above models with older firmware versions can
only be programmed as 'P25 Generic' since they are not capable of extended
communications with the DVR.
Digital Vehicular Repeater Interfaced to XTL
April 2014
DVRS Installation & Programming Guide – PART II
1500
2500
5000
4000
6000
7000
TM
5000 (O3 or O5) or XTL
PSU Firmware Revision Required
R9.00.00 and higher
Note: It is highly recommended to always use
the latest released PSU firmware to ensure all
fixes and new features are included.
R7.00.05 and higher
TM
2500 (M5)
8M083X01 Rev. 16
6881013Y39
Page 15 of 79
