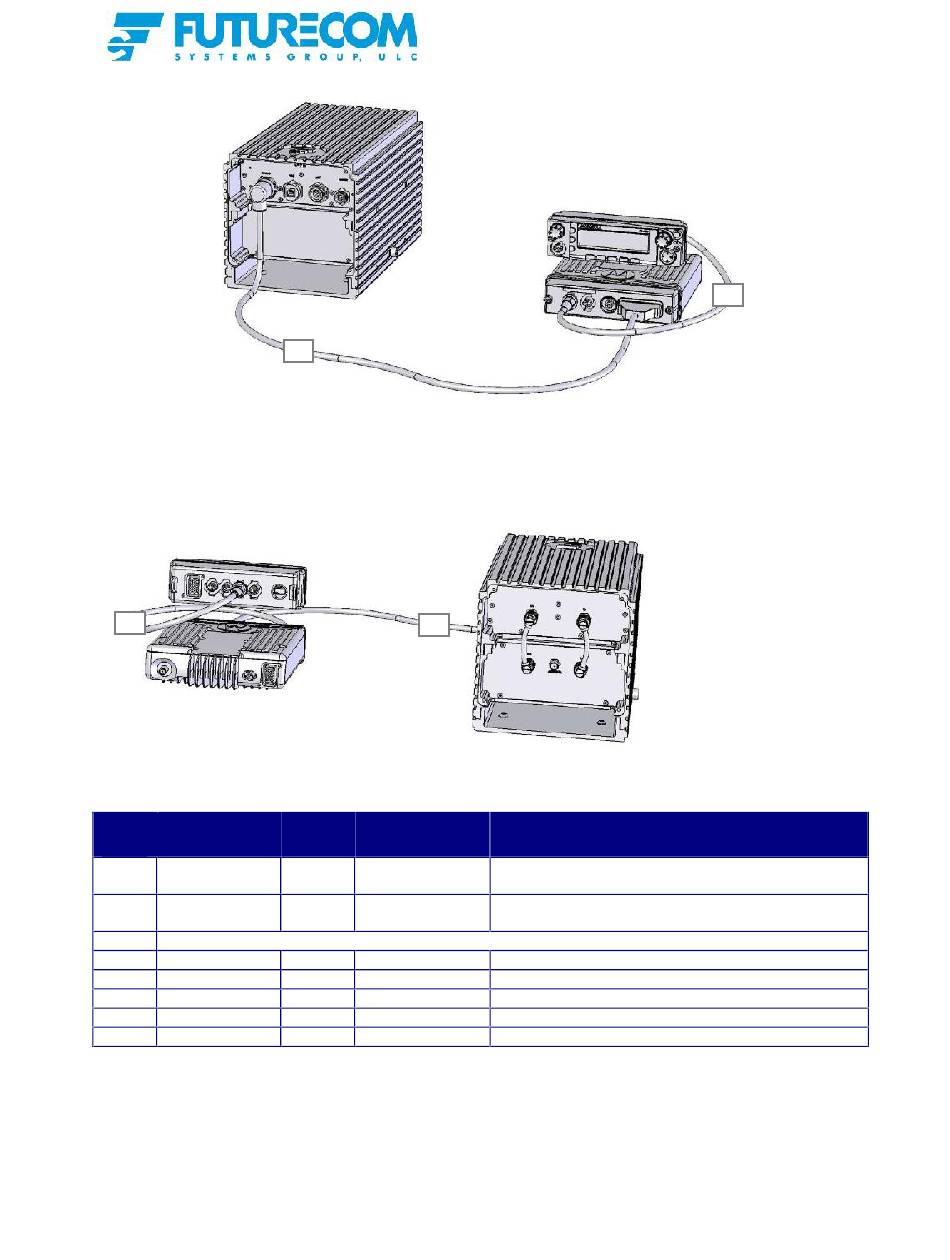

Figure 24 Cross-Band DVRS Interconnect Cabling - Front

2

Figure 25 Cross-Band DVRS Interconnect Cabling - Back

Ref PN
#
1a 7W083X05-01
1b 1W083B09-01
2 Control Head cable provided by Motorola
3 7W083X06-01
4 7W083X17-01
5 7W083X09-01
6 7W083X16-01
- 1W083A01-01

Table 6 Summary of DVRS Control and RF Cables

April 2014
DVRS Installation & Programming Guide – PART I
1
1
Length Order Code
3ft DDN9028
3ft DDN9029
2.5ft DDN9031
3ft DDN9034
1ft DDN9032
3ft DDN9033
18ft DDN9030
Notes
DVR to XTL Control Cable
Custom lengths available – up to 25ft.
Replaces 1a if a Motorola Siren is to be interfaced
to the MSU.
Auxiliary Cable.
MSU to In-Band Filtering RF Cable
RF switch option cable
DVR to In-Band Filtering RF Cable
DVR Power cable
8M083X01 Rev. 16
6881013Y39
2
Page 23 of 30
