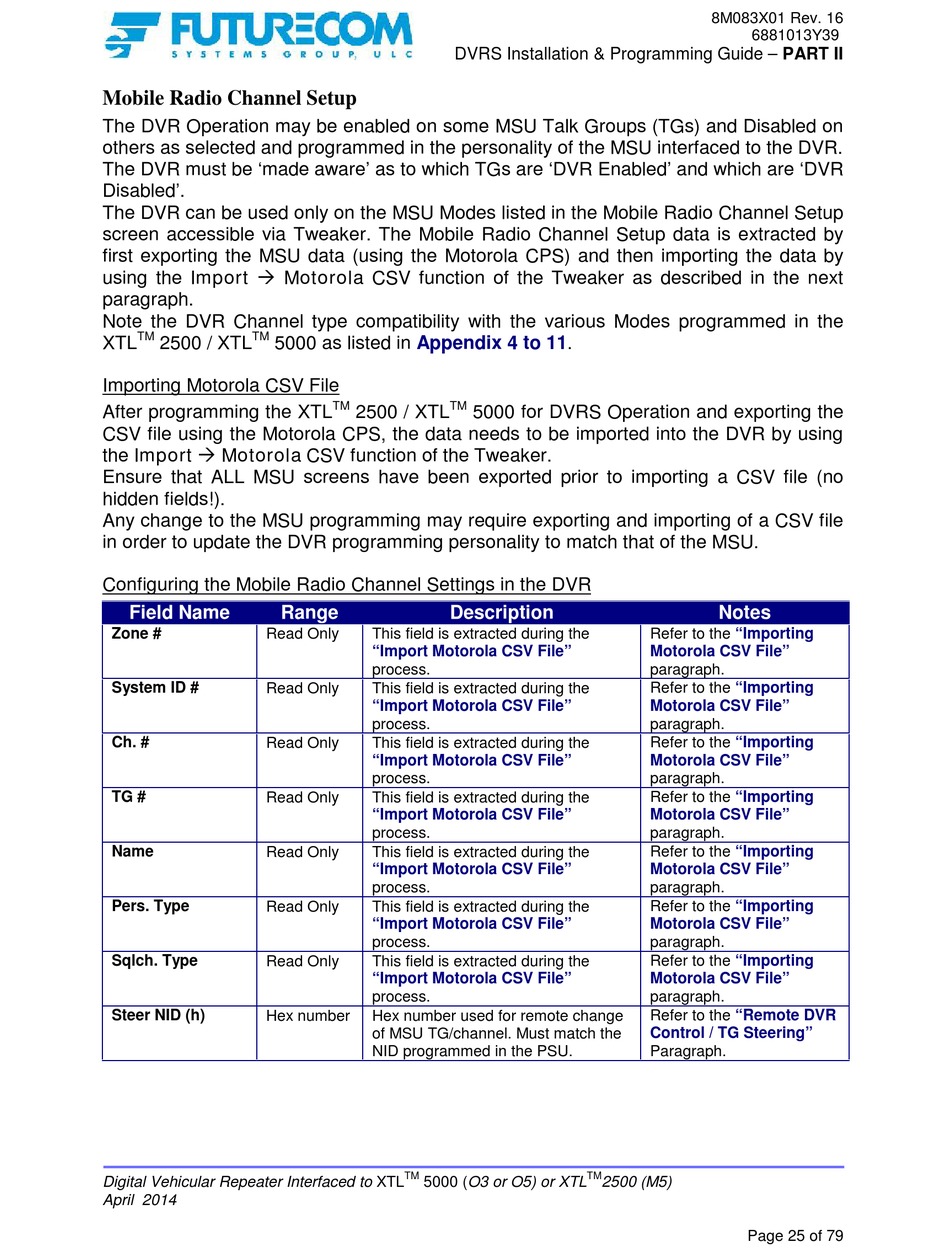

Mobile Radio Channel Setup

The DVR Operation may be enabled on some MSU Talk Groups (TGs) and Disabled on
others as selected and programmed in the personality of the MSU interfaced to the DVR.
The DVR must be 'made aware' as to which TGs are 'DVR Enabled' and which are 'DVR
Disabled'.
The DVR can be used only on the MSU Modes listed in the Mobile Radio Channel Setup
screen accessible via Tweaker. The Mobile Radio Channel Setup data is extracted by
first exporting the MSU data (using the Motorola CPS) and then importing the data by
using the Import  Motorola CSV function of the Tweaker as described in the next
paragraph.
Note the DVR Channel type compatibility with the various Modes programmed in the
TM TM
XTL 2500 / XTL 5000 as listed in
Importing Motorola CSV File
After programming the XTL
CSV file using the Motorola CPS, the data needs to be imported into the DVR by using
the Import  Motorola CSV function of the Tweaker.
Ensure that ALL MSU screens have been exported prior to importing a CSV file (no
hidden fields!).
Any change to the MSU programming may require exporting and importing of a CSV file
in order to update the DVR programming personality to match that of the MSU.
Configuring the Mobile Radio Channel Settings in the DVR
Field Name Range
Zone # Read Only
System ID #
Read Only
Ch. #
Read Only
TG #
Read Only
Name Read Only
Pers. Type Read Only
Sqlch. Type Read Only
Steer NID (h) Hex number
Digital Vehicular Repeater Interfaced to XTL
April 2014
DVRS Installation & Programming Guide – PART II
Appendix 4 to
TM TM
2500 / XTL 5000 for DVRS Operation and exporting the
Description
This field is extracted during the
"Import Motorola CSV File"
process.
This field is extracted during the
"Import Motorola CSV File"
process.
This field is extracted during the
"Import Motorola CSV File"
process.
This field is extracted during the
"Import Motorola CSV File"
process.
This field is extracted during the
"Import Motorola CSV File"
process.
This field is extracted during the
"Import Motorola CSV File"
process.
This field is extracted during the
"Import Motorola CSV File"
process.
Hex number used for remote change
of MSU TG/channel. Must match the
NID programmed in the PSU.
TM
5000 (O3 or O5) or XTL
8M083X01 Rev. 16
11.
Notes
Refer to the
Motorola CSV File"
paragraph.
Refer to the
Motorola CSV File"
paragraph.
Refer to the
Motorola CSV File"
paragraph.
Refer to the
Motorola CSV File"
paragraph.
Refer to the
Motorola CSV File"
paragraph.
Refer to the
Motorola CSV File"
paragraph.
Refer to the
Motorola CSV File"
paragraph.
Refer to the
Control / TG Steering"
Paragraph.
TM
2500 (M5)
6881013Y39
"Importing
"Importing
"Importing
"Importing
"Importing
"Importing
"Importing
"Remote DVR
Page 25 of 79
