DVRS Installation & Programming Guide – PART I
Wiring Diagrams (MSU Power Cable not shown)

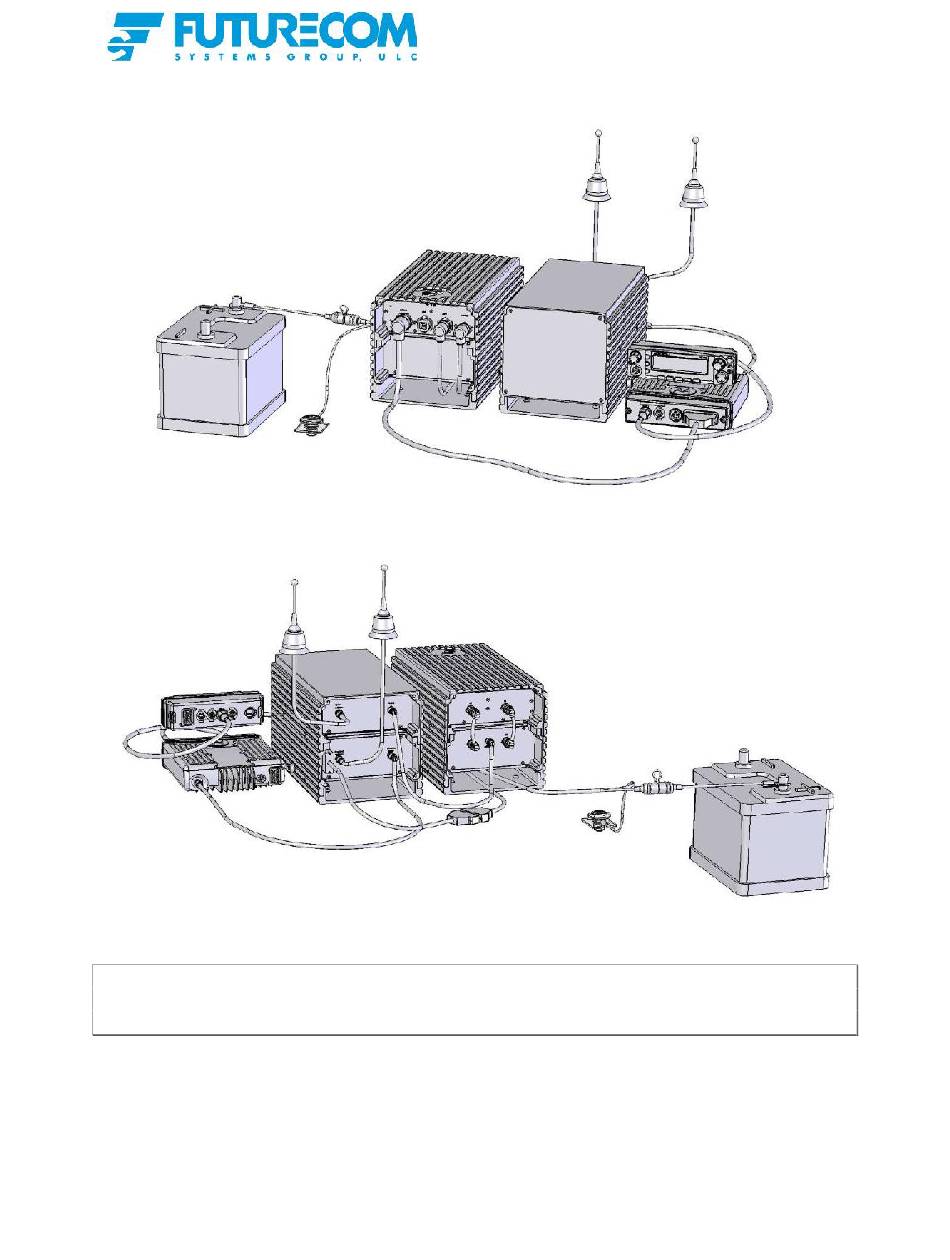

Figure 12 In-Band DVRS (VHF or UHF) Wiring Details - Front View
Figure 13 In-Band DVRS (VHF or UHF) Wiring Details - Back View
NOTE
TM
TM
For detailed XTL
2500 / XTL
5000 installation information, please refer to the
Installation Manuals available from Motorola.
April 2014
Page 15 of 30
