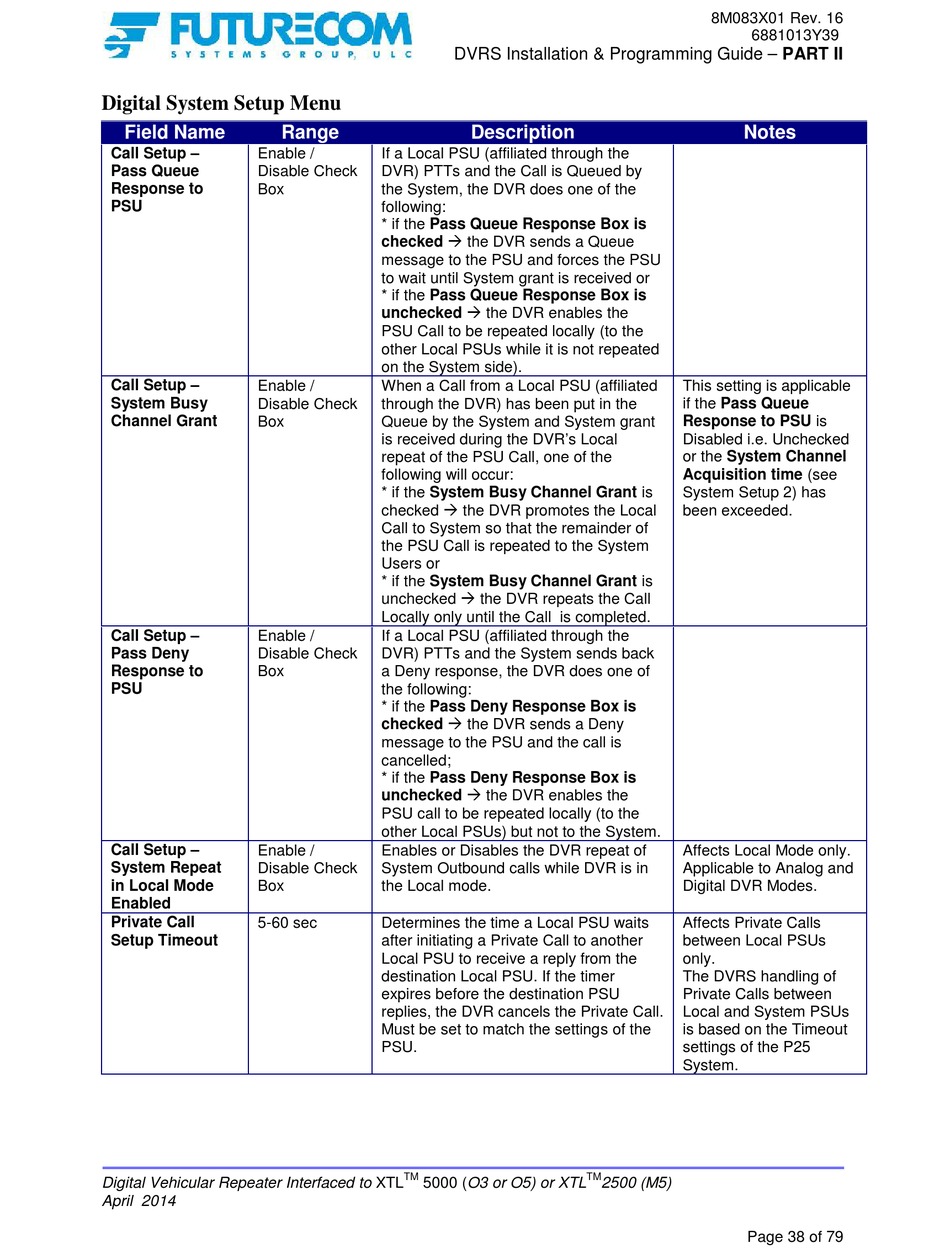

Digital System Setup Menu

Field Name
Call Setup – Enable /
Pass Queue Disable Check
Response to
Box
PSU
Call Setup – Enable /
System Busy Disable Check
Channel Grant Box
Call Setup –
Enable /
Pass Deny Disable Check
Response to Box
PSU
Call Setup – Enable /
System Repeat
Disable Check
in Local Mode
Box
Enabled
Private Call
5-60 sec
Setup Timeout
Digital Vehicular Repeater Interfaced to XTL
April 2014
DVRS Installation & Programming Guide – PART II
Range
If a Local PSU (affiliated through the
DVR) PTTs and the Call is Queued by
the System, the DVR does one of the
following:
* if the Pass Queue Response Box is
checked  the DVR sends a Queue
message to the PSU and forces the PSU
to wait until System grant is received or
* if the Pass Queue Response Box is
unchecked  the DVR enables the
PSU Call to be repeated locally (to the
other Local PSUs while it is not repeated
on the System side).
When a Call from a Local PSU (affiliated
through the DVR) has been put in the
Queue by the System and System grant
is received during the DVR's Local
repeat of the PSU Call, one of the
following will occur:
* if the System Busy Channel Grant is
checked  the DVR promotes the Local
Call to System so that the remainder of
the PSU Call is repeated to the System
Users or
* if the System Busy Channel Grant is
unchecked  the DVR repeats the Call
Locally only until the Call is completed.
If a Local PSU (affiliated through the
DVR) PTTs and the System sends back
a Deny response, the DVR does one of
the following:
* if the Pass Deny Response Box is
checked  the DVR sends a Deny
message to the PSU and the call is
cancelled;
* if the Pass Deny Response Box is
unchecked  the DVR enables the
PSU call to be repeated locally (to the
other Local PSUs) but not to the System.
Enables or Disables the DVR repeat of
System Outbound calls while DVR is in
the Local mode.
Determines the time a Local PSU waits
after initiating a Private Call to another
Local PSU to receive a reply from the
destination Local PSU. If the timer
expires before the destination PSU
replies, the DVR cancels the Private Call.
Must be set to match the settings of the
PSU.
TM
5000 (O3 or O5) or XTL
Description
TM
2500 (M5)
8M083X01 Rev. 16
6881013Y39
Notes
This setting is applicable
if the Pass Queue
Response to PSU is
Disabled i.e. Unchecked
or the System Channel
Acquisition time (see
System Setup 2) has
been exceeded.
Affects Local Mode only.
Applicable to Analog and
Digital DVR Modes.
Affects Private Calls
between Local PSUs
only.
The DVRS handling of
Private Calls between
Local and System PSUs
is based on the Timeout
settings of the P25
System.
