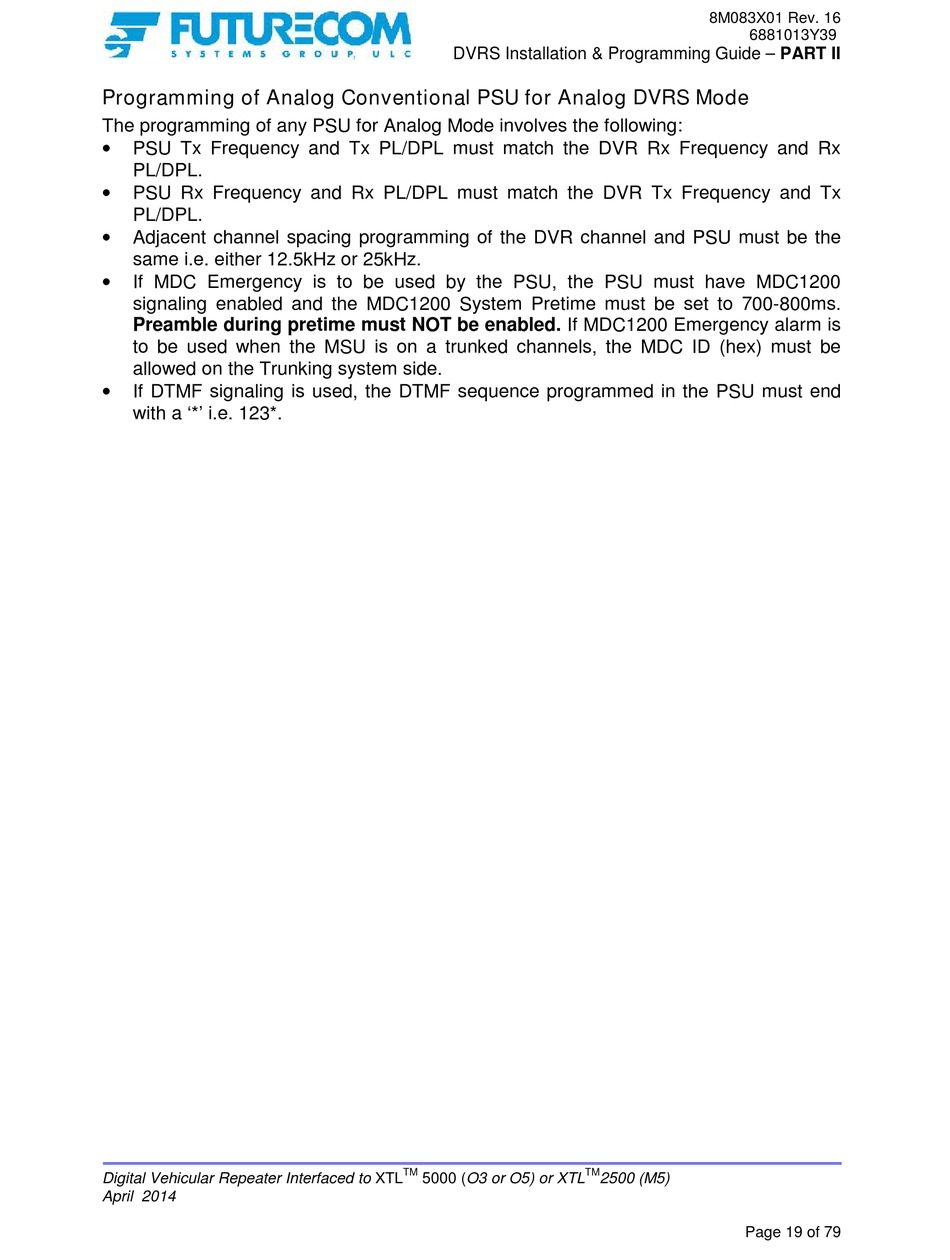

Programming of Analog Conventional PSU for Analog DVRS Mode

The programming of any PSU for Analog Mode involves the following:

PSU Tx Frequency and Tx PL/DPL must match the DVR Rx Frequency and Rx
PL/DPL.

PSU Rx Frequency and Rx PL/DPL must match the DVR Tx Frequency and Tx
PL/DPL.

Adjacent channel spacing programming of the DVR channel and PSU must be the
same i.e. either 12.5kHz or 25kHz.

If MDC Emergency is to be used by the PSU, the PSU must have MDC1200
signaling enabled and the MDC1200 System Pretime must be set to 700-800ms.
Preamble during pretime must NOT be enabled. If MDC1200 Emergency alarm is
to be used when the MSU is on a trunked channels, the MDC ID (hex) must be
allowed on the Trunking system side.

If DTMF signaling is used, the DTMF sequence programmed in the PSU must end
with a '*' i.e. 123*.
