DataView™ LI55 Level Controller
Configuration for 12 or 24 VDC Power
The DataView allows for either a 12 or 24 VDC power option and comes
shipped from the factory ready to operate from 24 VDC. DO NOT
exceed these voltage ratings for the DataView.
To configure the DataView for 12 VDC power:
1. Remove all the connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch to expose the board.

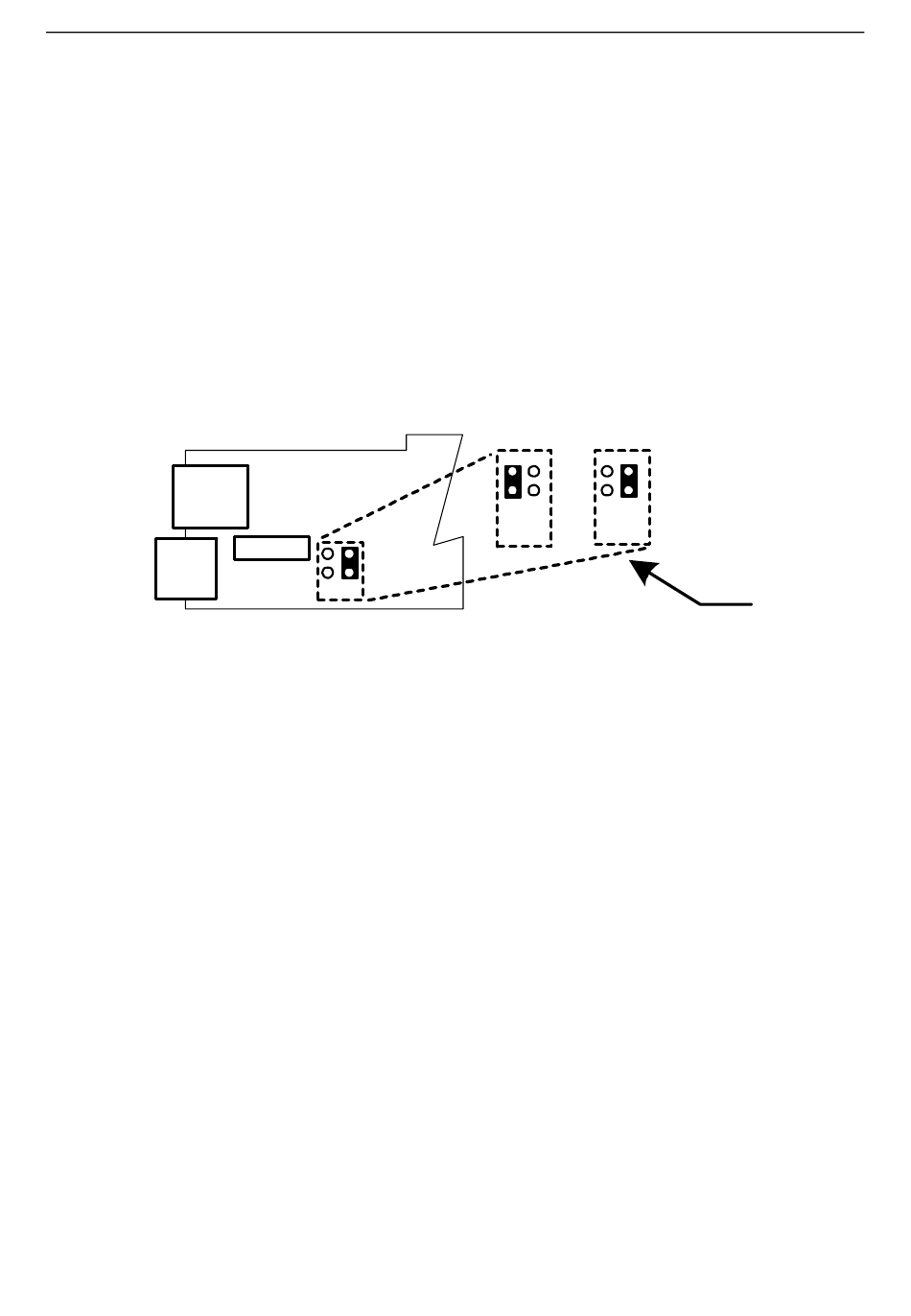

4. Configure the J9 jumper behind the power connector for the
desired power configuration as shown below.
M-LINK
24 VDC
+
12 VDC
_
POWER
MAIN BOARD
J9
DataView Power Jumper Settings
(Applies to LI55-8_ _1 version only)
J9 CONFIGURATION
24 V
12 V
Quick Start
Factory
Default
5 | P a g e
