Operation
5.2.3

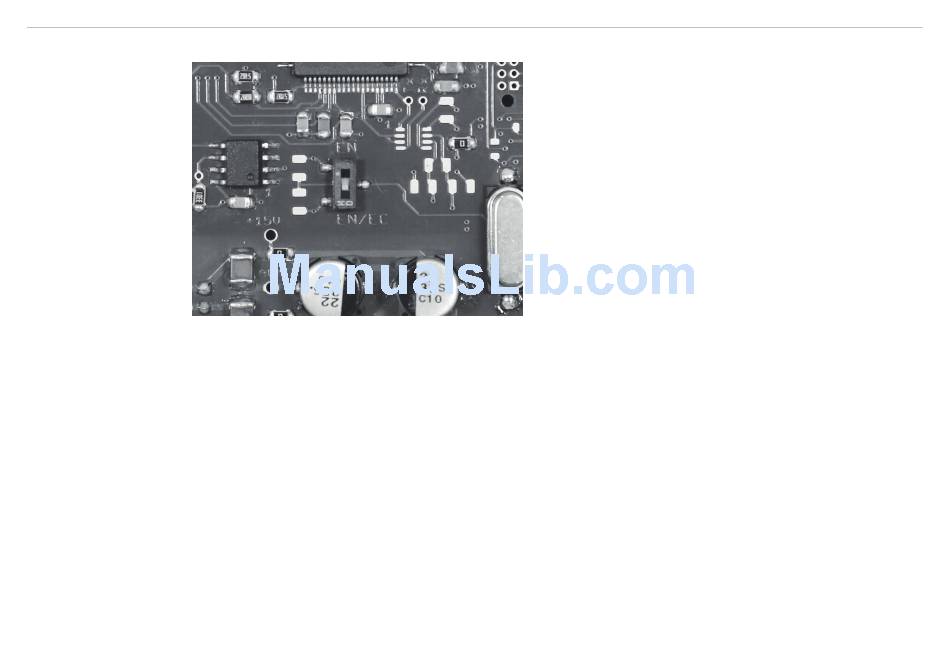

Fig. 17 Change Ethernet/EtherCAT
A switch between Ethernet and EtherCAT, is possible via a hardware switch, see
basic unit DT6230, see Chap. 7.2.
If the switch is in position
setting. If the switch is in position
software setting. To change the interface it is necessary to restart the controller.
5.3
The controller operates with a limit frequency of 5 kHz (factory setting). In case that the limit frequency is
reduced to 20 Hz, the output signal is filtered more efficiently and the resolution is therefore improved; at the
same time the dynamic of the system is reduced. The limit frequency can only be changed via the Ethernet
interface.
capaNCDT 6200

Change Ethernet / EtherCAT

EN
(Ethernet
EN/EC

Changing Limit Frequency

)
, always the Ethernet interface is active independent of the software
(Ethernet/EtherCAT), then the active interface depends on the
Fig. 17 or via software on the
Page 44
