Installation and Assembly
CS3
CS5
CS10
M=1:2
M=1:2
M=1:2
Connector side
ø60h7 (2.36 dia.)
ø30h7 (1.18 dia.)
ø40h7 (1.58 dia.)
Dimensions in mm
(inches)
Circumferential clamp-
ing possible from 3 mm
behind the front face.
ø20h7 (.79 dia.)
ø20h7 (.79 dia.)
ø20h7 (.79 dia.)

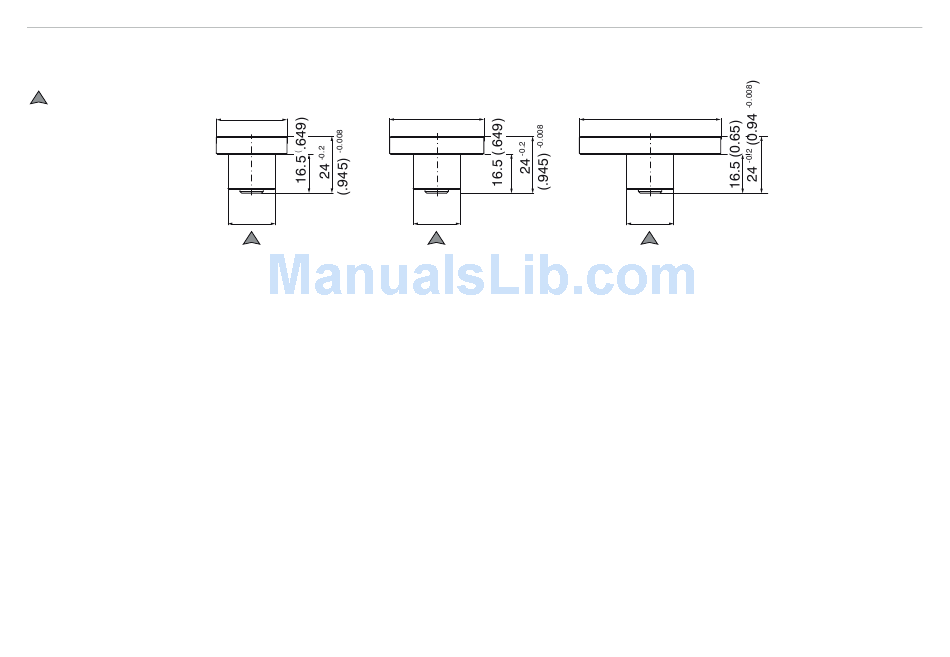

Dimensional drawings
of other sensors are
available on request.
capaNCDT 6200
Page 24
