Installation and Assembly
4.7
4.7.1
The power supply and the signal output are located at the front side of the controller.

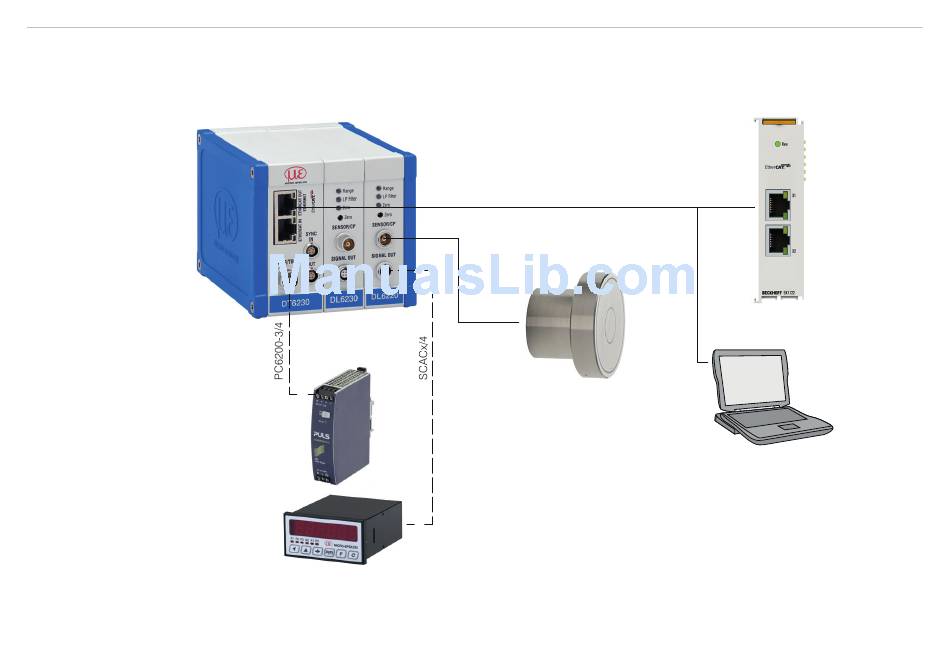

Fig. 14 Measuring system assembly
capaNCDT 6200
Electrical Connections
Connectivity Options
Controller
LAN cable with RJ-45 connectors
PS 2020
DDxx
CCxxx
Sensor
EtherCAT
SPS
Ethernet
PC
Page 38
