Installation and Assembly

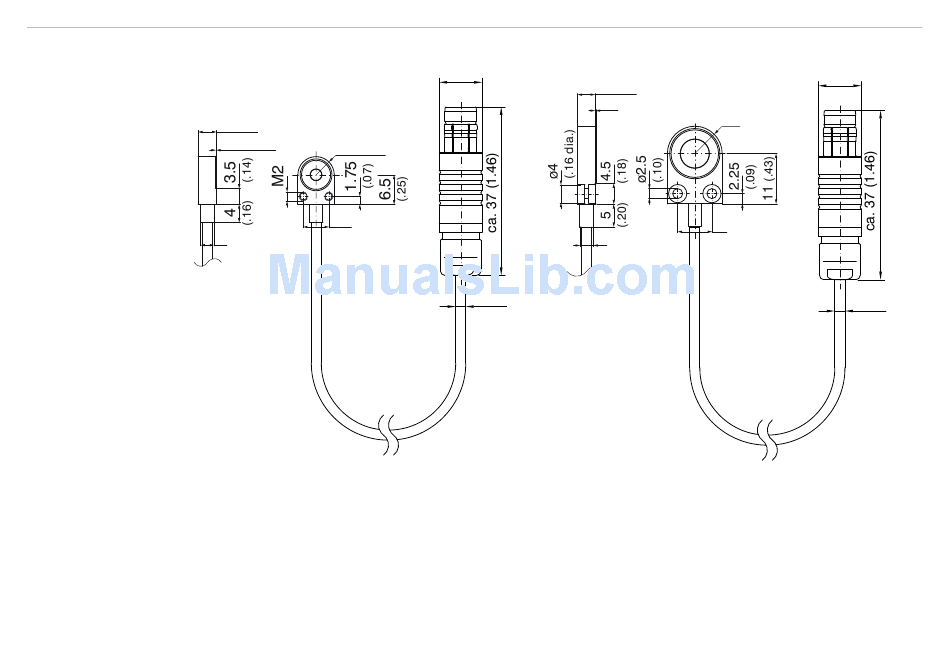

Flat sensors
CSH02FL-CRmx,
CSH05FL-CRmx
Dimensions in mm (inches), not to scale
capaNCDT 6200
4
(.16)
0.1
(.003)
R4
(.16)
5.5
ø3
(.22)
(.12 dia.)
ca. 9.4 (.37)
4
(.16)
0.1
(.003)
ø3
(.12 dia.)
ø2.2
(.09)
CSH1FL-CRmx,
ca. 9.4 (.37)
CSH1.2FL-CRmx
R6
(.24)
7.5
(.29)
ø2.2 (.09)
Page 27
