Installation and Assembly
The wiring to the preceding demodulator module (5) can be solved using the supplied plugging off assis-
tance as follows:
capaNCDT 6200
Connect both flat flexible cables (5) of the preceding demodulator module with the new demodulator
module (6).
Put on the right housing cover (3).
Screw the sleeve nuts (4b) on the threaded rods on the right side of the controller and tighten the sleeve
nuts.
1. Press the plugging off assistance with the recess laterally to the connector (5).
2. Loosen the connector with a lever movement.
3. Loosen the other side of the connector in the same way.
5 Wiring preceding demodulator
module
6 Wiring following demodulator
module
5
6
5

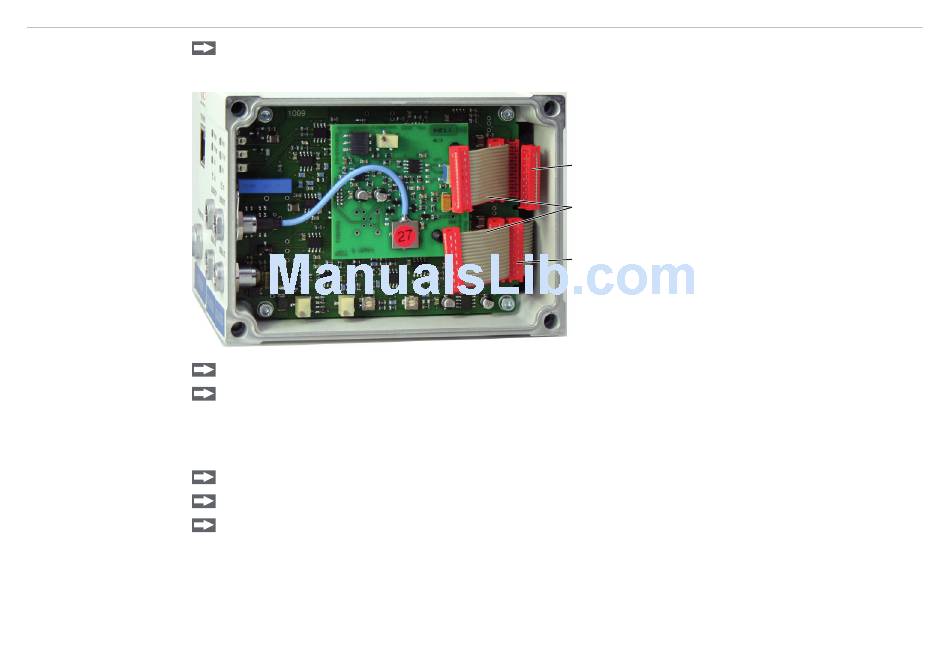

Fig. 10 Wiring demodulator modules
