Installation and Assembly
4.6
Non-contact target earthing
In several applications, the target earthing is difficult or even impossible.
Different to other systems, with capaNCDT systems is no target earthing necessary

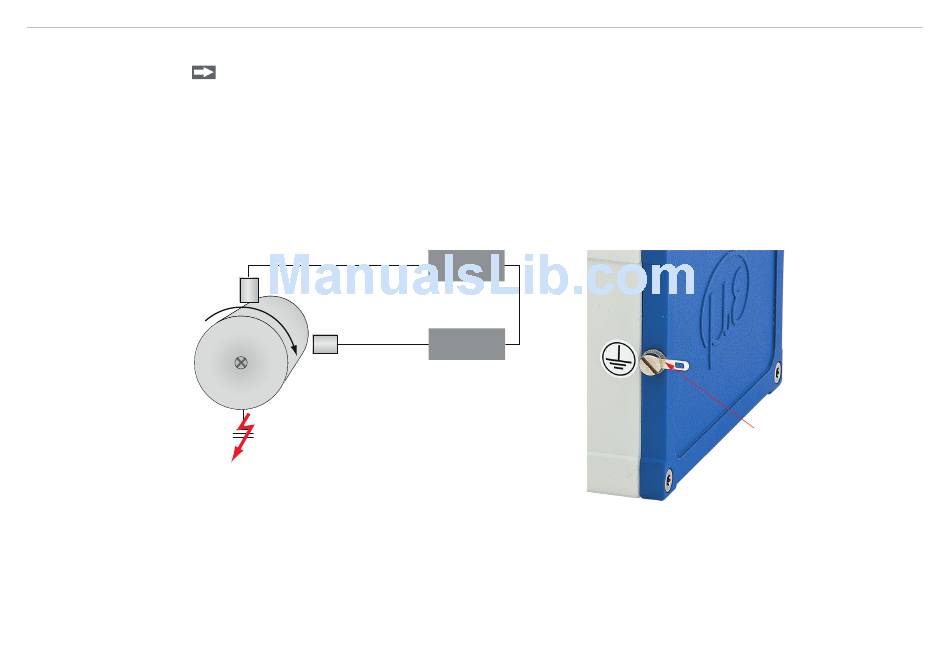

The drawing below shows two synchronized capaNCDT sensors, measuring against a mill, see
to the unique synchronizing technique of MICRO-EPSILON a special target earthing is not needed in most
cases.
Sensor
Fig. 12 Position and unbalance measuring with two
measuring systems
No target grounding required with two synchronized capaNCDT sensors.
If necessary use the ground connection on the housing cover. The ground connection is included with the
conversion kit supplied, see Chap.
capaNCDT 6200

Ground Connection, Earthing

Make sure you have a sufficient grounding of the measuring object, for example connect it with the sen-
sor or the supply ground.
Sensor
Controller
sync.
Controller
Fig. 13 Ground connection on the housing cover
A 1.1.
Fig. 12. Due
Ground connection
Page 37
