Installation and Assembly

4.
4.1
No sharp-edged or heavy objects may get into contact with the sensor cable sheath.
i
4.2
The sensors may be mounted free-standing or flush.
When assembling, make sure that the polished sensor surface is not scratched.
4.2.1
This simple type of fixture is only recommended for a force and vibration-free installation position. The grub
screw must be made of plastic so that it cannot damage or deform the sensor housing.

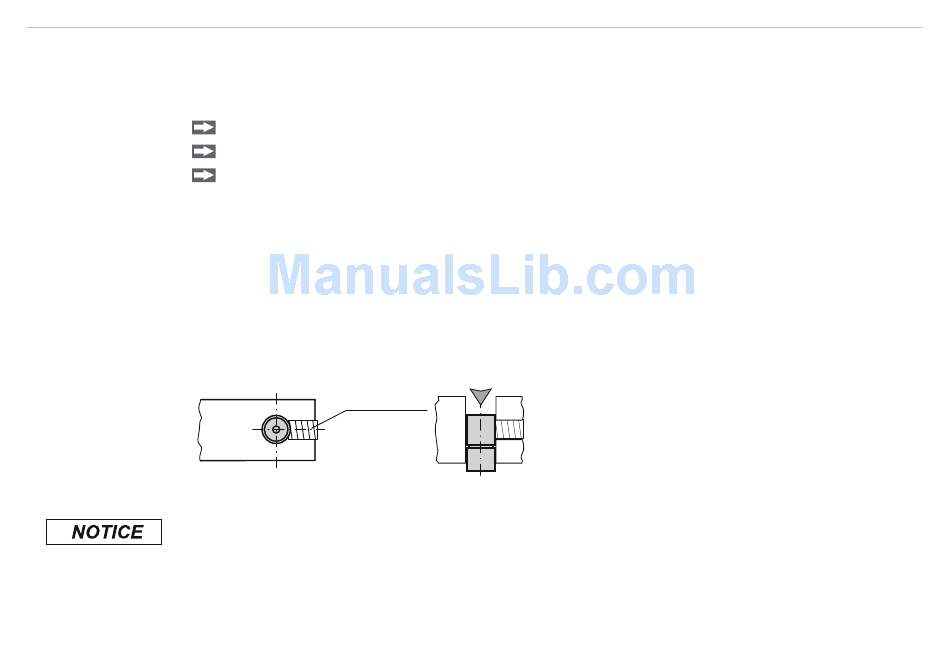

Fig. 5 Radial point clamping with grub screw
Do not use metal grub screws!
> Danger of damaging the sensor
capaNCDT 6200
Installation and Assembly

Precautionary Measures

Protect the cable against pressure loads in pressurised rooms.
Avoid kinks in any case.
Check the connections for tight fit.
A damaged cable cannot be repaired.

Sensor

Radial Point Clamping with Grub Screw, Cylindric Sensors

Grub screw
Page 21
