Installation and Assembly
4.2.4
Cylindric sensors
ø6f7(.236 dia.)
Connector side
Dimensions in mm
(inches)
Circumferential clamp-
ing possible from 3 mm
behind the front face.

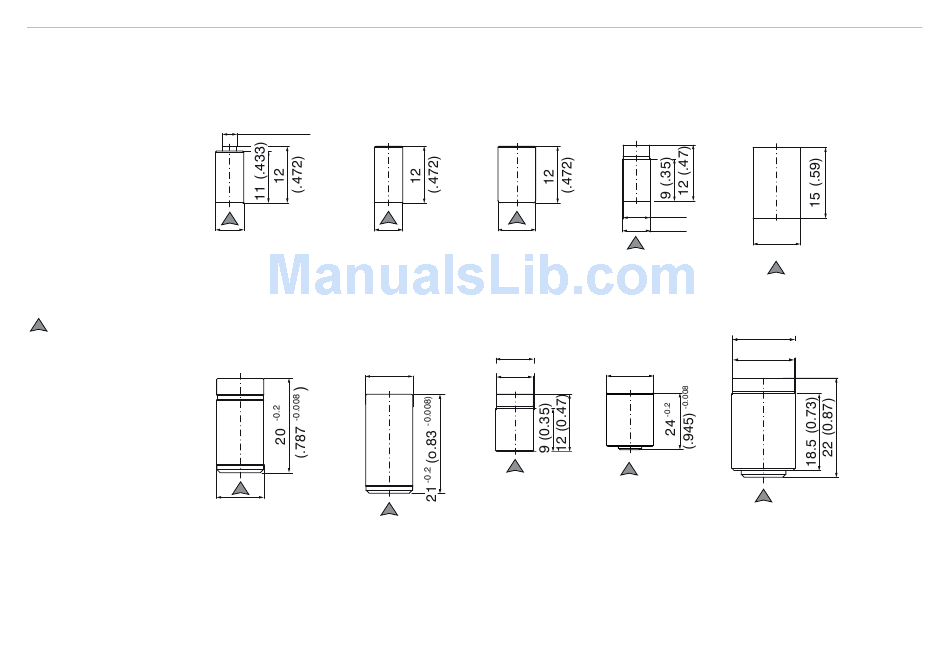

Dimensional drawings
of other sensors are
ø10h7 (.394 dia.)
available on request.
capaNCDT 6200

Dimensional Drawings Sensors

CS005 CS02
ø3 (0.118 dia.)
ø6f7 (.236 dia.)
CS1HP
CS1
ø10h7 (.394 dia)
CS05 CSE05
ø8f7 (.314 dia.)
CS2
CSE1
M=1:2
ø8f7 (0.31 dia.)
ø20h7 (.79 dia.)
ø7.7 (0.30 dia.)
CS08
ø5.7 (.22)
ø6f7
ø10h7
(.24 dia.)
(.394 dia.)
CSE2
ø14h7 (0.55 dia.)
ø13.7 (0.54 dia.)
Page 23
