Operation

5.
5.1
i
5.2
5.2.1
1) LP Filter only switchable via Ethernet.
capaNCDT 6200
Operation

Starting Up

Connect the the display/output devices through the signal output socket, see Chap. 4.7, see Chap.
4.7.2, see Chap. 4.7.3, before connecting the device to the power supply and switching on the power
supply.
Allow the measuring system to warm up before the first measurement or calibration for approximately
15 min.

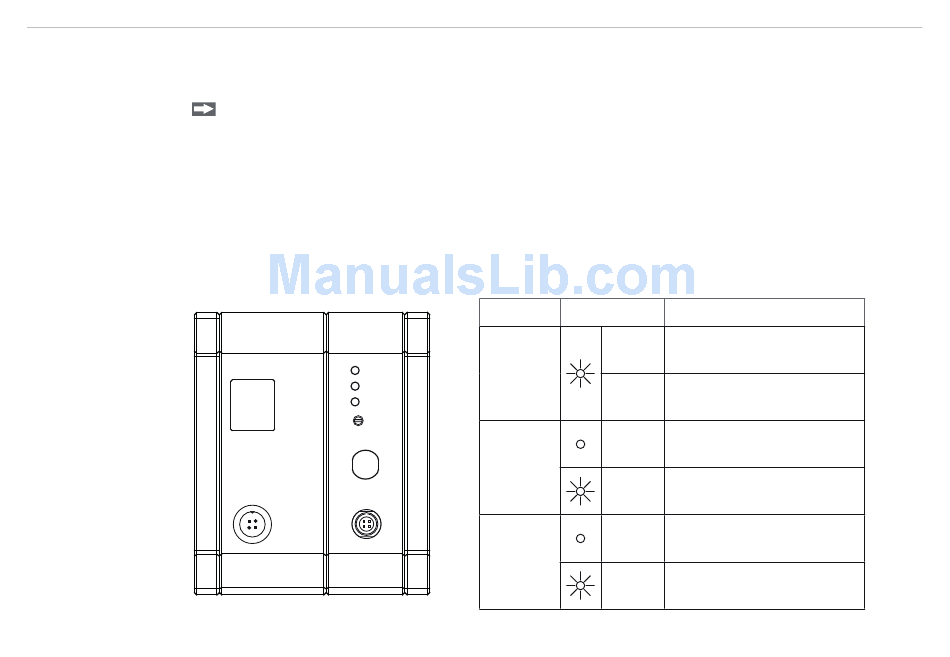

Operating or Display Elements

LED's

Range
ETHERNET
LP Filter
Zero
Zero
SENSOR/CP
POWER/TRIG.
SIGNAL OUT
LED Color
green
Range
red
off
LP Filter
1
red
off
Zero
red
Function
Target in measuring range
Measuring range exceeded
Standard bandwidth active
20 Hz Low-pass filter on the
analog outputs enabled
Zero poti in basic position
(right stop)
Zero poti adjusted
