Housing Cover - MICRO-EPSILON capaNCDT 6200 Operating Instructions Manual

Installation and Assembly
4.4.2

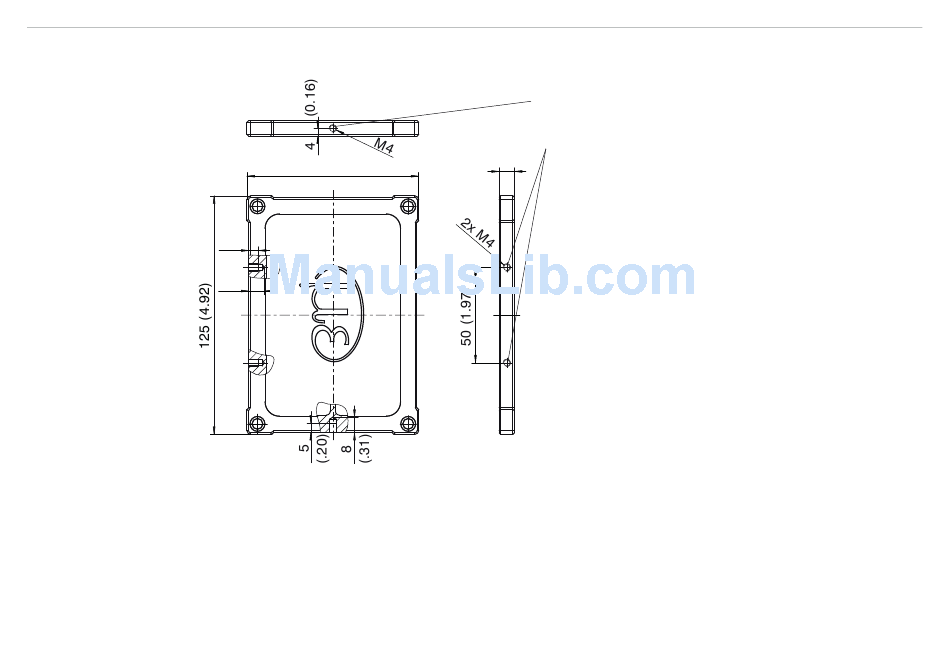

Fig. 8 Dimensional drawing housing cover
Dimensions in mm (inches), not to scale
The controller is mounted using mounting plates or holding clamps for a mounting on DIN-rail which are
included with the conversion kit supplied, see Chap.
capaNCDT 6200

Housing Cover

90 (3.54)
5
(.20)
8
(.31)
Mounting hole M4 for
wall fastening respectively
mounting on DIN-rail
8 (.31)
A 1.1.
Page 33
