ci5000 Series Printer Technical Service Manual
Creating a Logo
A pixel is the smallest unit in a picture that can be addressed or controlled. Printable bitmap images can
vary in height up to 31 pixels and a width that is evenly divisible by 8 (i.e. widths of 8, 16, 24, 32, 40,...).
The bitmap image size is expressed as pixel Height x Width. In this example, the Paint program will be
used to create a 31x48 bit pixel image of concentric rectangles.

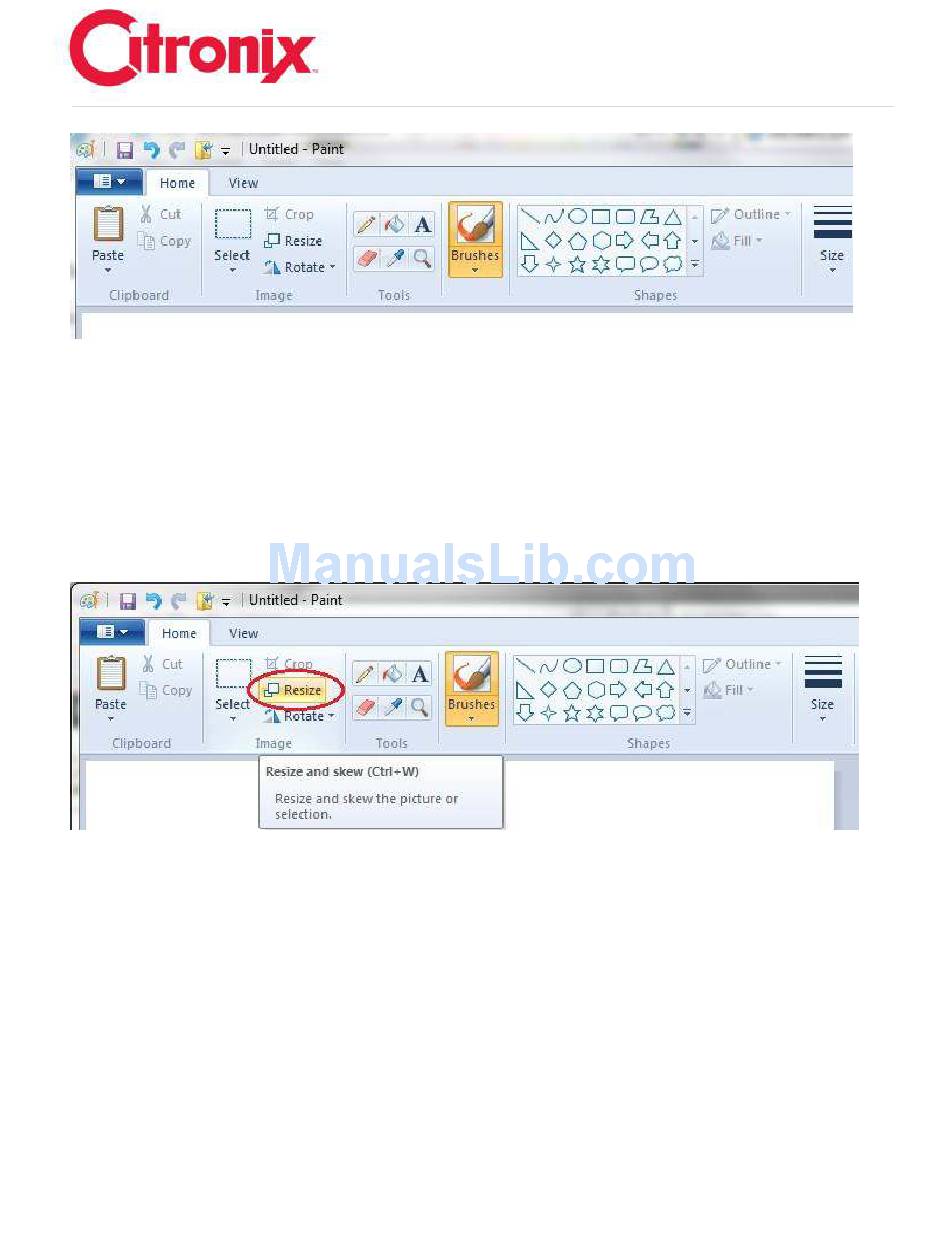

Resize the work area to the Logo bitmap image size. Click on Image Resize.
Set the graphic size. First, uncheck the "Maintain aspect ratio" box and select Pixels, set "Horizontal" to
48 and "Vertical" to 31 (before and after changes shown).
Version 0.1 3-48
