Citronix ci5200 Technical & Service Manual page 205

First insert the USB into the CPU board. Allow 20 seconds for the printer to recognize and download the
file structure onto the USB. Then press the [Menu Tab]
press the [Files] button in the Navigation Tool Bar. Press the USB Icon on the left of the screen. If
this the first time the USB is used, the printer will automatically install the File Structure onto the USB.
Now the USB can be removed and plugged into a computer to install the Firmware.
Note: The new firmware must be loaded into the following file on the USB
(Citronix/System/Firmware). Placing it in any other file or location will not be recognized by the
printer.
Updating the firmware:

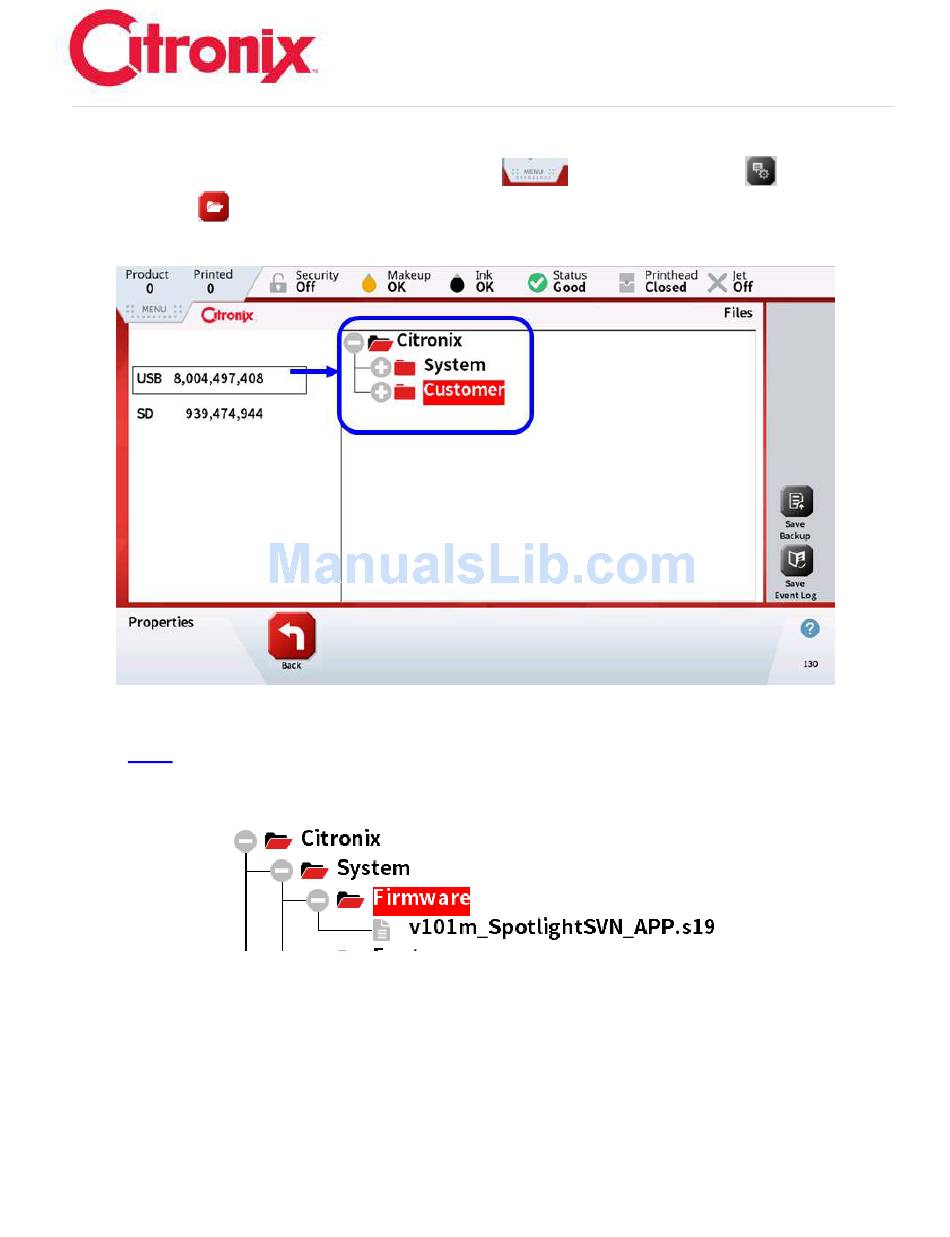

Once the USB is installed and the File is viewed on the screen (as seen below). Highlight the firmware
and press the [Install Firmware] button in the Function Tool Bar on the right side of the screen.
Version 0.1
ci5000 Series Printer Technical Service Manual
select the [Properties] button, then
6-61
