Mounting The Controller & Printhead; Printer Installation - Citronix ci5200 Technical & Service Manual

ci5000 Series Printer Technical Service Manual

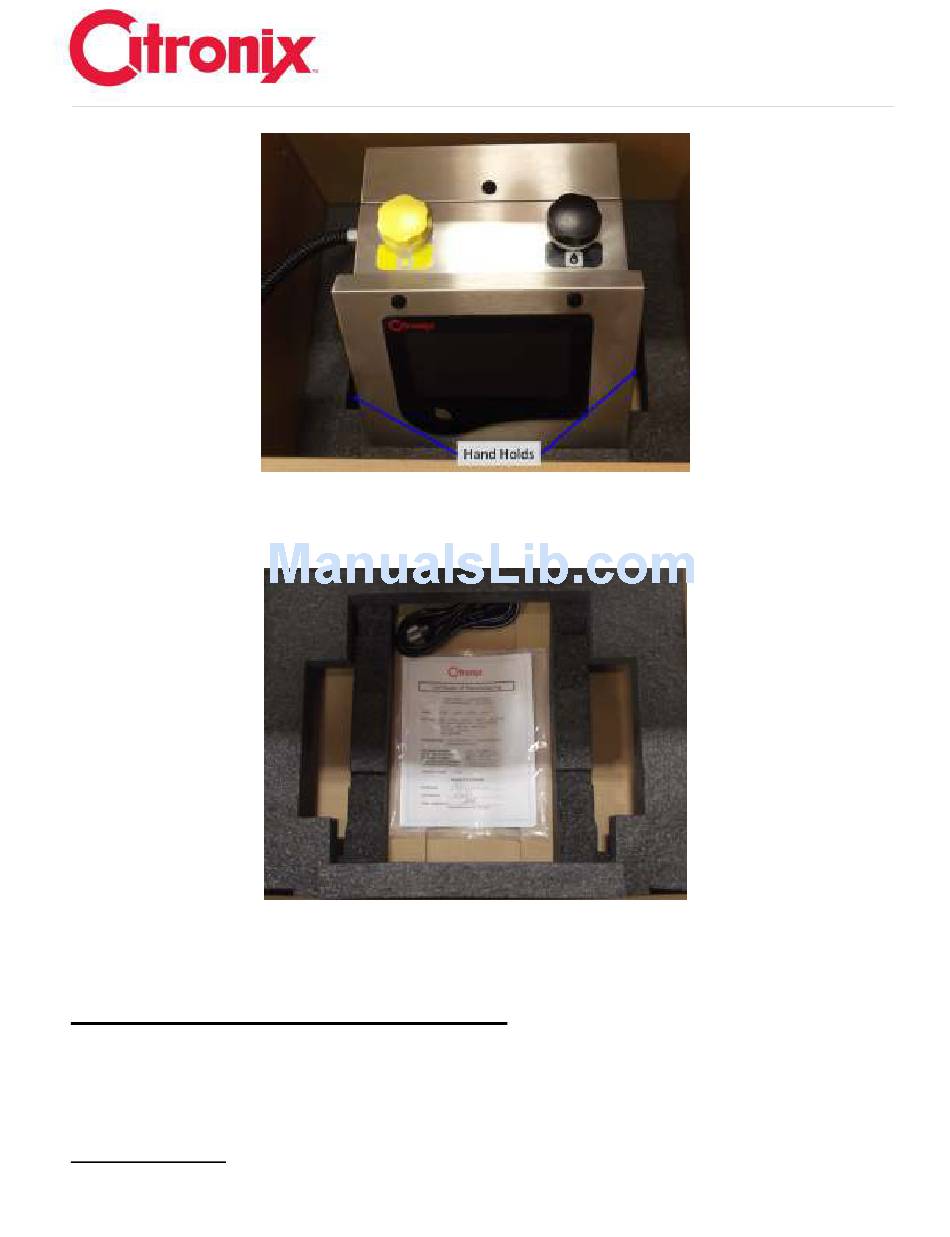

Place the Controller on a sturdy/strong table or cart and place the printhead over the cabinet.
Remove the Power Cord, QC sheet, and Printers Operations Guide from the bottom of the box.
Mounting the Controller & Printhead

Printer Installation

The following is general information for installing the printer in a wide range of working areas.
The printer cabinet and printhead installation dimensions are given in the diagrams in Section 1.
Cabinet Positioning:
Version 0.1 4-3
