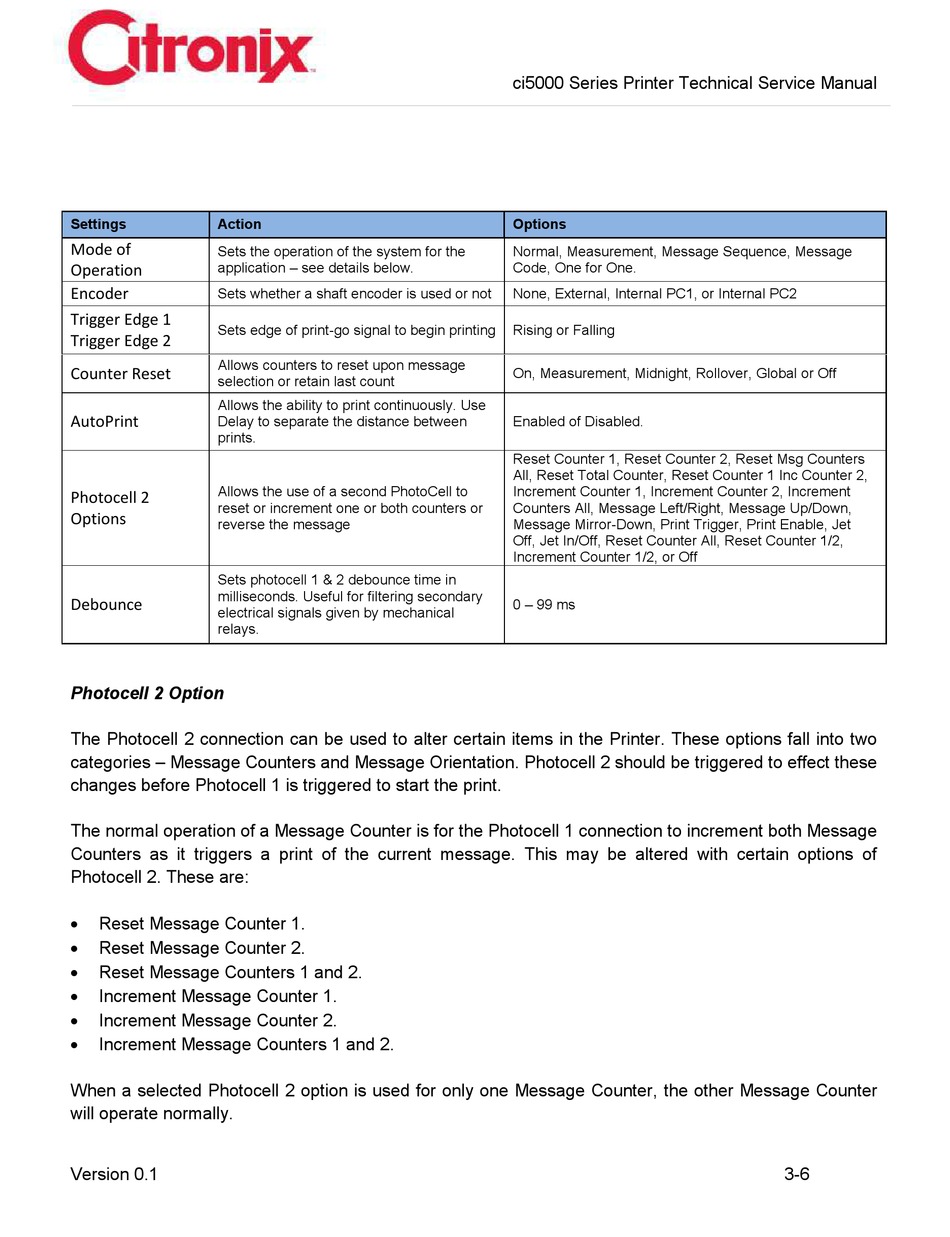

Settings Action
Mode of
Sets the operation of the system for the
application – see details below.
Operation
Encoder
Sets whether a shaft encoder is used or not
Trigger Edge 1
Sets edge of print-go signal to begin printing
Trigger Edge 2
Allows counters to reset upon message
Counter Reset
selection or retain last count
Allows the ability to print continuously. Use
AutoPrint
Delay to separate the distance between
prints.
Allows the use of a second PhotoCell to
Photocell 2
reset or increment one or both counters or
Options
reverse the message
Sets photocell 1 & 2 debounce time in
milliseconds. Useful for filtering secondary
Debounce
electrical signals given by mechanical
relays.
Photocell 2 Option
The Photocell 2 connection can be used to alter certain items in the Printer. These options fall into two
categories – Message Counters and Message Orientation. Photocell 2 should be triggered to effect these
changes before Photocell 1 is triggered to start the print.
The normal operation of a Message Counter is for the Photocell 1 connection to increment both Message
Counters as it triggers a print of the current message. This may be altered with certain options of
Photocell 2. These are:

Reset Message Counter 1.

Reset Message Counter 2.

 Reset Message Counters 1 and 2.
Increment Message Counter 1.

Increment Message Counter 2.

Increment Message Counters 1 and 2.
When a selected Photocell 2 option is used for only one Message Counter, the other Message Counter
will operate normally.
Version 0.1
ci5000 Series Printer Technical Service Manual
Options
Normal, Measurement, Message Sequence, Message
Code, One for One.
None, External, Internal PC1, or Internal PC2
Rising or Falling
On, Measurement, Midnight, Rollover, Global or Off
Enabled of Disabled.
Reset Counter 1, Reset Counter 2, Reset Msg Counters
All, Reset Total Counter, Reset Counter 1 Inc Counter 2,
Increment Counter 1, Increment Counter 2, Increment
Counters All, Message Left/Right, Message Up/Down,
Message Mirror-Down, Print Trigger, Print Enable, Jet
Off, Jet In/Off, Reset Counter All, Reset Counter 1/2,
Increment Counter 1/2, or Off
0 – 99 ms
