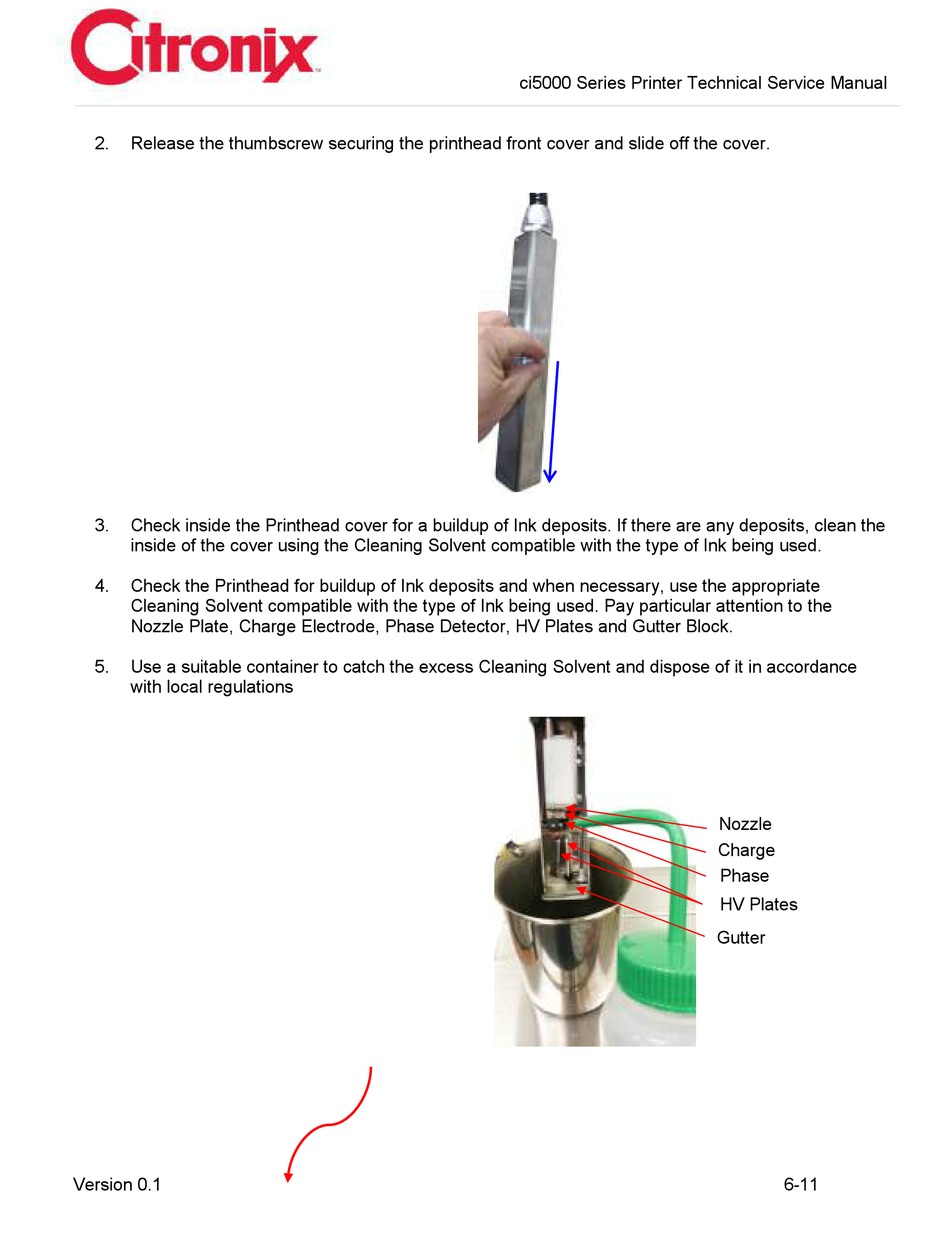

2. Release the thumbscrew securing the printhead front cover and slide off the cover.
3. Check inside the Printhead cover for a buildup of Ink deposits. If there are any deposits, clean the
inside of the cover using the Cleaning Solvent compatible with the type of Ink being used.
4. Check the Printhead for buildup of Ink deposits and when necessary, use the appropriate
Cleaning Solvent compatible with the type of Ink being used. Pay particular attention to the
Nozzle Plate, Charge Electrode, Phase Detector, HV Plates and Gutter Block.
5. Use a suitable container to catch the excess Cleaning Solvent and dispose of it in accordance
with local regulations
Version 0.1
ci5000 Series Printer Technical Service Manual
Nozzle
Plate
Charge
Electrode
Phase
Detector
HV Plates
Gutter
Block
6-11
