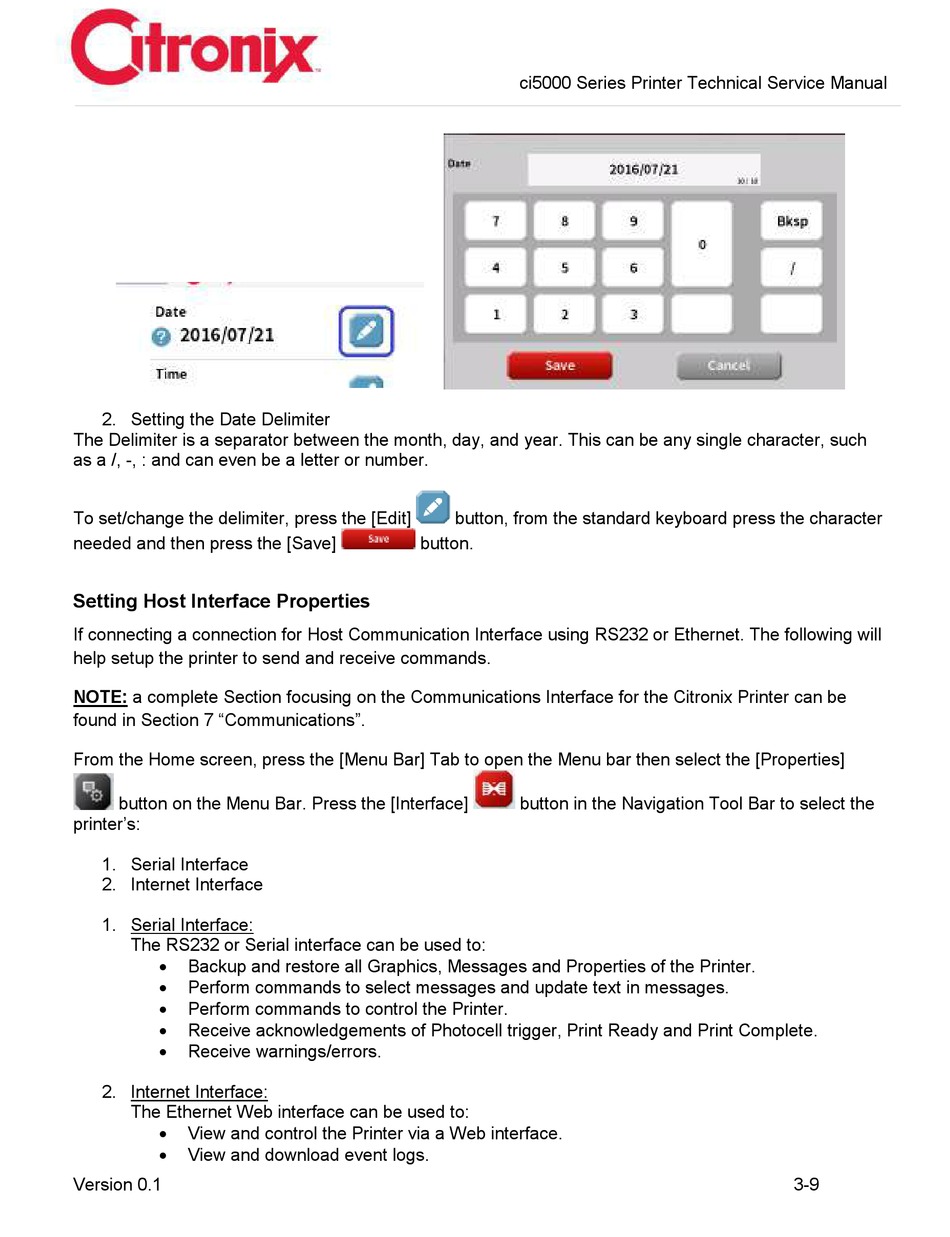

2. Setting the Date Delimiter
The Delimiter is a separator between the month, day, and year. This can be any single character, such
as a /, -, : and can even be a letter or number.
To set/change the delimiter, press the [Edit]
needed and then press the [Save]

Setting Host Interface Properties

If connecting a connection for Host Communication Interface using RS232 or Ethernet. The following will
help setup the printer to send and receive commands.
NOTE: a complete Section focusing on the Communications Interface for the Citronix Printer can be
found in Section 7 "Communications".
From the Home screen, press the [Menu Bar] Tab to open the Menu bar then select the [Properties]
button on the Menu Bar. Press the [Interface]
printer's:
1. Serial Interface
2. Internet Interface
1. Serial Interface:

The RS232 or Serial interface can be used to:

Backup and restore all Graphics, Messages and Properties of the Printer.

Perform commands to select messages and update text in messages.

Perform commands to control the Printer.

Receive acknowledgements of Photocell trigger, Print Ready and Print Complete.
Receive warnings/errors.
2. Internet Interface:

The Ethernet Web interface can be used to:

View and control the Printer via a Web interface.
View and download event logs.
Version 0.1
ci5000 Series Printer Technical Service Manual
button, from the standard keyboard press the character
button.
button in the Navigation Tool Bar to select the
3-9
