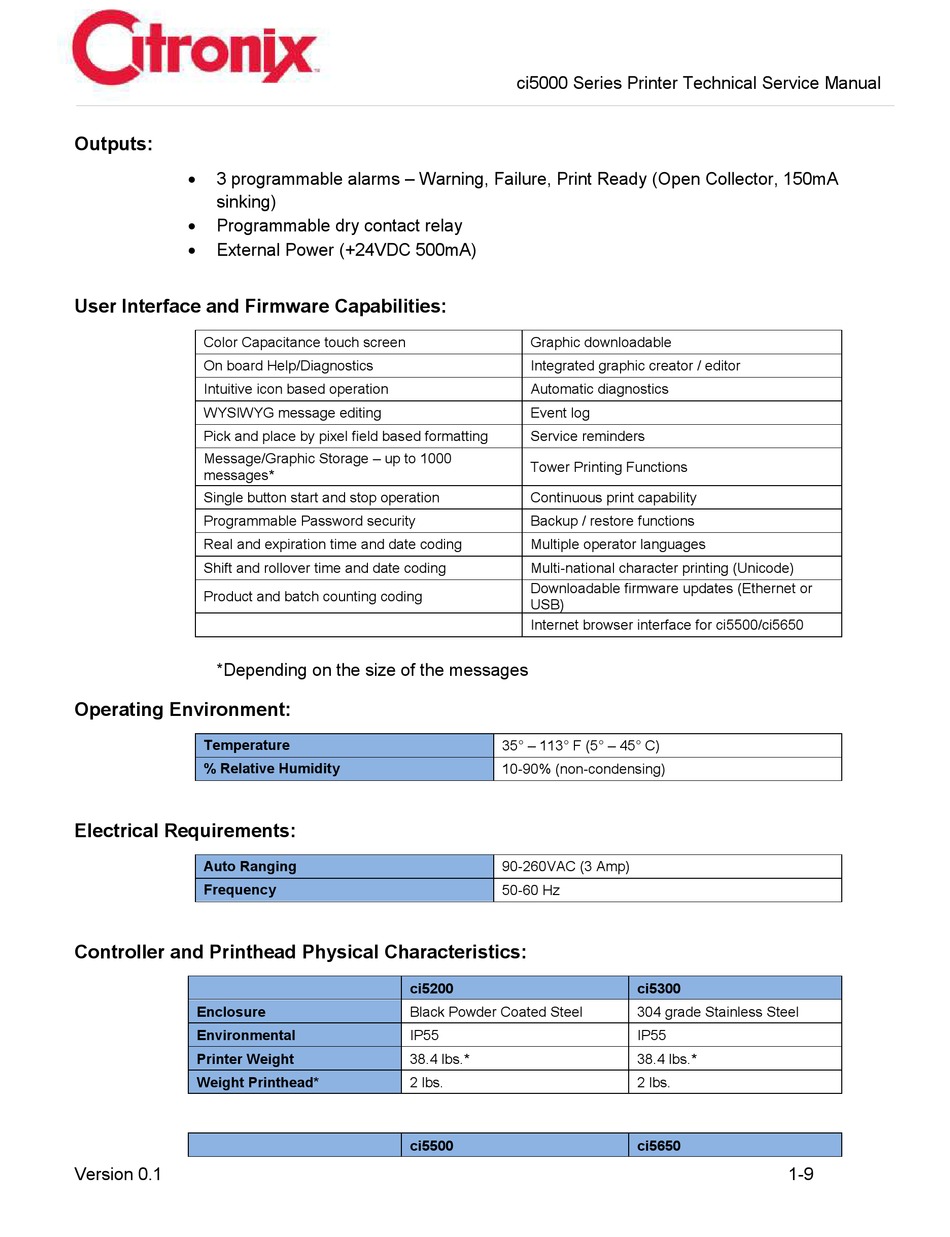

Outputs; User Interface And Firmware Capabilities; Operating Environment; Electrical Requirements - Citronix ci5200 Technical & Service Manual

Outputs:


3 programmable alarms – Warning, Failure, Print Ready (Open Collector, 150mA
sinking)

Programmable dry contact relay

External Power (+24VDC 500mA)

User Interface and Firmware Capabilities:

Color Capacitance touch screen
On board Help/Diagnostics
Intuitive icon based operation
WYSIWYG message editing
Pick and place by pixel field based formatting
Message/Graphic Storage – up to 1000
messages*
Single button start and stop operation
Programmable Password security
Real and expiration time and date coding
Shift and rollover time and date coding
Product and batch counting coding
*Depending on the size of the messages

Operating Environment:

Temperature
% Relative Humidity

Electrical Requirements:

Auto Ranging
Frequency

Controller and Printhead Physical Characteristics:

Enclosure
Environmental
Printer Weight
Weight Printhead*
Version 0.1
ci5000 Series Printer Technical Service Manual
Graphic downloadable
Integrated graphic creator / editor
Automatic diagnostics
Event log
Service reminders
Tower Printing Functions
Continuous print capability
Backup / restore functions
Multiple operator languages
Multi-national character printing (Unicode)
Downloadable firmware updates (Ethernet or
USB)
Internet browser interface for ci5500/ci5650
35° – 113° F (5° – 45° C)
10-90% (non-condensing)
90-260VAC (3 Amp)
50-60 Hz
ci5200
Black Powder Coated Steel
IP55
38.4 lbs.*
2 lbs.
ci5500
ci5300
304 grade Stainless Steel
IP55
38.4 lbs.*
2 lbs.
ci5650
1-9
