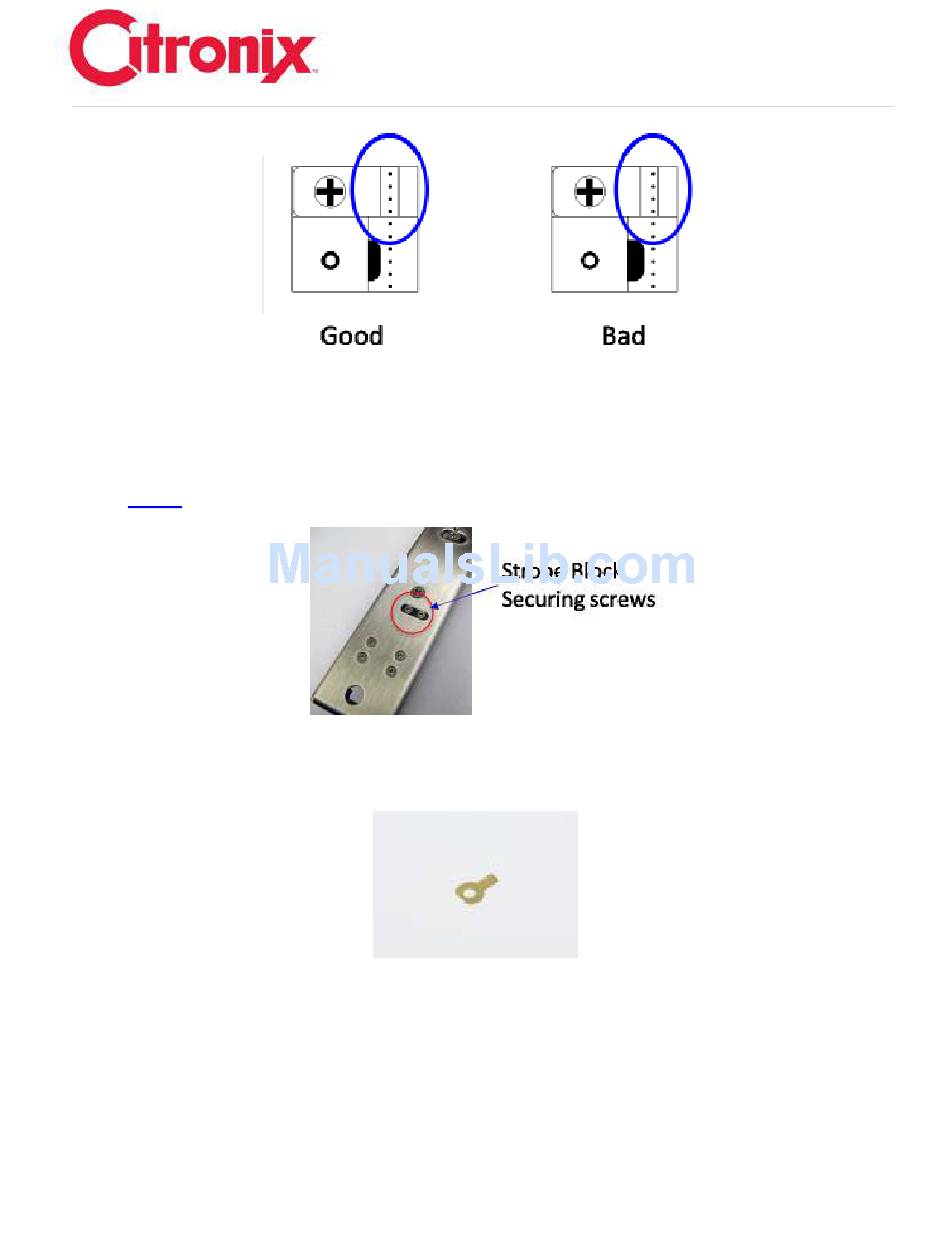

To realign loosen the 2 screws securing the Strobe Block assembly and move to center then tighten
screws. See picture below.
NOTE: do not overtighten the screws. This can cause damage to the Printhead chassis.
Gutter Error
Version 0.1
ci5000 Series Printer Technical Service Manual
Fig 1
Fig 2
Fig 3
6-25
